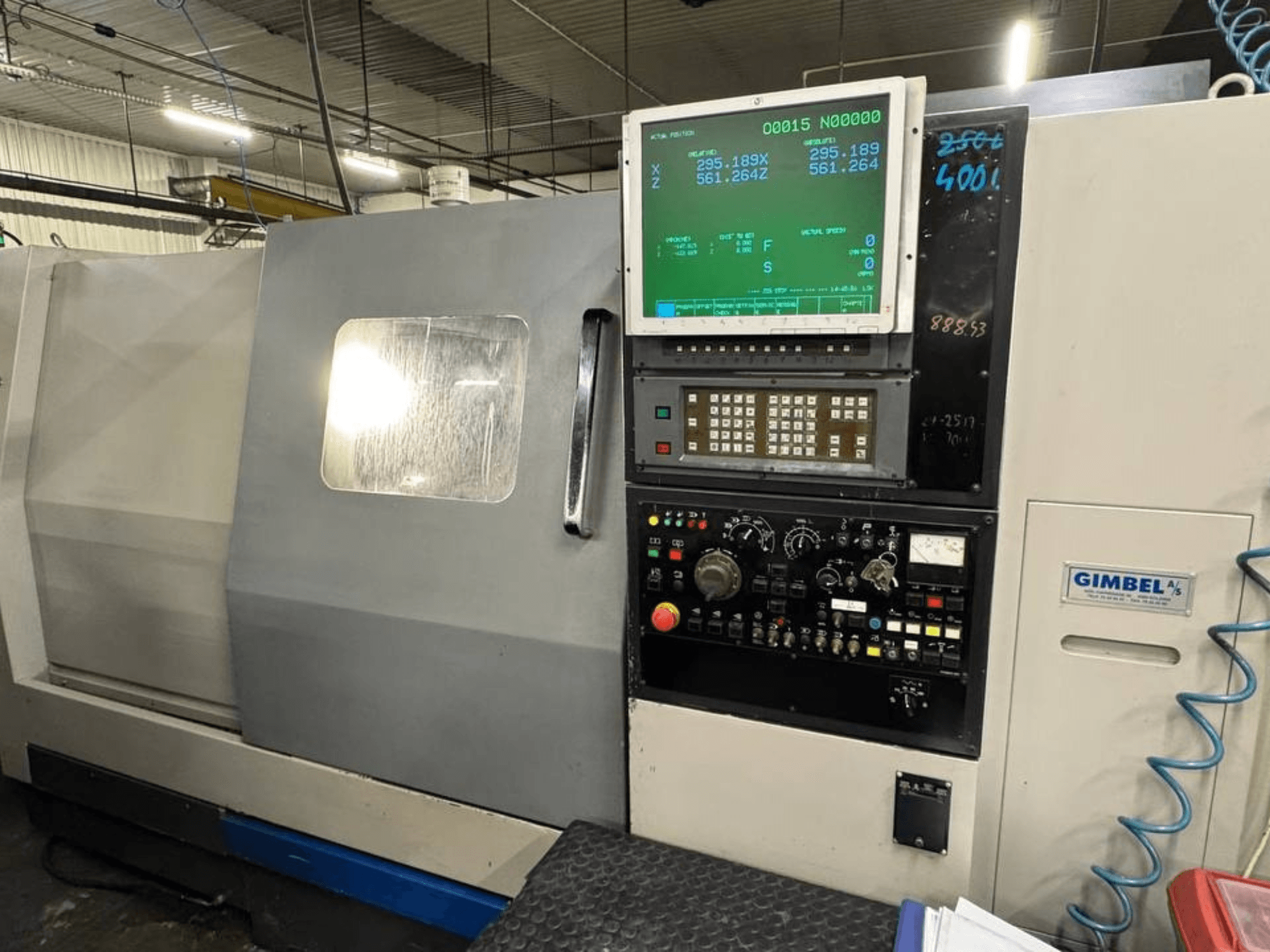

Horizontal CNC lathe with tailstock manufactured in 2004. This Takisawa TS-35 features a maximum turning diameter of approximately 400 mm and a turning length of 1000 mm. It is equipped with a powerful 26.1 kW main spindle motor and a chuck size of 304 mm. If you are looking to get high-quality turning capabilities, consider the Takisawa TS-35 machine we have for sale. Contact us for further details.
Overview
- brand: Takisawa
- year: 2004
- MODEL: TS-35
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Takisawa TS-35
Control Unit
- Control Brand: FANUC
- Control Model: 18-TA
Dimensions
- Machine Height: 2083 mm
- Machine Length: 4191 mm
- Machine Weight: 8800 kg
- Machine Width: 1971 mm
Movement
- Number of Axes: 2
- X-axis Travel: 180 mm
- Z-axis Travel: 1000 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 26.1 kW
- Spindle Speed: 2500 RPM
Additional Information
Distance between centers: 1000 mm
Swing over bed: approx. 400 mm
Maximum turning diameter: approx. 350–400 mm
Maximum turning length: 1000 mm
Spindle:
Chuck size: 304 mm
Spindle bore / bar capacity: approx. 104 mm
Turret/tooling:
Number of stations: 10
Boring bar capacity: approx. 40–50 mm
Tailstock: Manual quill for long shaft support
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
