Takisawa TT-2600G

Photo Gallery

Takisawa - TT-2600GDE-TUR-TAK-2017-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Takisawa TT-2600G Lathe

Show in original language

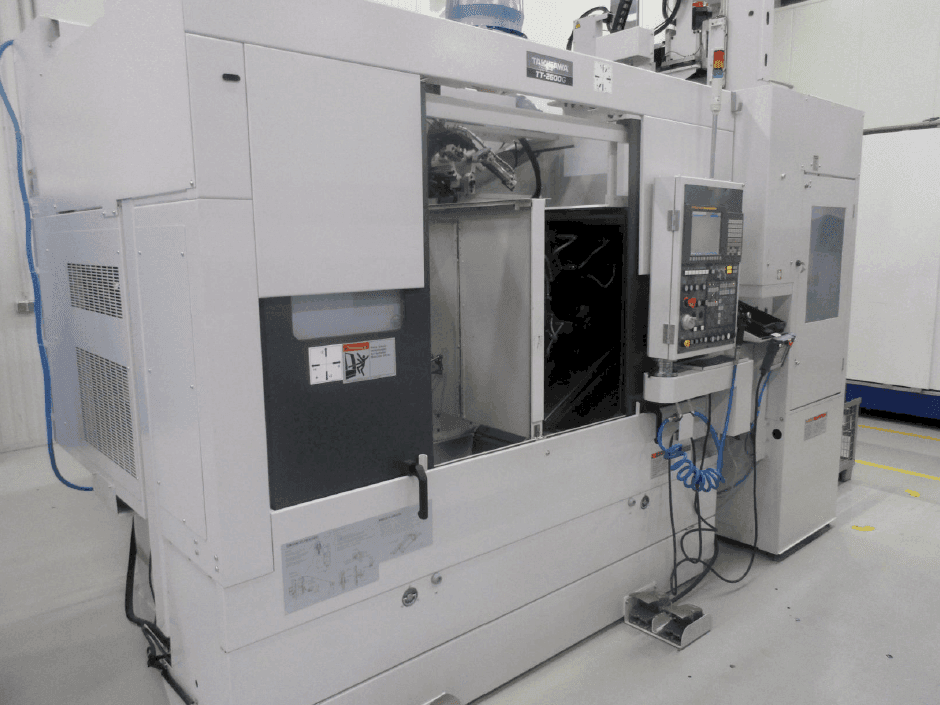

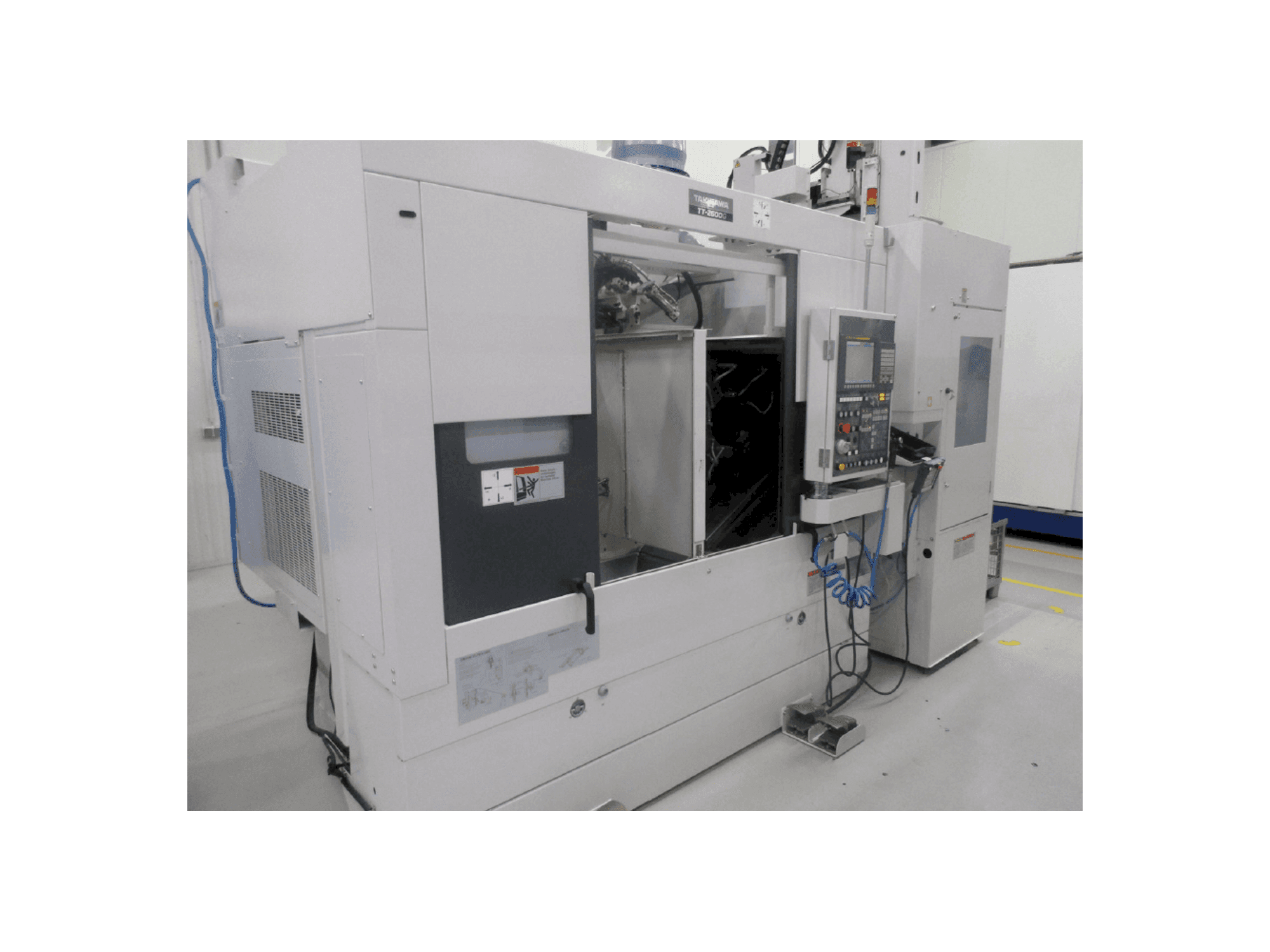

This Takisawa TT-2600G Lathe was built in Japan in the year 2017. It has a working record of only 5846 production hours. It is operated through a Fanuc Series Oi-TD control unit. This machine can work with a spindle speed up to 3200 rpm. It presents very good conditions.

Overview

brand: Takisawa
year: 2017
MODEL: TT-2600G
production hours: 5846
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Takisawa TT-2600G

Control Unit

Model: Series Oi-TD
Brand: FANUC

Main drive

Spindle speed range: 3200 1/MIN
Spindle motor power: 11/15 kW

Media

Main electronic connection: 400 V - 50/60Hz

Additional Information

Additional equipment

Including one set of tool holders without cutting tools.

Machine Benefits

Technical Machine Benefits

Portal loader type a with 1 magazine on the right, gripper hand with 2 chucks for workpieces with maximum 2x 8kg
1 piece 14-fold workpiece pallet magazine, workpiece diameter max. 200mm, loading weight max. 70kg per pallet stacking height per pallet max. 400 mm
Turning station with 2 pieces 3 jaw chucks, automatic loading and unloading door (each spindle) storage chute for test part
Operating pressure 7-10 bar, piston area 48 cm/2
Tractive force at 40 bar 19 kn

Extra Information

The machine is sold without clamping devices.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
