STYLE - 510NL-TUR-STY-2024-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used STYLE 510 Horizontal Lathe For Sale | gindumac.com

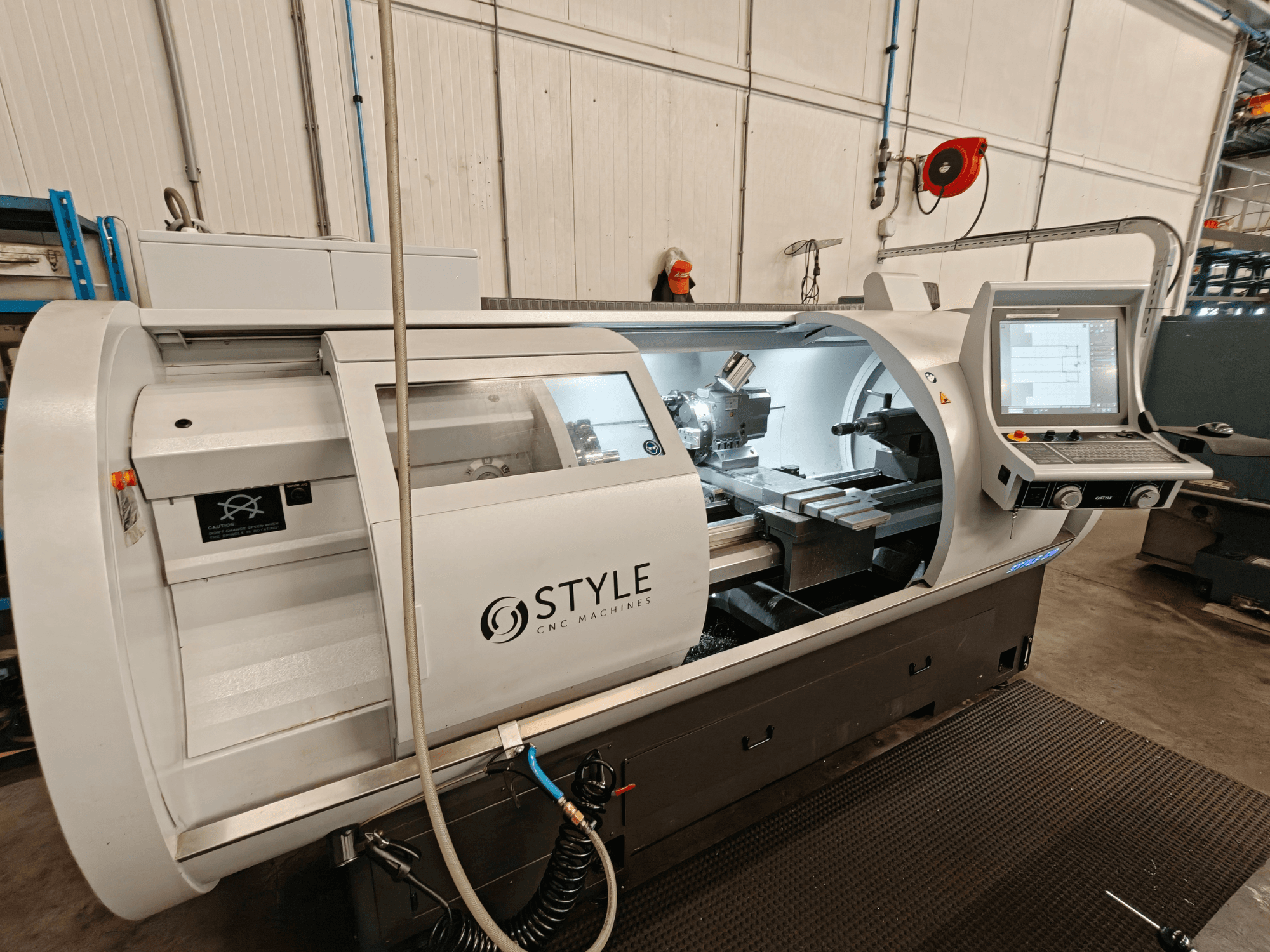

Horizontal turning machine manufactured in 2024. This STYLE 510 features a turning diameter over bed of 510 mm and a distance between centers of 1350 mm. It has a maximum spindle speed of 2500 rpm and a rapid traverse of 8 m/min. If you are looking to get high-quality turning capabilities, consider the STYLE 510 machine we have for sale. Contact us for further details.
Overview
- brand: STYLE
- year: 2024
- MODEL: 510
- production hours: 234
- application type: Turning
- Location: Netherlands
- machine type: Horizontal Turning Machine
- Available from: 30/06/2026
- control unit brand:
Technical Information - STYLE 510
Dimensions
- Machine Height: 1800 mm
- Machine Length: 3200 mm
- Machine Weight: 2700 kg
- Machine Width: 1800 mm
Movement
- Number of Axes: 2
- X-axis Travel: 510 mm
- Z-axis Travel: 1350 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Speed: 2500 RPM
Additional Information
Turning capacity
Turning diameter over bed: 510 mm
Turning diameter over support: 300 mm
Distance between centers: 1350 mm
Maximum weight between centers: 600 kg
Bed width: 330 mm
Main spindle
Main spindle passage: 80 Ø mm
Spindle recording: D1-8
X and Z axis
Rapid traverse: 8 m/min
Feed: 2 m/min
Loose head (tailstock)
Pinole: 75 / 802 Ø mm
Stroke pinole: 160 mm
Recording pinole: 5 MK
Additional equipment
Tools and equipment (not included; can be bought for an additional amount)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
