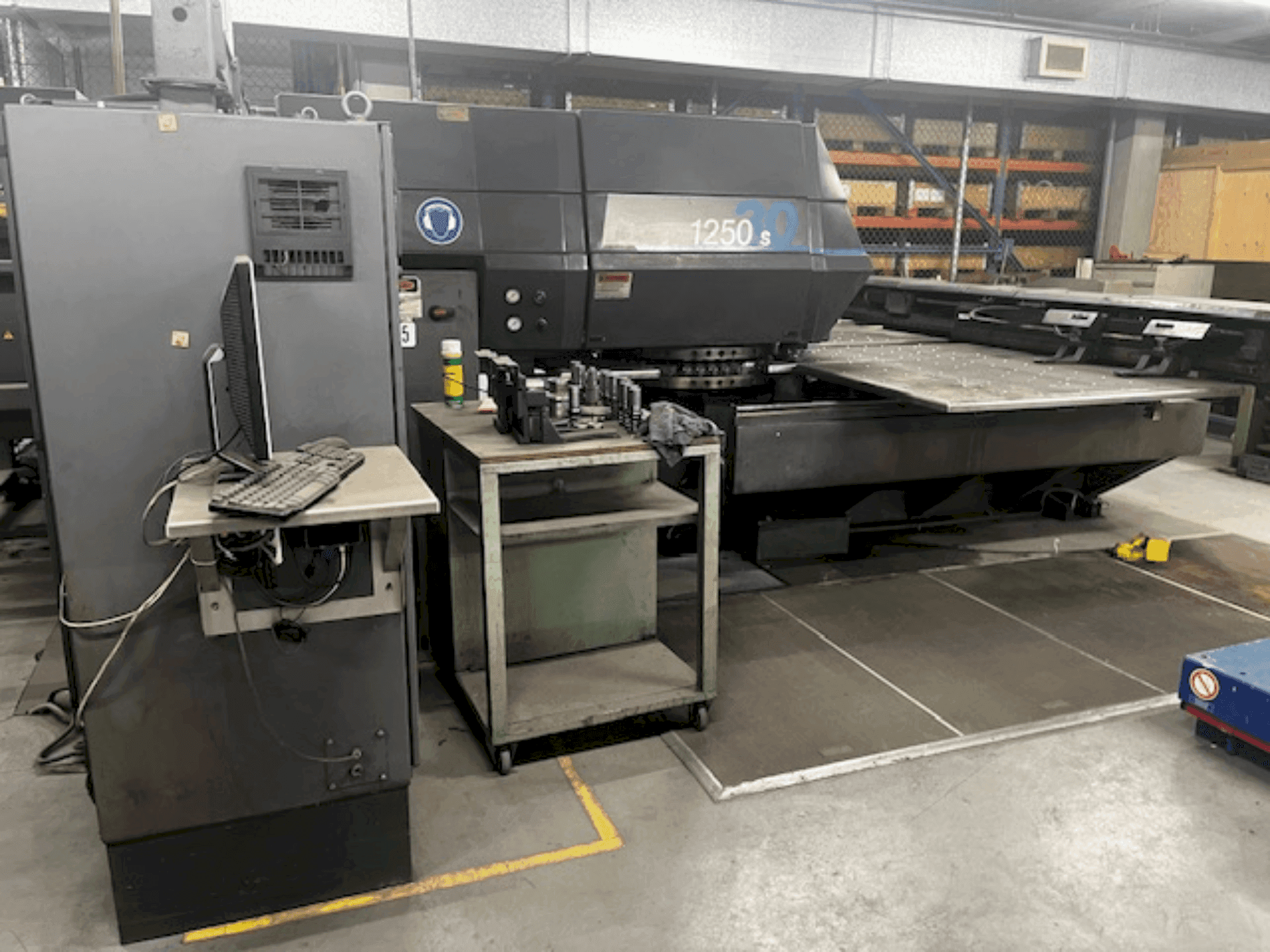

STRIPPIT 1250SL/30

Photo Gallery

STRIPPIT - 1250SL/30NL-PUN-STR-1996-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used STRIPPIT 1250SL/30 For Sale | gindumac.com

Show in original language

This STRIPPIT 1250SL/30 was manufactured in 1996. It features a robust 30 metric tonne punching capacity and a turret drive with 33 stations. The machine can handle a maximum stock size of 1,524 x 3,048 mm and thickness up to 83.8 mm. Ideal for high-speed precision with a maximum axis travel speed of 63,500 mm/min. Contact us for more information about this machine.

Overview

brand: STRIPPIT
year: 1996
MODEL: 1250SL/30
application type: Punching
Location: Netherlands
machine type: CNC Punching Machine

Technical Information - STRIPPIT 1250SL/30

Dimensions

Machine Depth: 5740 mm
Machine Height: 2387 mm
Machine Weight: 10115 kg

Additional Information

Machine Benefits

Technical Machine Benefits

Normal speed press drive: 3556 mm/min
Low speed press drive: 7620 mm/min
Accuracy: ± 0. 076 mm

Extra Information

Movement Maximum travel 1 Axis: 1346 mm Maximum Axis Travel Speed: 63500 mm/min Feed Resolution: 0.0025 mm Table Maximum Stock Size Normal: 787 x 1143 mm W/Progressive Mode: 1143 x 1524 mm Normal w/extended range work clamps: 1524 x 1524 mm W/Prog. move and extended range work clamps: 1524 x 3048 mm Maximum stock thickness: 83.8 mm Turret Turret Drive Bi-Directional: 33 Stations One Station Index Time: 1.5 sec Tools Hole Punching Capacity: 88.9 mm Diameter in 3.2 mm Mild Steel 41.3 mm Diameter in 6.35 mm Mild Steel 28.6 mm Diameter in 9.5 mm Mild Steel Hits per minute on 25.4 mm centers: 213 HPM Machine-Specific Data Nibbler nibbling Rate: Normal speed press drive: 3556 mm/min Low speed press drive: 7620 mm/min Accuracy: ± 0.076 mm Press Drive Options 12/20 Ton: 1.3 kW Motor 830Q SPM (Medium Speed): 1.7 kW 40/80 ton wall: 1.1 kW Motor 570Q SPM (Low Speed): 1.3 kW Motor 360Q SPM (High Speed): 2.6 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
