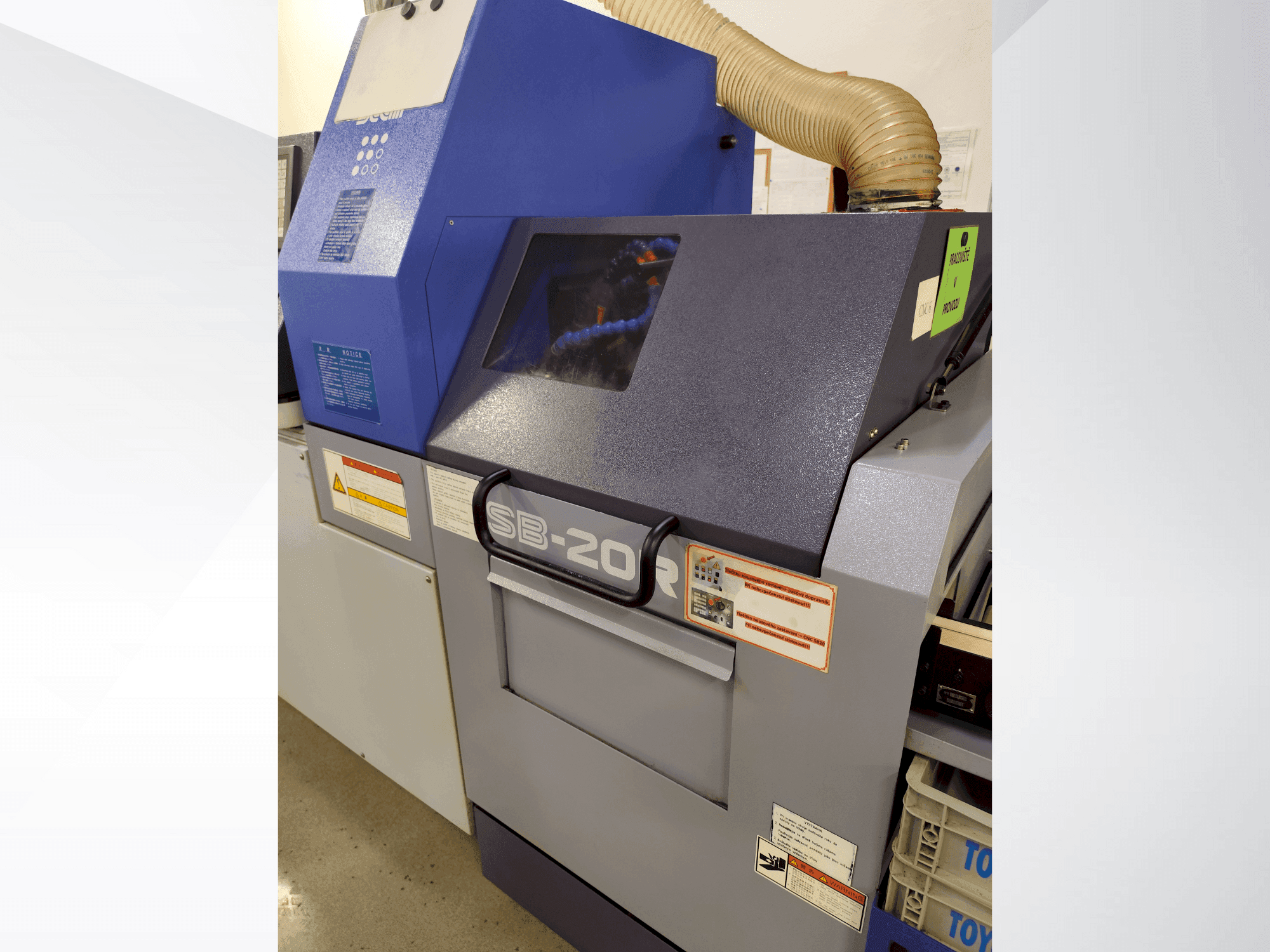

Star - SB-20R type NCZ-TUR-STA-2014-00001

Additional equipment

• - Part ejection safety lock / Part ejection device (spring type) / Blow-off device for guide bushing and sub-spindle / Standalone coolant tank with level monitoring / Probe / Automatic central lubrication unit with level monitoring / Interface for bar feeder / RS232C interface / RJ45 / USB
• - The machine was used for serial production of small parts with extreme precision from standard relatively soft material. The machine was not dynamically stressed, production was carried out on oil. Service was regular, with almost continuous replacement of bearings, all in perfect condition.
• - MBC (BROXTEC) chip conveyor / Workpiece conveyor belt / FMB Minimag 3200 bar feeder (⌀ 8)

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - C-axis on the main spindle and sub-spindle
  • - Clamping device on the main spindle and sub-spindle / collet clamping sleeve for main spindle and sub-spindle f25
  • - 6-position tool holder 12x12mm / 4-position tool holder without drill clamping
  • - Sub-spindle with part picking capacity of 20mm (23mm)
  • - 5-spindle unit for cross drilling with driven tools / drive unit for driven tools for rear-side machining with 4x er16 drill holders /tool breakage safety device
