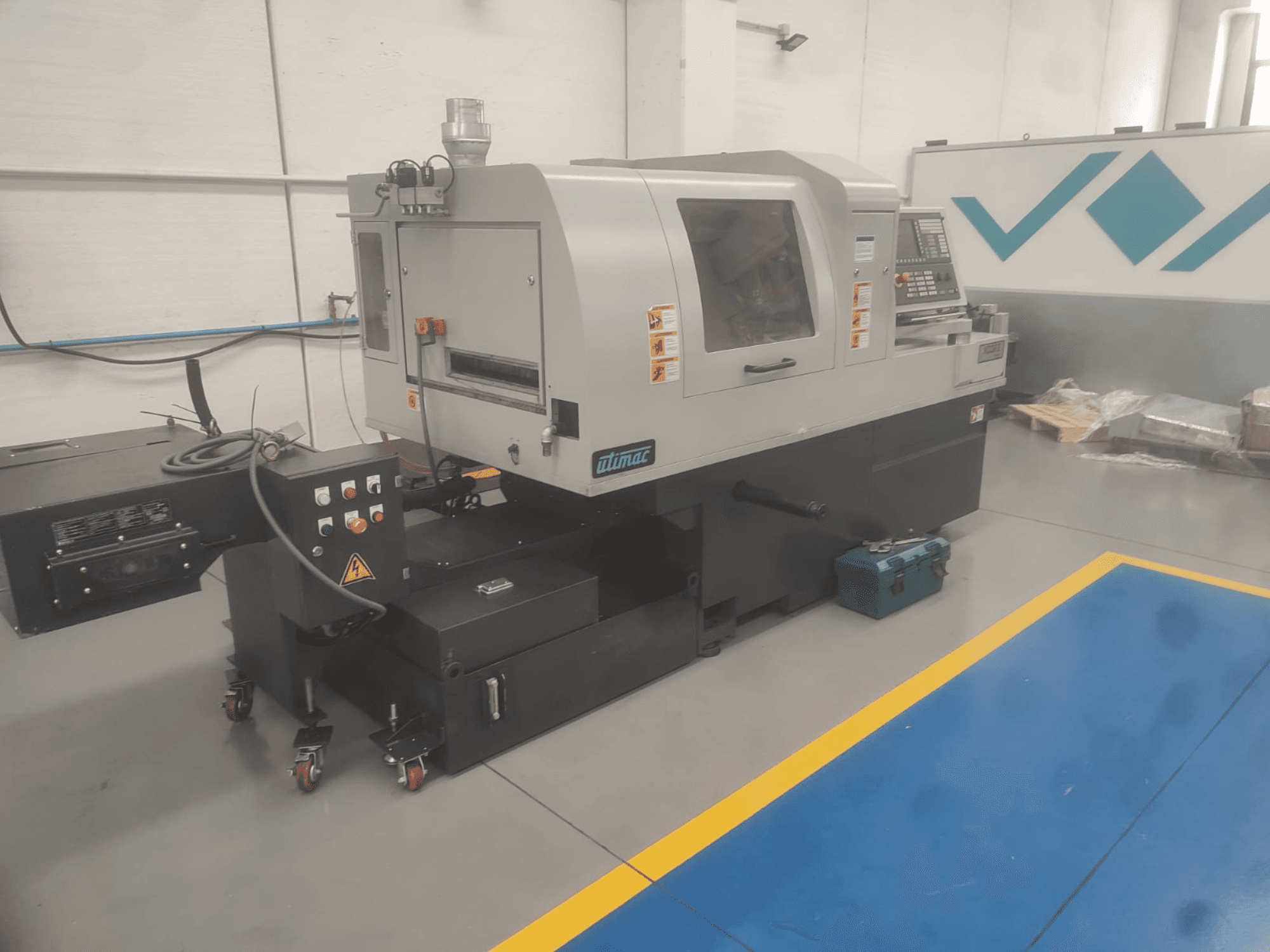

UTIMAC - ISOLA XD 38 II Siemens IT-TUR-UTI-2016-00001

Main spindle:

• Max. bar capacity: 38 mm (42 mm optional)

• Stroke (versions): H = 320 mm; N = 90 mm; NH = 90 / 160 mm

• Rapid traverse: 32 m/min

Counter spindle:

• Max. bar capacity: 38 mm

• Stroke: 280 mm

• Speed: 7,000 rpm

• Motor power: 11 kW

Vertical tool plate axes X1–Y1:

• Turning tools: 5 (16x16)

• Standard rotating tools: 5

• Rotating tools for B-axis: 4

• Fixed spindle stations: 5

• Motorized tool power: 2.6 kW

• Motorized tool speed: 6,000 rpm

• Rapid traverse: 32 m/min

B-axis:

• Angular adjustment: 145° (+90° / -55°)

• Number of tools: 6 (3 ER16 + 3 ER11)

• Motorized tool speed: 6,000 rpm

• Motor power: 1.9 kW

HY2 version:

• Tool stations: 8 (4 fixed + 4 motorized)

Coolant tank capacity: 230 L
