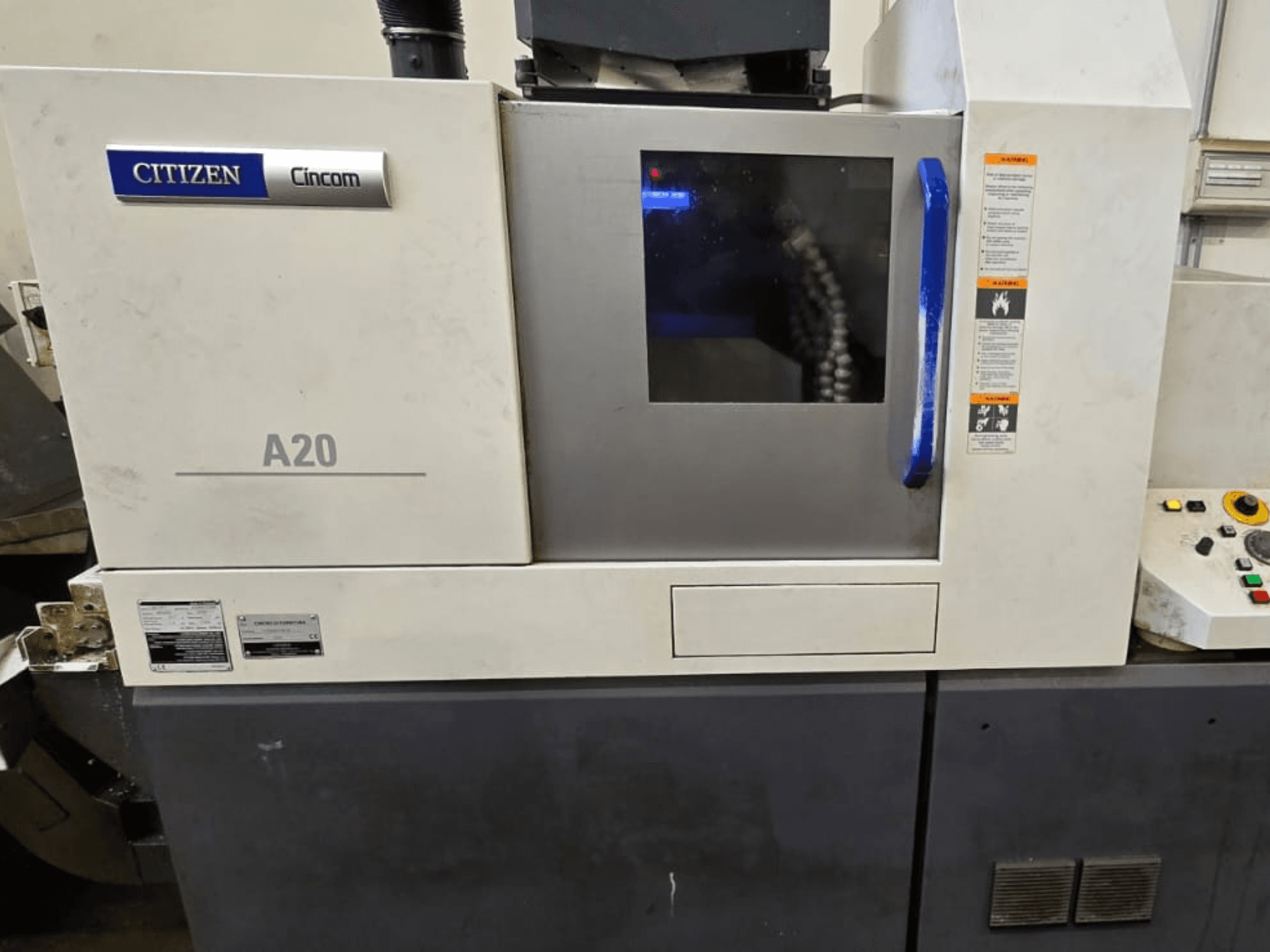

Citizen - A20IT-TUR-CIT-2018-00001

• Condition: Under power, visible in operation

• Spindle hours: approx. 7,000 h

• Axes/configuration:

  • Total axes: 6 (5 linear: X1, Y1, Z1, X2, Z2 + C-axis)

  • C-axis: on main and counter spindle, resolution 0.001°, 90° index 0.27 s

• Working capacity:

  • Max bar diameter: 20 mm standard; Large Bore option installed: 25.4 mm (1")

  • Max machining length per chucking: 200 mm with synchronized guide bush

  • Max projection from counter spindle: 80 mm

• Main spindle:

  • Max speed: 10,000 rpm (limited to 8,000 rpm with 25.4 mm bore by parameter)

  • Motor power: 2.2 / 3.7 kW

  • Max drilling: Ø12 mm

  • Max tapping: M8

• Counter spindle:

  • Max speed: 8,000 rpm

  • Motor power: 1.1 / 1.5 kW

  • C-axis: Yes, resolution 0.001°

• Tooling system:

  • Total tool positions: 22 + α

  • Live tooling: Yes

  • Driven tools: 4

  • Driven tool motor power: 0.75 kW

  • Max live tooling speed: 8,000 rpm

• Tooling layout:

  • Gang tool post: 5 turning tools, 16 x 16 mm

  • Cross driven tools: 4 x ER16

  • Front tool positions: 4 fixed driven tools + 2 double ER11 positions

  • Rear tool positions: 3 fixed tools + 1 ER11 driven tool on counter spindle

  • Boring tool diameter: Ø25.4 mm on 3 positions

• Travels:

  • X1: 55 mm; Y1: 308 mm; Z1: 200 mm

  • X2: 55 mm; Z2: 200 mm

• Feed/accuracy:

  • Rapid traverse: 30 m/min (X/Y/Z)

  • Linear resolution: 0.0001 mm

  • Rotary resolution: 0.001°

• Fluids:

  • Oil tank capacity: 180 L

• Installation data:

  • Power supply: 200 V ±10%, 50/60 Hz

  • Power requirement: approx. 13 kVA (15 kVA with high pressure coolant)

  • Air supply: 0.5 MPa, 100 NL/min

• Installed options:

  • Large Bore option S393 with 25.4 mm (1") spindle bore

Additional equipment

• Bar feeder: LNS EXPR S3 320 Z, 3 m capacity, up to Ø25 mm

• High pressure coolant system: Citizen 1.5 MPa, 15 L/min, 50 μm filter

• Chip conveyor: Hinged type, rear discharge

• Long parts discharge

• Extraction unit (mist/fume)
