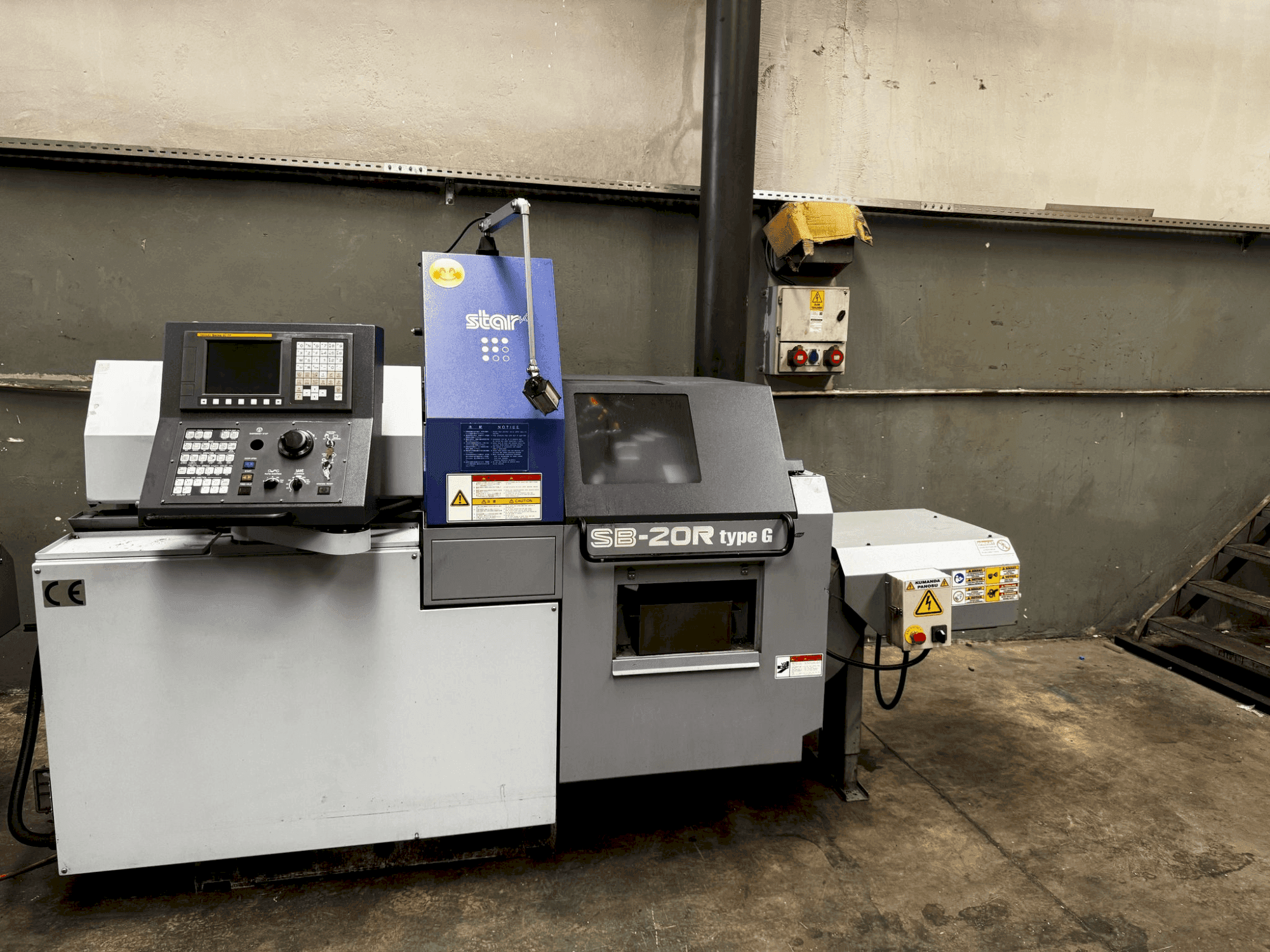

Front view of Star SB-20R type G machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Star SB-20R type G

Photo Gallery

Star - SB-20R type GTR-TUR-STA-2020-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Star SB-20R type G For Sale | gindumac.com

Show in original language

This 7-axis Star SB-20R type G was manufactured in 2020, featuring a Fanuc Oi-TF Plus CNC control and a rapid traverse speed of 35 m/min. It has a coolant tank capacity of 180 liters and can handle a maximum machining diameter of 20 mm. Ideal for precision turning, this machine weighs 1750 kg and has dimensions of 2070 × 1177 × 1760 mm. Consider the opportunity to buy this Star SB-20R type G swiss type turning machine. Contact us for more information.

Overview

brand: Star
year: 2020
MODEL: SB-20R type G
application type: Turning
Location: Turkey
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - Star SB-20R type G

General Data

Measurements width: 1177 mm
Measurements depth: 2070 mm
Measurements height: 1760 mm
Machine weight: 1750 kg

Control Unit

Brand: FANUC
Model: 0i-TF Plus

Main drive

Spindle speed range: 10000 rpm 1/MIN
Spindle motor power: 2.2 kW / 3.7 kW
Number of axis: 7

Turret

Number of turrets: 2

Media

Power consumption: 3.7 kVA

Additional Information

Additional equipment

Units Available: 3

Machine Benefits

Technical Machine Benefits

Rapid traverse speed: 35 m/min (axes: x1, y1, z1, x2, z2)
Linear slide: x1 / y1 axis
Max. Machining diameter: 20 mm (23 mm option)
Max. Headstock stroke: 205 mm
Turning tools: 6 × □ 12 mm (7 × □ 10 mm option)
Drilling tools: 4
Cross-machining tools: max. 5
Coolant tank capacity: 180 liters

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
