Maier ML26 C5Y

Photo Gallery

Rs. 7,451,139

gindumac price

(Ex works)

Get an official quote

Maier - ML26 C5YLT-TUR-MAI-2019-00001

Name: Maier ML26 C5Y
Brand: Maier
SKU: LT-TUR-MAI-2019-00001
Price: 7451139 INR
Availability: InStock

Rs. 7,451,139

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Maier ML26 C5Y For Sale | gindumac.com

Show in original language

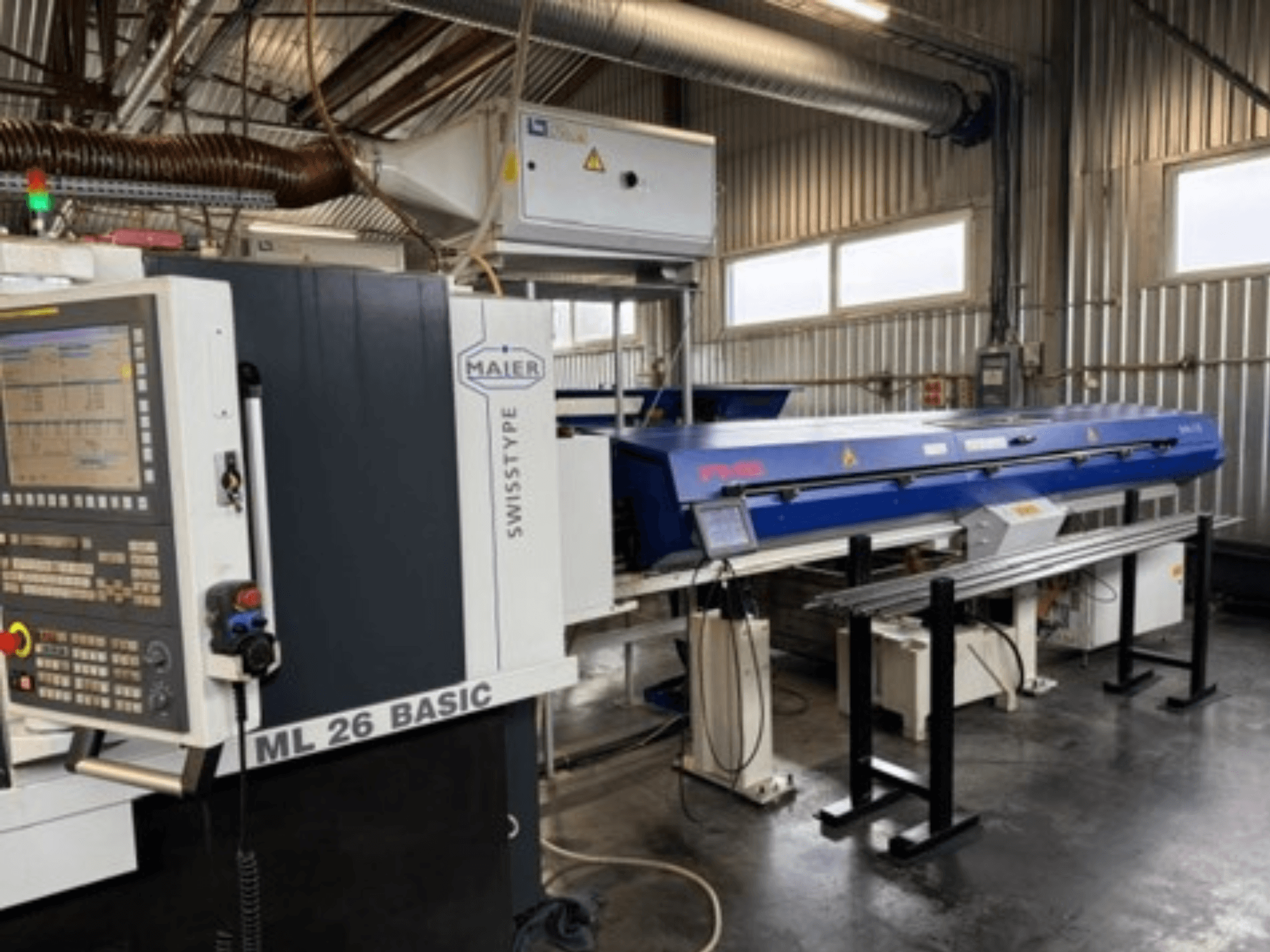

This 8-axis Maier ML26 C5Y were manufactured in 2019. It features a spindle capacity of 26 mm and a rapid carriage speed of 32 m/min. The machine includes a robust coolant capacity of 260 l and is equipped with a bar feeder and extensive tooling package. Three machines available! If you are looking to get high-quality turning capabilities, consider the Maier ML26 C5Y swiss type turning machine we have for sale. Contact us for further details.

Overview

brand: Maier
year: 2019
MODEL: ML26 C5Y
production hours: 20672
application type: Turning
Location: Lithuania
machine type: Swiss Type Turning Machine

Technical Information - Maier ML26 C5Y

Dimensions

Machine Height: 2160 mm
Machine Length: 2350 mm
Machine Weight: 4200 kg
Machine Width: 1550 mm

Movement

Number of Axes: 8

Technical Specification

Counter Spindle: Yes
Max. Bar Diameter: 26 mm
Spindle Power: 7.5 kW
Spindle Speed: 8000 RPM

Additional Information

- Carriage / Rapid Speed: 32 m/min

- Main Spindle Capacity: 26 mm

- Main Spindle Indexing: Mechanical indexing 5°

- Main Spindle Headstock Stroke: 320 mm (Options: 220 mm, 450 mm)

- Main Spindle Power Rating (100% / 60%): 5.5 kW / 7.5 kW

- Main Spindle Collet: 161E

- Counter Spindle Capacity: 26 mm

- Counter Spindle Indexing: Mechanical indexing 5°

- Counter Spindle Max. Travel (Z2): 220 mm (340 mm option)

- Counter Spindle Speed: 0 - 8000 rpm

- Counter Spindle Power Rating (100% / 60%): 5.5 kW / 7.5 kW

- Counter Spindle Collet: 161E

- Guide Bush Model: 451.001 - Coolant Capacity: 260 l / 1.5 bar

- Cross Machining Lathe Tool Holders: 5 pcs. (12x12)

- Driven Tools: 4 pcs.

- Back Machining Tools: 4 pcs. Ø34mm (driven)

- Back Machining Y2 (Option): 4 pcs. Ø34mm (fixed), 4 pcs. Ø34mm (driven)

- Front Machining Tools: 5 pcs. (fixed)

- Power On Time: 31,849 h 23 min

- Cutting Time: 13519 h

- Part Total Count: 1,052,178 pcs

- Accessories: Bar feeder / loading magazine (FMB), oil mist extractor (LTA), 2 x live tools, extensive tooling package included

- Total Power: 17.3 kW

- Voltage: 400 / 230 / 24 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
