Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
STANKO - Fresa a PortaleIT-MIL-STA-2016-00001
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- STANKO Fresa a Portale Milling Machine

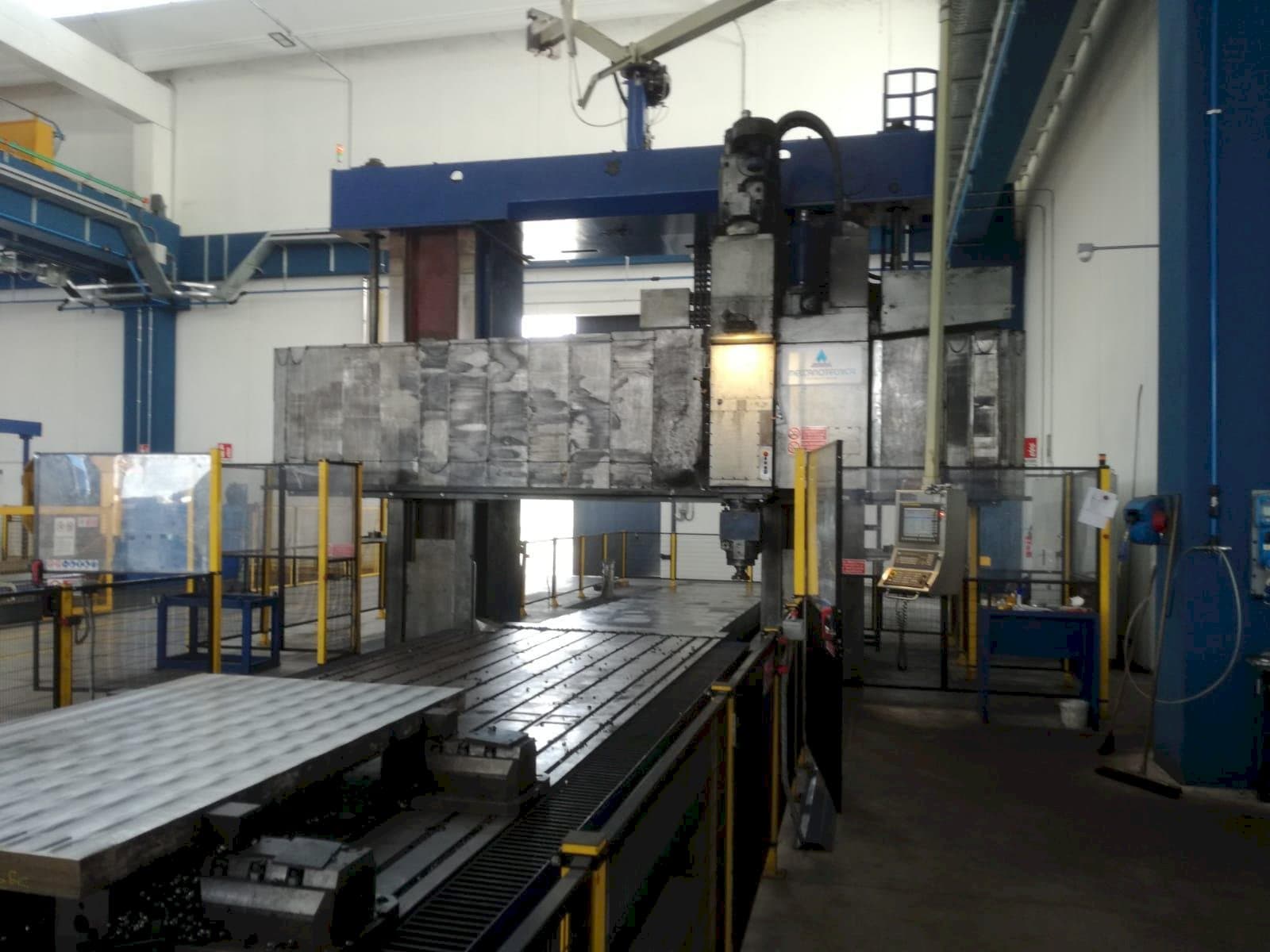

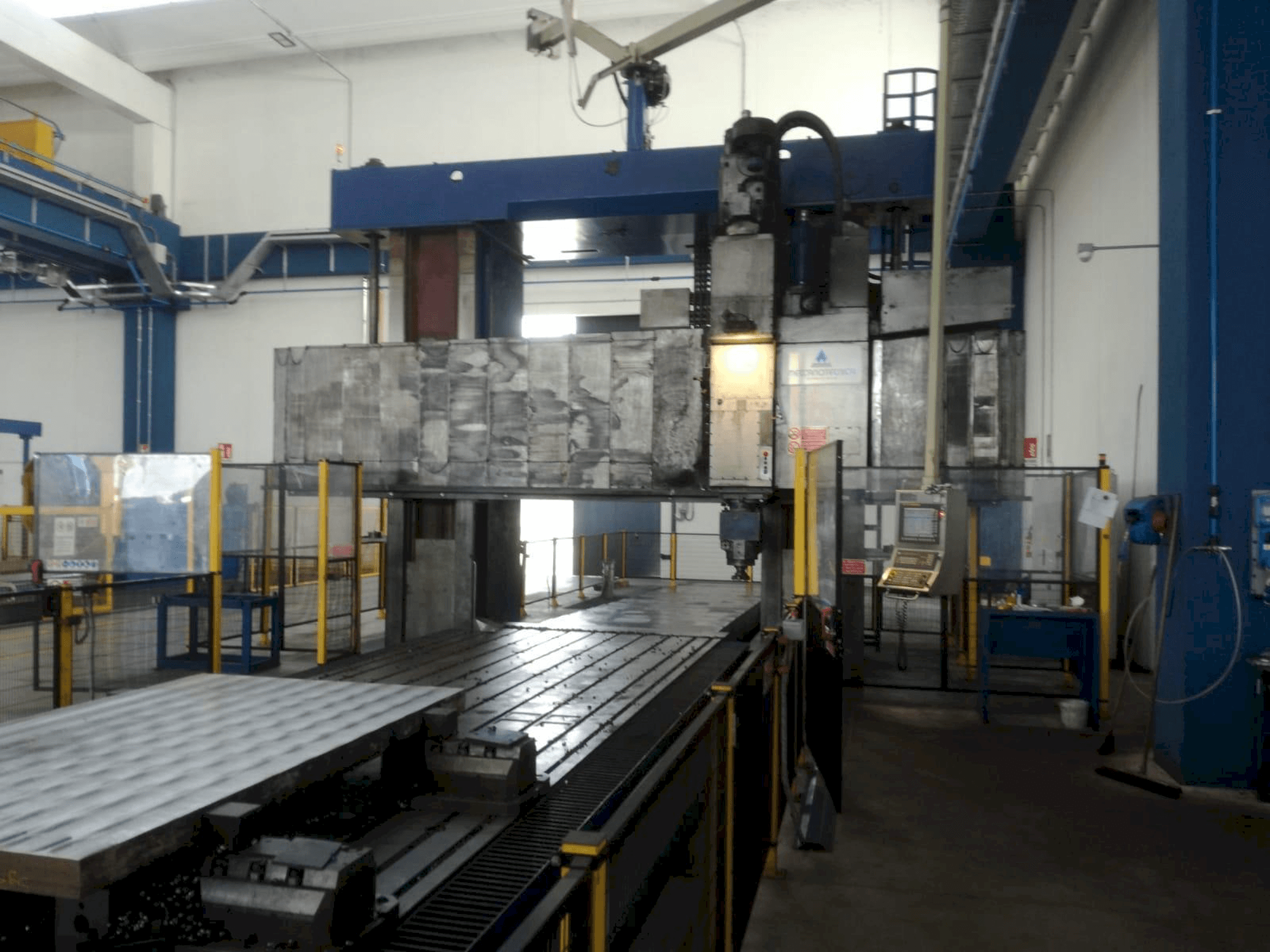

This STANKO Fresa a Portale Milling Machine was manufactured in the year 2016. It is equipped with a Fanuc Series control unit.
Overview
- brand: STANKO
- year: 2016
- MODEL: Fresa a Portale
- application type: Milling
- Location: Italy
- machine type: Gantry Milling Machine
- availability: Sold
- control unit brand: FANUC
Technical Information - STANKO Fresa a Portale
General Data
- Measurements width: 21700 mm
- Measurements depth: 8850 mm
- Measurements height: 7435 mm
- Machine weight: 65000 kg
Control Unit
- Model: Series
- Brand: FANUC
Movement
- X-AXIS Movement: 8120 mm
- Y-AXIS Movement: 790 mm
- Z-AXIS Movement: 3280 mm
Table
- Outer length: 8000 mm
- Outer width: 2500 mm
Tools
- Type of tool holder: ISO 60
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Alessandro Martini
Payment Terms
Payment in advance
Asset Financing
