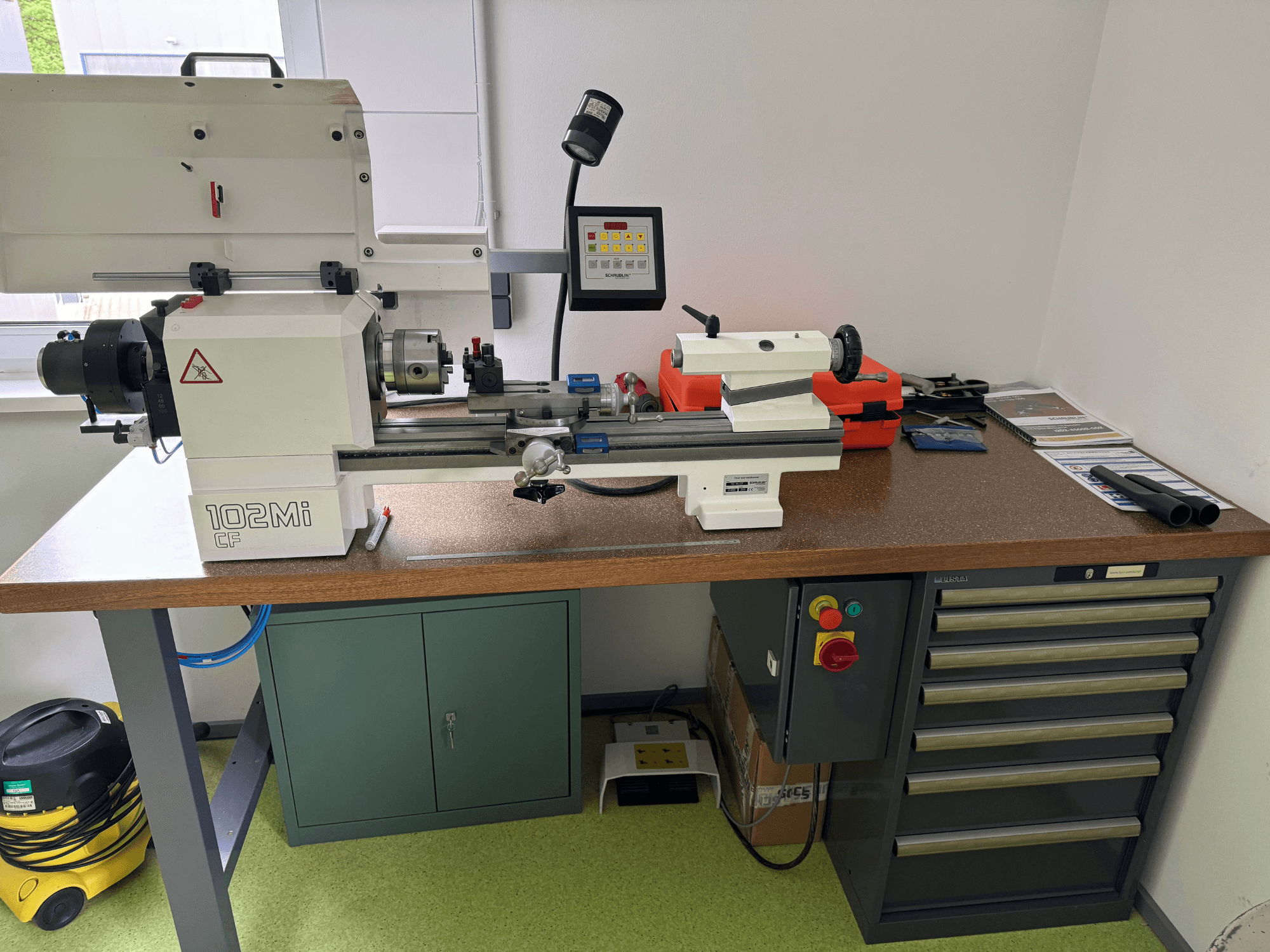

Horizontal turning machine manufactured in 2019. This SCHAUBLIN 102Mi W25 features a W25 spindle nose and an integrated motor headstock. It includes a pneumatic clamping device and a Tripan-111S quick-change tool holder system. The machine is equipped with a 3-jaw chuck and a tailstock with a rotating center. If you are looking to get high-quality turning capabilities, consider the SCHAUBLIN 102Mi W25 machine we have for sale. Contact us for further details.
Overview
- brand: SCHAUBLIN
- year: 2019
- MODEL: 102Mi W25
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand:
Technical Information - SCHAUBLIN 102Mi W25
Movement
- Number of Axes: 2
- X-axis Travel: 150 mm
- Z-axis Travel: 240 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
Additional Information
Spindle nose: W25
Headstock: Integrated motor
Mounting: Mounted on workbench (Version CE)

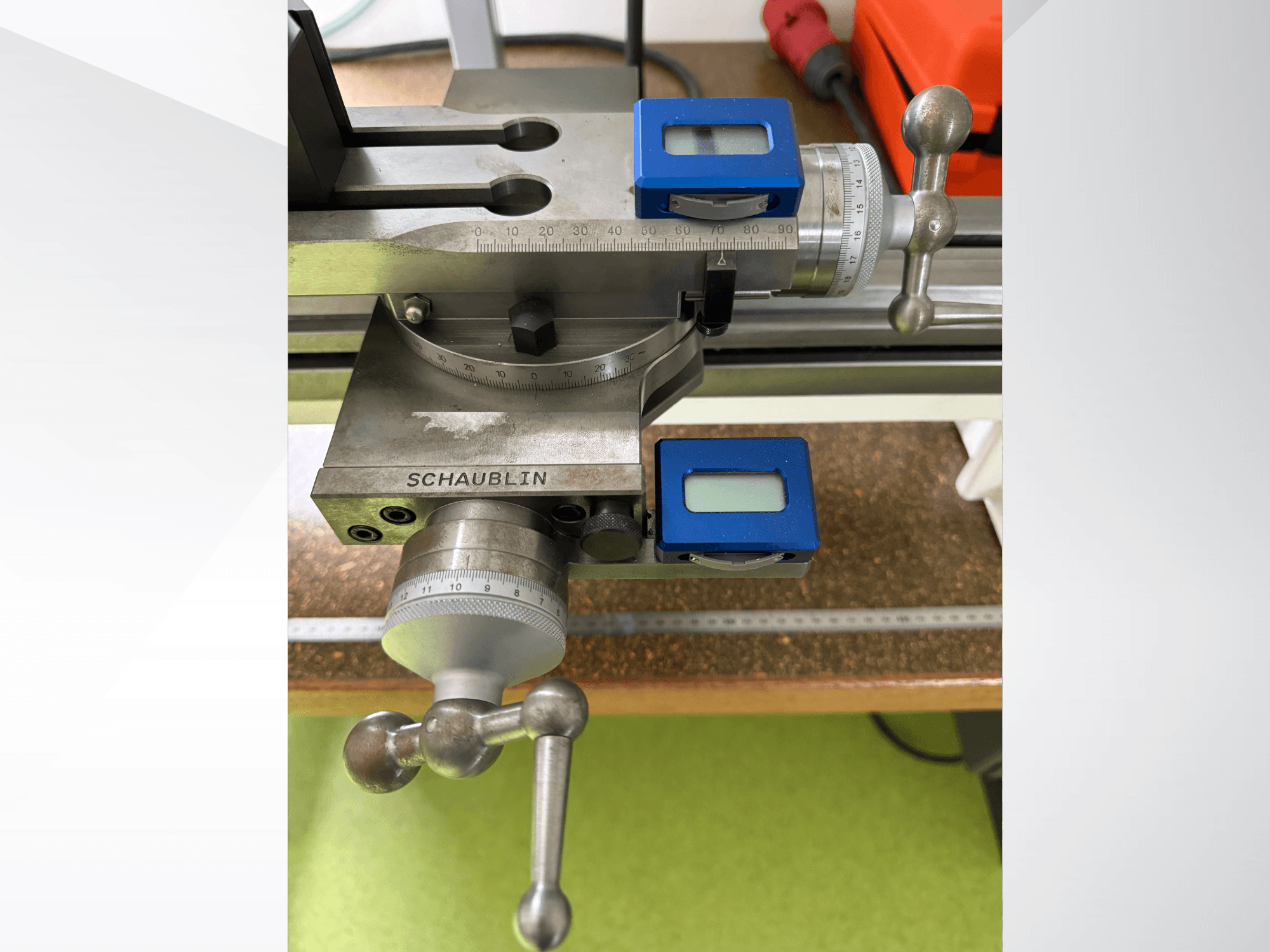

Cross-slide: Crank cross-slide with digital measurement device
Tailstock: Morse Taper 2
Color: RAL7015 / RAL9010
Additional equipment
Workbench: 2000 x 800 x 900 mm
Lista drawer cabinet: 564 x 725 x 850 mm
Pneumatic clamping device W25 with graphite distributor
Tripan-111S quick-change tool holder system
Boring bar holder, 30° angled, max Ø12 mm
3-jaw chuck W25/Ø100 (cast iron, manual)
Tailstock accessory: Rotating center 60°, Ø18 mm (Gepy)
Collet set W25 (0.5–25 mm, 50 pieces)
Mebiflex 70 lamp
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
