Romi C 510

Photo Gallery

Romi - C 510NL-TUR-ROM-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

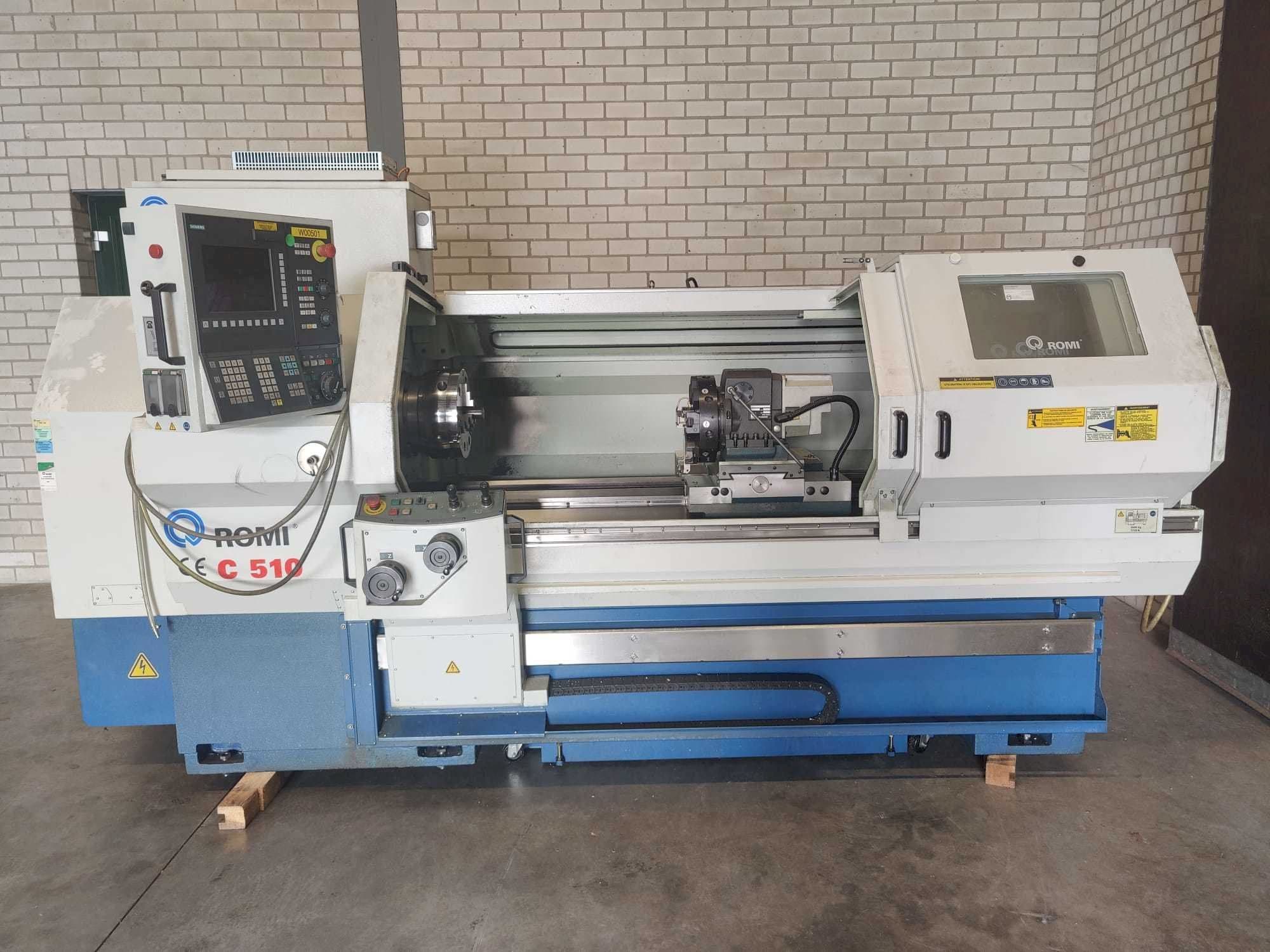

This Romi C510 Lathe was manufactured in 2011 in Brazil. It is operated through a SIEMENS 802D sl control unit. This machine incorporates a spindle speed up to 3000 rpm, and a distance between centers of 1500 mm. Including on photos displayed tool holders, excluding cutting tools.

Overview

brand: Romi
year: 2011
MODEL: C 510
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - Romi C 510

Control Unit

Model: 802D sl
Brand: SIEMENS

Main drive

Spindle speed range: 3000 1/MIN
Spindle motor power: 11 kw

Additional Information

Machine Benefits

Technical Machine Benefits

Center height: 260 mm
Distance between centers: 1500 mm
Diameter above the bed: 520 mm
Turning diameter above the cross slide: 255 mm
Bed width: 340 mm
Max spindle passage: 65 mm
Rapid traverse mm/min: 10,000
Pinole diameter: 80 mm
Displacement: 130 mm
Including on photos displayed tool holders, excluding cutting tools.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
