RÖDERS RXP 801

Photo Gallery

RÖDERS - RXP 801ES-MIL-ROD-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Röders RXP 801 Milling Machine

Show in original language

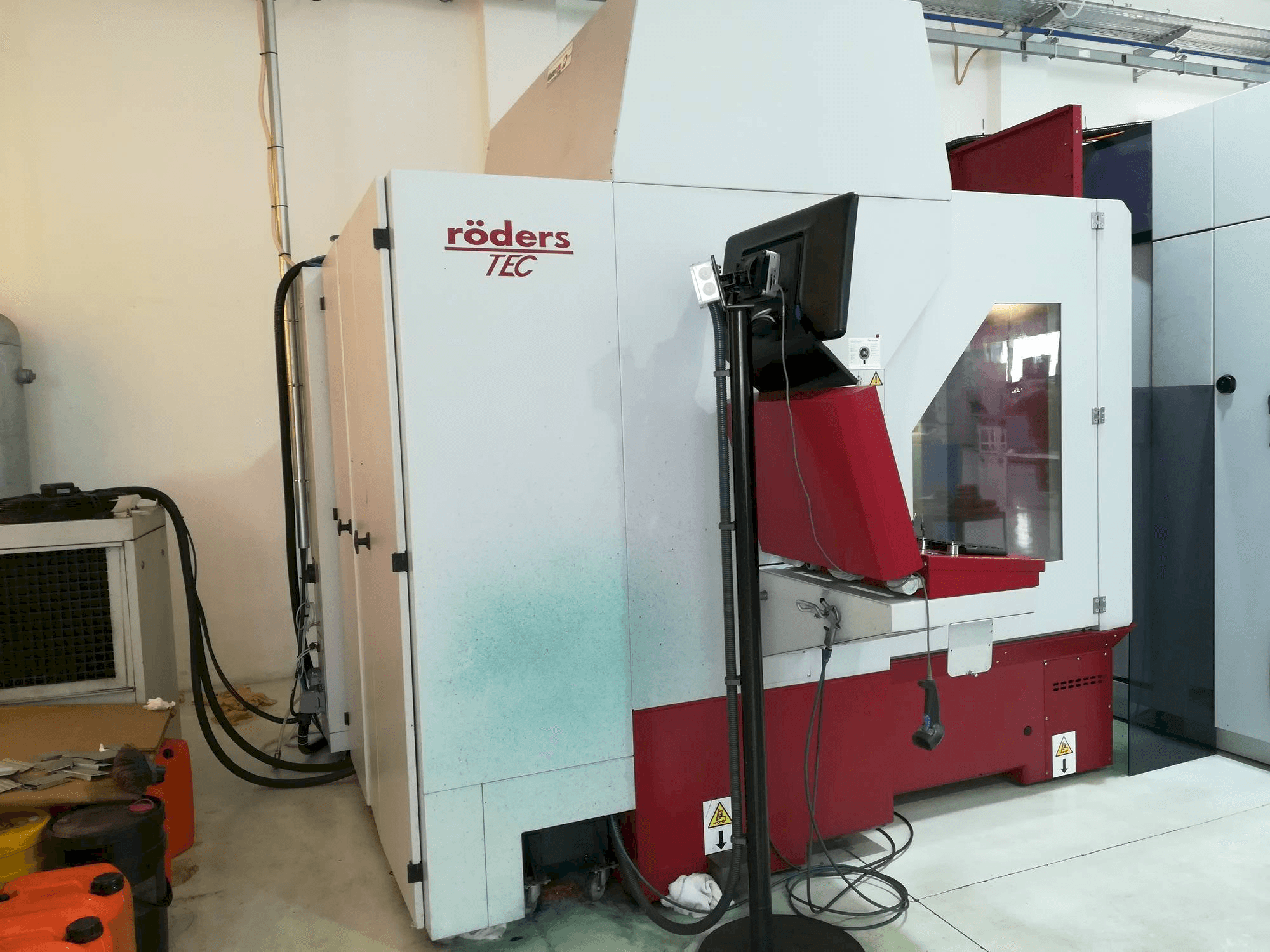

This Röders RXP 801 Milling Machine was built in 2013 in Germany. It is operated through a Röders RMS6 control unit. This machine can work with a spindle speed between to 100 - 40000 rpm. It counts with a 1-axis NC-turntable direct drive RTT1 360º, and a power Chuck P, d=150. Several additional equipment is included, which can be appreciated complete in the document below the page.

Overview

brand: RÖDERS
year: 2013
MODEL: RXP 801
application type: Milling
Location: Spain
machine type: Gantry Milling Machine
control unit brand: RÖDERS

Technical Information - RÖDERS RXP 801

Control Unit

Control Brand: RÖDERS
Control Model: RMS6

Dimensions

Machine Depth: 2760 mm
Machine Height: 2800 mm
Machine Weight: 9500 kg
Table Length: 796 mm
Table Load: 800 kg
Table Width: 596 mm

Movement

X-axis Travel: 800 mm
Y-axis Travel: 855 mm
Z-axis Travel: 400 mm

Technical Specification

Spindle Speed: 40000 RPM

Additional Information

Additional equipment

Laser for tool measuring
Tool cleaning device
Chiller for tempering of spindle
Cooling of the secondary parts of the linear motors
Workpiece cleaning System
High-frequency milling spindle MFW1224/42 HSK-E40
1-axis NC-turntable direct drive RTT1 360º
Power Chuck P, d=150

Machine Benefits

Technical Machine Benefits

Hsc-machine rxp801 with t-slot table
High dynamical linear motors in all axes with integrated cooling
Fully closed cabin with two doors with safety glass
All machine parts are protected against soiling
Spindle compensation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
