- ➤ Used RAPID DGL 200-E - Saw For Sale | gindumac.com

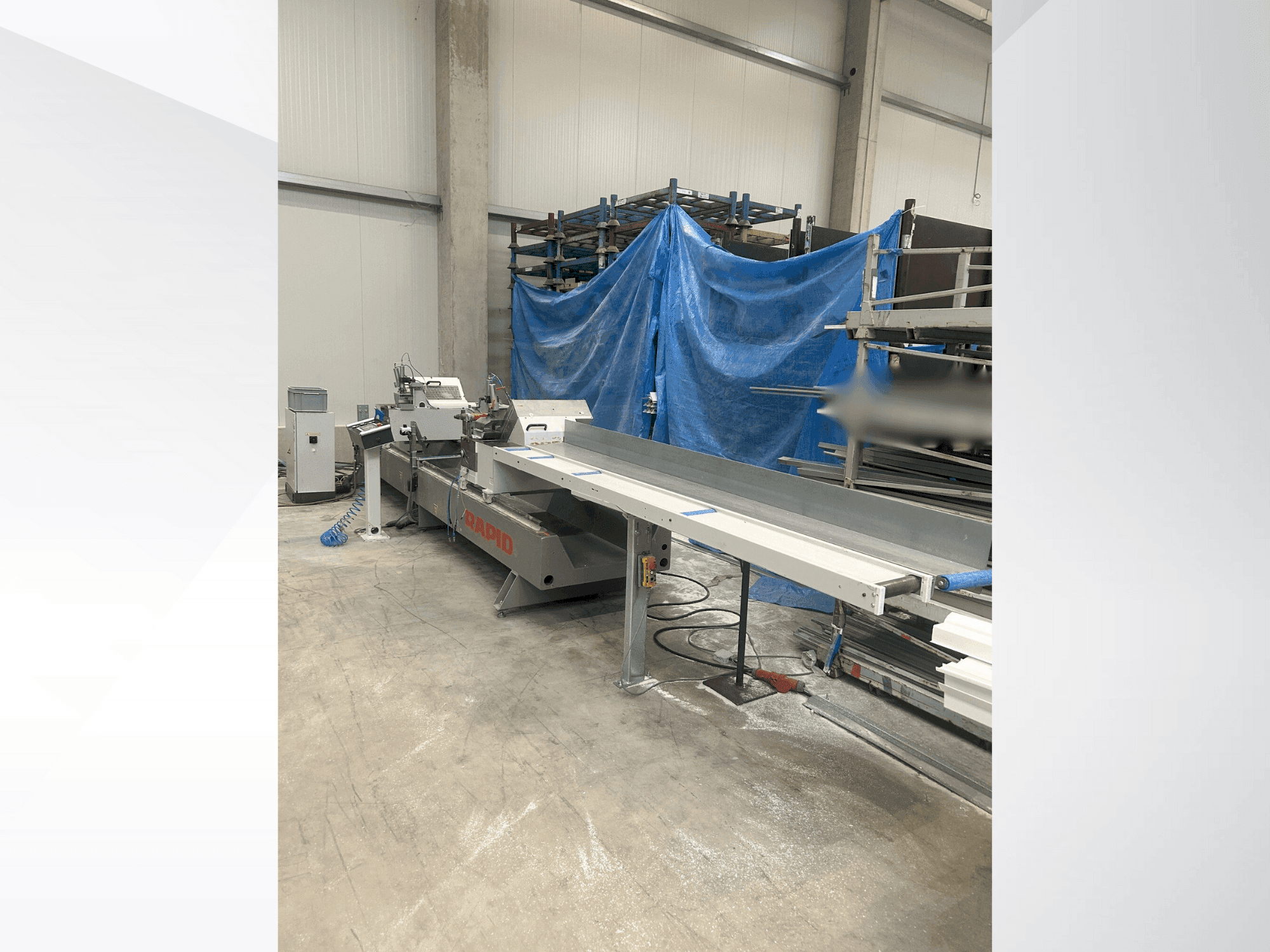

This RAPID DGL 200-E sawing machine was manufactured in 2017. It features a manual swivel range from 45° to 90°, a 500mm saw blade, and pneumatic saw feed. It includes both horizontal and vertical clamping cylinders, enhancing its versatility. Dimensions for the 3700mm cutting length are 5250 x 1420 x 1900 mm, and it weighs 1260kg. A robust choice for diverse cutting needs. Contact us for further details regarding this sawing machine.
Overview
- brand: RAPID
- year: 2017
- MODEL: DGL 200-E
- application type: Sawing
- Location: Germany
- machine type: Circular Metal Saw
Technical Information - RAPID DGL 200-E
Dimensions
- Machine Depth: 5250 mm
- Machine Height: 1900 mm
- Machine Weight: 1260 kg
Additional Information
Additional equipment
- Pneumatic saw feed
- Clamping device:2 horizontal clamping cylinders 2 vertical clamping cylinders
Machine Benefits
Qualitative Machine Benefits
- The machine ran in two shifts for approximately 3 years and in one shift for the last few years.
Technical Machine Benefits
- Max blade diameter: 500 mm
- Swivel range: manual 45° to 90°
- Cutting lengths: 3700 mm
Extra Information
Drive: 2 x 2.2 kW motors Unit adjustment: Motor-initiated Saw feed: Pneumatic Swivel range: 45-90°, manually adjustable Clamping device: Two horizontal clamping cylinders Control system: Prepared for the attachment of a Rapid control system Fixed center support to support the profiles Saw blades D=500 2x ball screw spindle for unit adjustment Smallest sawing dimension: approx. 310 mm Equipment: DGL-200/R600 ELEKTRONIK with ATV 32 DGL200SE VERT. CLAMP NO. M. AGAINST DGL-200E DGL200TK SHORT T. CONNECTION DGL-200RB Movable roller conveyor, width 215 mm DGL-200E CONNECTION 2.2KW Preparation for FRENIC EXTRACTION CONNECTION Socket connection for extraction up to max. 2.2 kW prepared at the factory DGL200VP - PLANK PACK. FIXED CONTROL PANEL DG1.200
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
