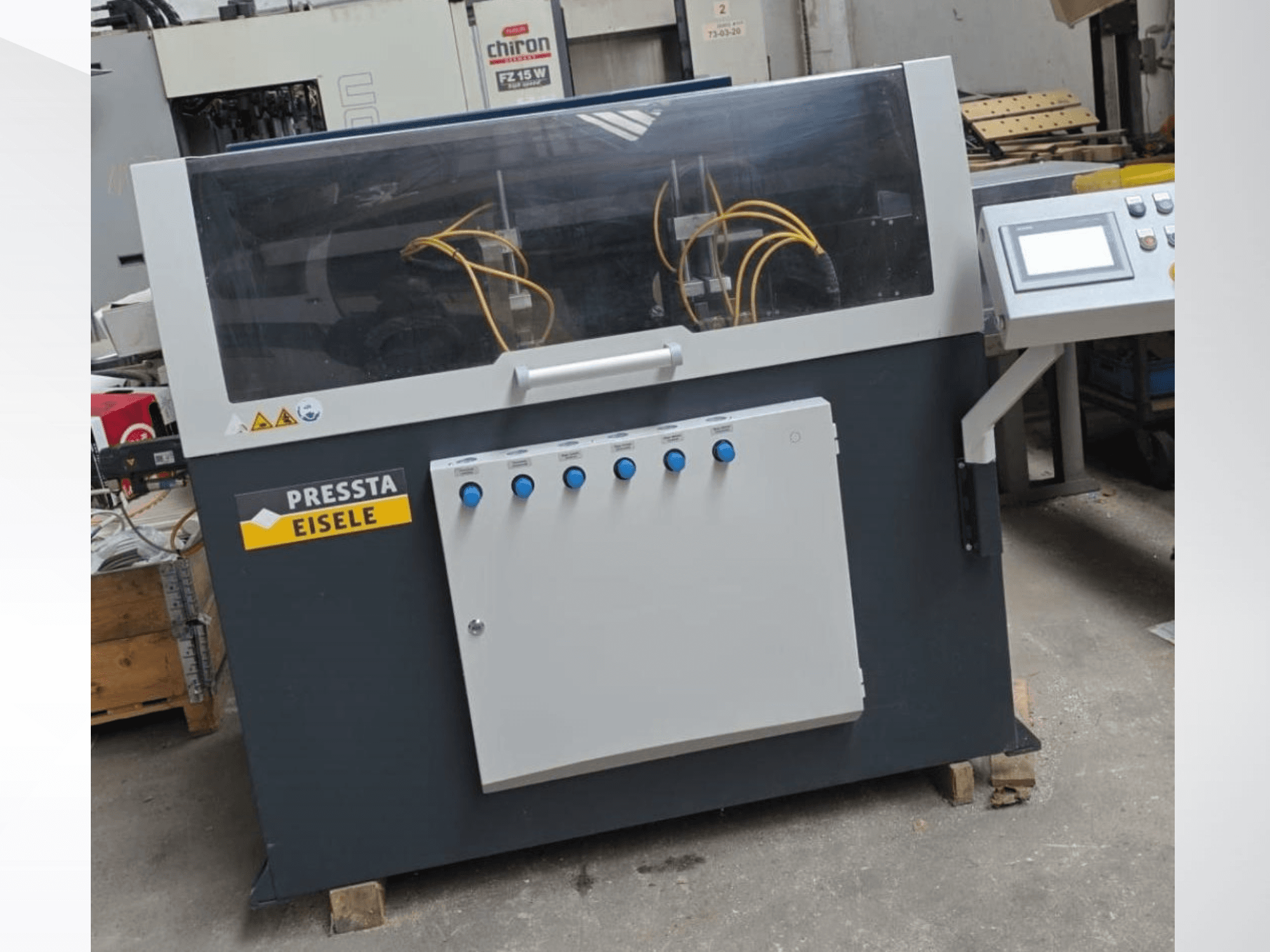

PRESSTA EISELE - PROFILMA 502 DE-SAW-PRE-2023-00001

Technical Specifications

• Saw Drive Power: 7.5 kW (7,500 W)

• Duty Cycle: S6

• Saw Blade Speed: Max. 2,850 rpm

• Power Supply: 400 V, 3-phase, 50 Hz

• Current Consumption: 16 A

• Operating Pressure: 6–8 bar

Cutting Capacity

• Maximum Cutting Width: 270 mm

• Maximum Cutting Height: 150 mm

• Maximum Cutting Diameter: 270 mm

• Maximum Round Material Capacity (90°): 190 mm

• Maximum Profile Width: 270 mm

• Section Length Range: 3–4,000 mm

• Minimum Remnant Length: From 75 mm (depending on profile)

Saw Blade

• Saw Blade Diameter: Ø550 mm

• Saw Blade Bore: Ø40 mm

Control System

• PLC: Siemens S7

• HMI: SIMATIC Touch Panel

• Controller: CPU 315

• Safety System: Flexisoft

• Functions:

  • Piece counter

  • Batch multiplier for bundle processing

  • Cycle time display

  • Chain dimension management

  • Fault diagnostics

Connectivity

• Remote Access: IXON router with VPN connection

Material Feed System

• Drive Type: Electronic servo drive

• Feed Stroke: 800 mm

• Drive Mechanism: Ball screw spindle

• Maximum Profile Length: 4,000 mm

• Feed Support: Lift/lower roller support

Saw Feed

• Feed Type: Motorized

• Feed Adjustment: Stepless

• Cutting Direction: Bottom to top

Clamping System

• Type: Pneumatic horizontal and vertical clamping

• Clamping Position: Feed and discharge sides

• Pressure Control: 6 individual pressure regulators

Lubrication

• Lubrication Type: Intermittent spray system

• Reservoir Capacity: 1 L

• Features:

  • Level monitoring

  • Automatic shut-off

Safety Features

• Complete safety enclosure

• Sound-insulated machine frame

• Automatic machine shut-off at end of material stock

• Cutting gap extension to protect cut surfaces

Material Support

• Infeed Conveyor: 740 mm roller conveyor with intrusion guard

• Outfeed Table: 450 mm Pertinax support table with intrusion guard

Extraction

• Extraction Ports: 2 × Ø100 mm

Chip Extraction Unit

• Model: MG 3 (Italyvacuum Vortex 58 FT)

• Year of Manufacture: 2022

• Motor Power: 3 kW

• Voltage: 400 V / 3~ (±5%)

• Current Consumption: 7.2 A

• Weight: 130 kg

• Features:

  • Integrated cyclonic separation system

  • Contactless antistatic system

Additional Information

• Machine can be inspected under power.
