Emmegi - Luna 450 TU/5 BG-SAW-EMM-2008-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Emmegi Luna 450 TU/5 - For Sale | gindumac.com

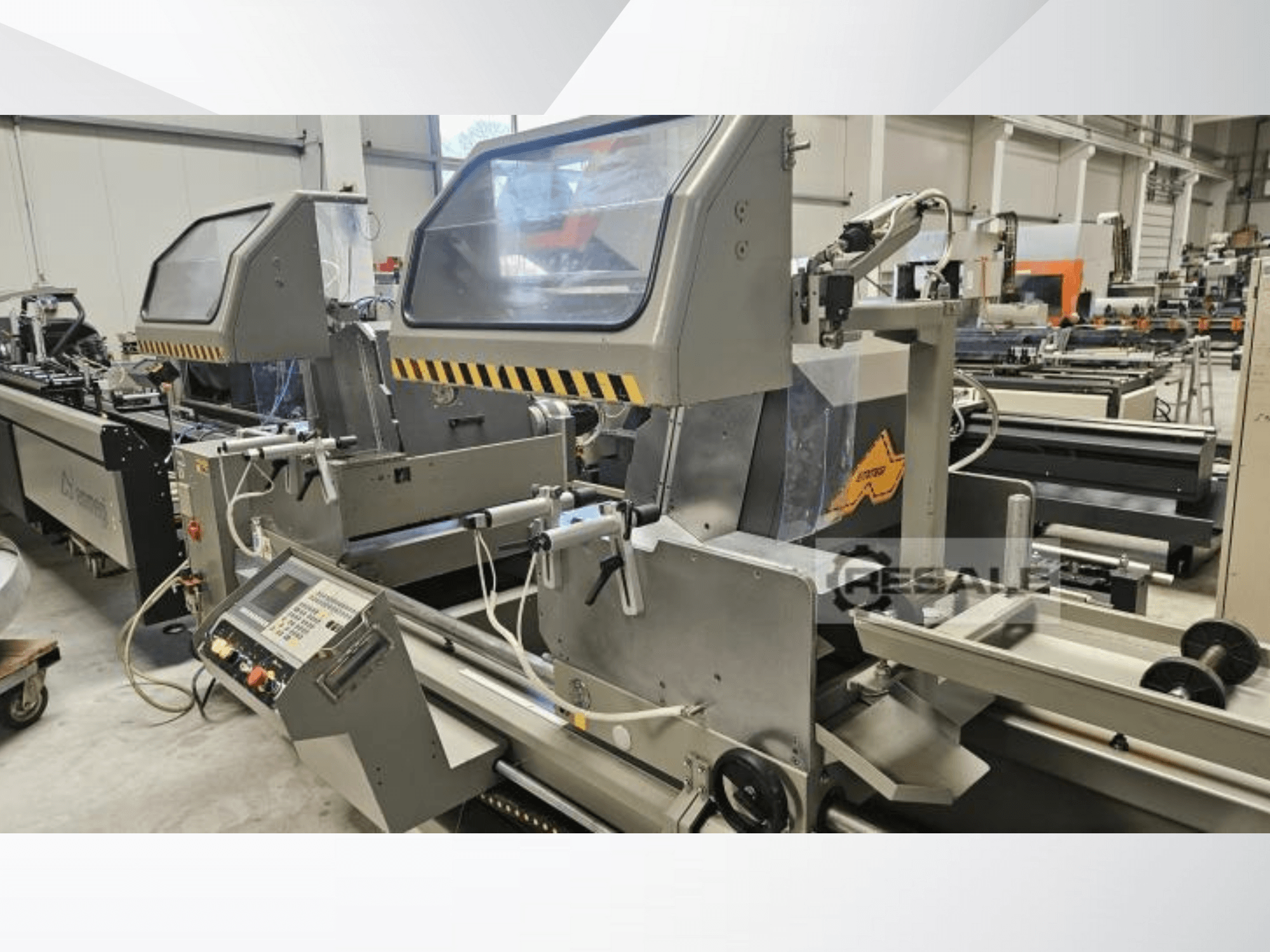

This Emmegi Luna 450 TU/5 Circular Metal Saw was manufactured in 2008. It features a saw blade diameter of 450 mm and a spindle diameter of 32 mm. The saw blade motor operates at 2.2 kW with a speed of 2800 rpm. It supports cutting lengths from 310 mm to 5000 mm and has a weight of 1400 kg. Dimensions are 9400x1400x1838H. Contact us for more information about this machine.
Overview
- brand: Emmegi
- year: 2008
- MODEL: Luna 450 TU/5
- application type: Sawing
- Location: Bulgaria
- machine type: Circular Metal Saw
Technical Information - Emmegi Luna 450 TU/5
Dimensions
- Machine Depth: 1400 mm
- Machine Height: 1838 mm
- Machine Length: 9400 mm
- Machine Weight: 1400 kg
Additional Information
Saw blade motor power: 2.2 kW
Saw blade motor speed: 2800 rpm
Installed power: 5.6 kW
Minimum cutting length: 310 mm
Maximum cutting length: 5000 mm
Saw blade feed speed: 0-60 mm/s
Cutting speed: 66 mm/s
Carriage stroke speed: 20 m/min
Angles: 45°/0/45°
Working pressure: 6-8 bar
Air consumption per cycle at 6 bar: 15 Nl
Saw blade diameter: 450 mm
Saw blade spindle diameter: 32 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
