➤ Used STEIN BAK10-D - 2017 - For Sale | gindumac.com

Show in original language

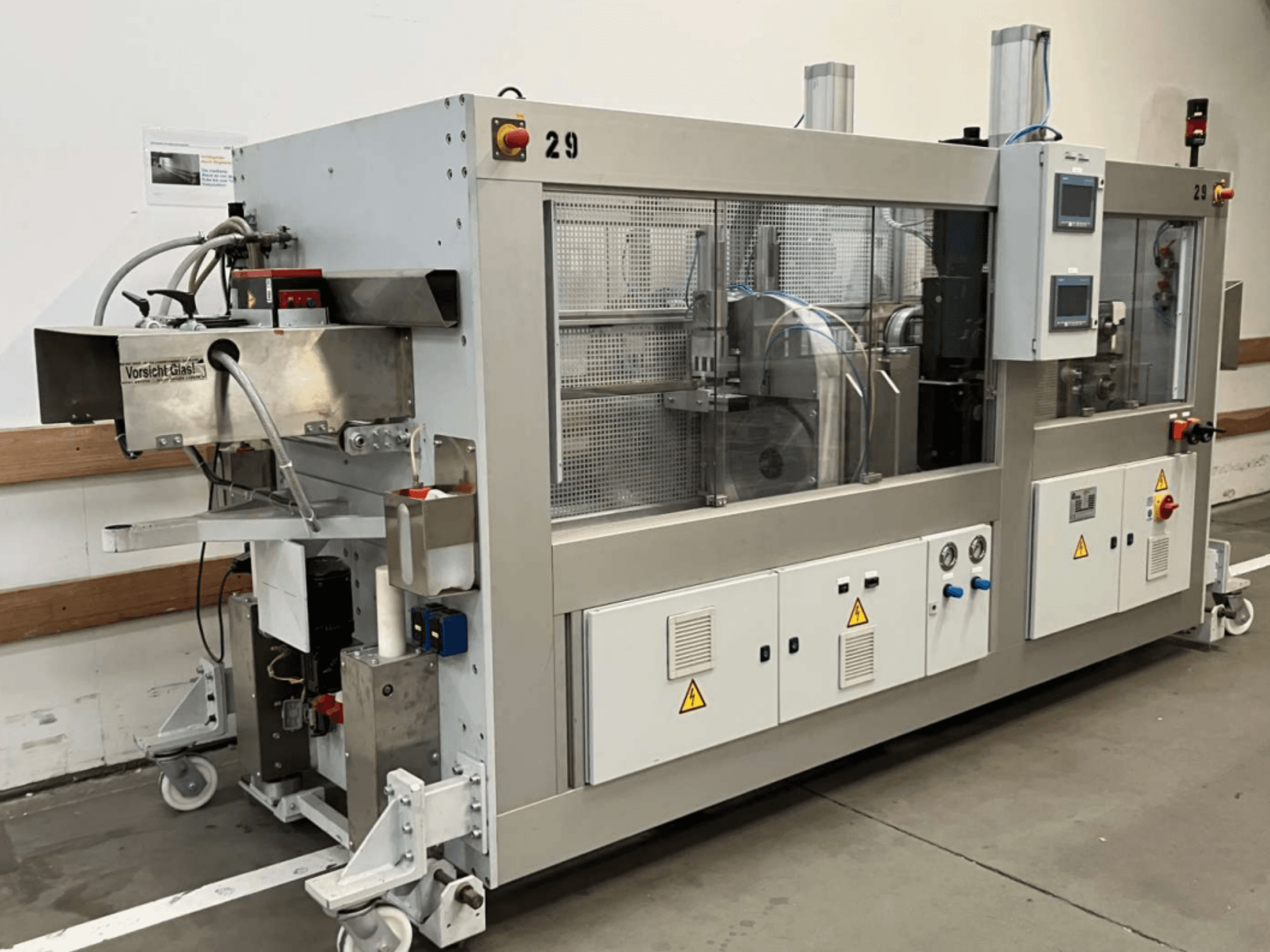

Circular Metal Saw manufactured in 2017. This STEIN BAK10-D features an electrical height adjustment system and individually adjustable caterpillars and saws. It has a maximum saw blade diameter of 400 mm and a regulated saw blade nominal speed ranging from 500 to 4200 rpm. If you are looking to get high-quality cutting capabilities, consider the STEIN BAK10-D machine we have for sale. Contact us for further details.

Overview

brand: STEIN
year: 2017
MODEL: BAK10-D
production hours: 3484
application type: Sawing
Location: Germany
machine type: Circular Metal Saw
control unit brand: SIEMENS

Technical Information - STEIN BAK10-D

Control Unit

Control Brand: SIEMENS
Control Model: S7-300

Dimensions

Machine Weight: 2580 kg

Additional Information

- Machine Type: Double Caterpillar Saw Combination

- Operating Voltage: 400 V

- Connection Power: 22 kW

- Nominal Current: 55 A

- Frequency: 50 Hz

- Operating Hours: 3484 h

- PLC / Control Unit: Siemens S7-300 / Dual Siemens SIMATIC HMI Touch panels

- Height Adjustment: Electrical height adjustment of the entire system

- Caterpillars & Saws Adjustment: Both caterpillars and saws individually adjustable

Caterpillar (Haul-off) Specs:

- Total Pull-Off Force: 10 kN

- Pull-Off Speed: 0.1 to 10 m/min

- Belt Contact Length: 1000 mm

- Upper Edge Lower Cleat Min. / Adjustment Travel: 1000/150 mm

- Belt Width: 100 mm

- Maximum Temperature: 120°C

- Upper Part Stroke: 200 mm

- Center Distance: 220 mm

Saw Specs:

- Regulated Saw Blade Nominal Speed: 500 - 4200 rpm

- Motor Power: 3 kW

- Motor Voltage: 230/400 V

- Max. Saw Blade Diameter: 400 mm

- Max. Material Speed: 10 m/min

- Saw Repeat Accuracy: +/-0.5 mm/m

- Longitudinal Stroke (Extruder Direction): 900 mm

- Average Working Height: 1100 mm

- Adjustment Option: +/-50 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
