PERTICI - 600TSEDE-SAW-PER-2022-00001

Name: PERTICI 600TSE
Brand: PERTICI
SKU: DE-SAW-PER-2022-00001
Price: 4416840 INR
Availability: InStock

Rs. 4,416,840

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used PERTICI 600TSE - 2022 - For Sale | gindumac.com

Show in original language

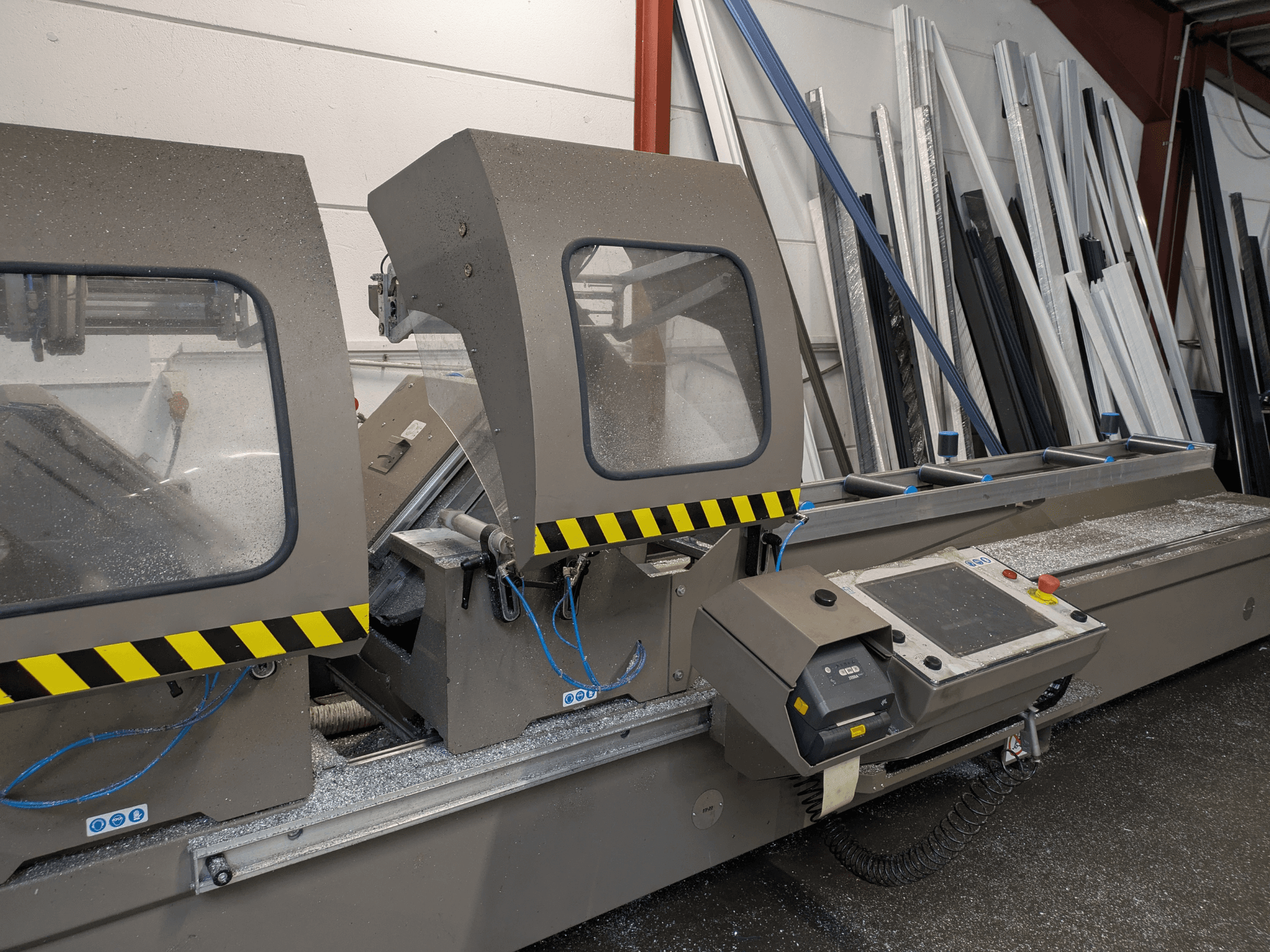

This 3-axis PERTICI 600TSE Circular Metal Saw was manufactured in 2022. It features a cutting length of 5100 mm and a saw blade diameter of 600 mm. The machine is equipped with a hydropneumatic feed mechanism and a double-cylinder clamping system for enhanced precision. If you are looking to get high-quality cutting capabilities, consider the PERTICI 600TSE machine we have for sale. Contact us for further details.

Overview

brand: PERTICI
year: 2022
MODEL: 600TSE
application type: Sawing
Location: Germany
machine type: Circular Metal Saw

Additional Information

- Cutting Length: 5100 mm

- Saw Blade Diameter: 600 mm

- Controlled Axes: 3 controlled axes (Electronic positioning X-axis, controlled tilting angles)

- Cutting Angles: Inward up to 45°, Outward up to 20° (Variable angle range 20° - 135°)

- Feed Mechanism: Hydropneumatic cylinder with infinitely variable feed adjustment and rapid return, linear guide rails with recirculating ball bearings

- Clamping System: Double-cylinder horizontal clamping system and vertical material clamping system for both heads

- Safety System: Local pneumatic drop-down safety guards on both heads

- Control Unit / Display: Industrial PC panel with 15" TFT Touchscreen monitor, USB port, Ethernet port (LAN)

- Operating System: Windows Embedded

- Control Features: Memory capacity up to 1000 profile data, cutting list optimization, online diagnostic assistance

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
