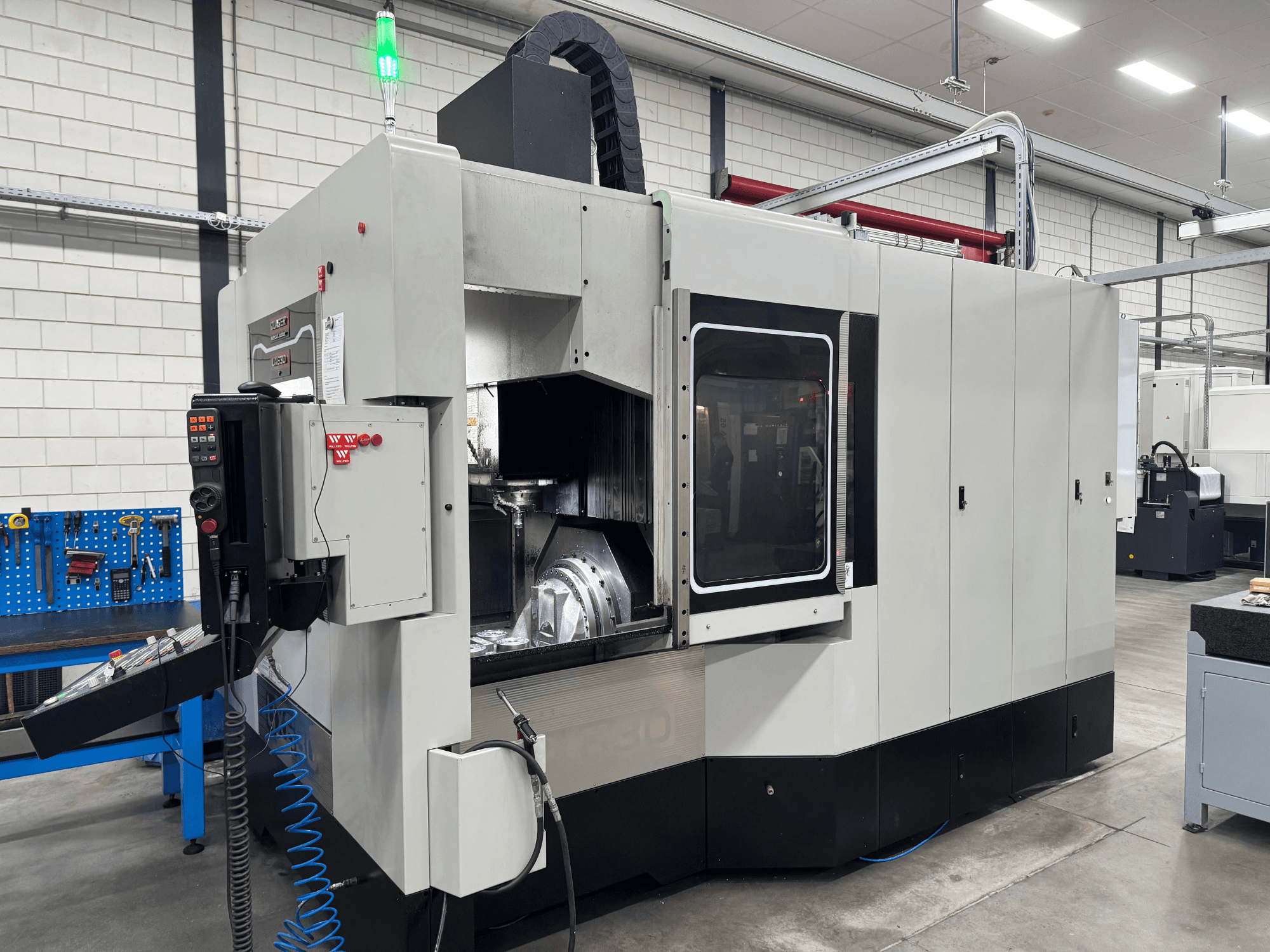

This 5-axis Quaser UX630 was manufactured in 2020. It features a powerful HSTec HM-15A spindle with a speed of 15,000 rpm and a robust rotary/tilt table capable of handling workpieces up to Ø630 × 540 mm. The machine is equipped with a 90-position tool magazine and includes advanced options like a Renishaw 3D workpiece probe. If you are looking to get high-quality machining capabilities, consider the Quaser UX630 universal machining centre we have for sale. Contact us for further details.
Overview
- brand: Quaser
- year: 2020
- MODEL: UX630
- production hours: 4726
- application type: Milling
- Location: Netherlands
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - Quaser UX630
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 640
Dimensions
- Table Load: 500 kg
Movement
- Number of Axes: 5
- X-axis Travel: 900 mm
Technical Specification
- Spindle Power: 51 kW
- Spindle Speed: 15000 RPM
- Tool Stations: 90
Additional Information
5-axis simultaneous machining; B-axis ±120°, C-axis 360° continuous
Spindle: HSTec HM-15A built-in, HSK-A63, 162 Nm
Rotary/tilt table: Peiseler (Germany), Direct Drive, Ø480 mm; max load 500 kg; max workpiece Ø630 × 540 mm
Control: Heidenhain TNC 640 with options DCM, Kinematics Opt, LAC, DNC (Opt. 18)
Tool magazine: 90 positions (HSK-A63)
Through-spindle coolant: 20 bar
Heidenhain linear scales on all axes
Spindle operating hours: 4,726
Note: Dust extractor shown in images is excluded
Additional equipment
Renishaw 3D workpiece probe
Blum laser tool measurement
Schunk Vero-S zero-point clamping system
NP clamping system
BMO robot interface installed and programmed (robot not included)
HSK63 tooling included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
