Prima Power - Platino 1530IN-LAS-PRI-2000-00001
Do you have further questions? Contact us.

Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com

- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used Laser Cutting Machine - Prima Power Platino 1530

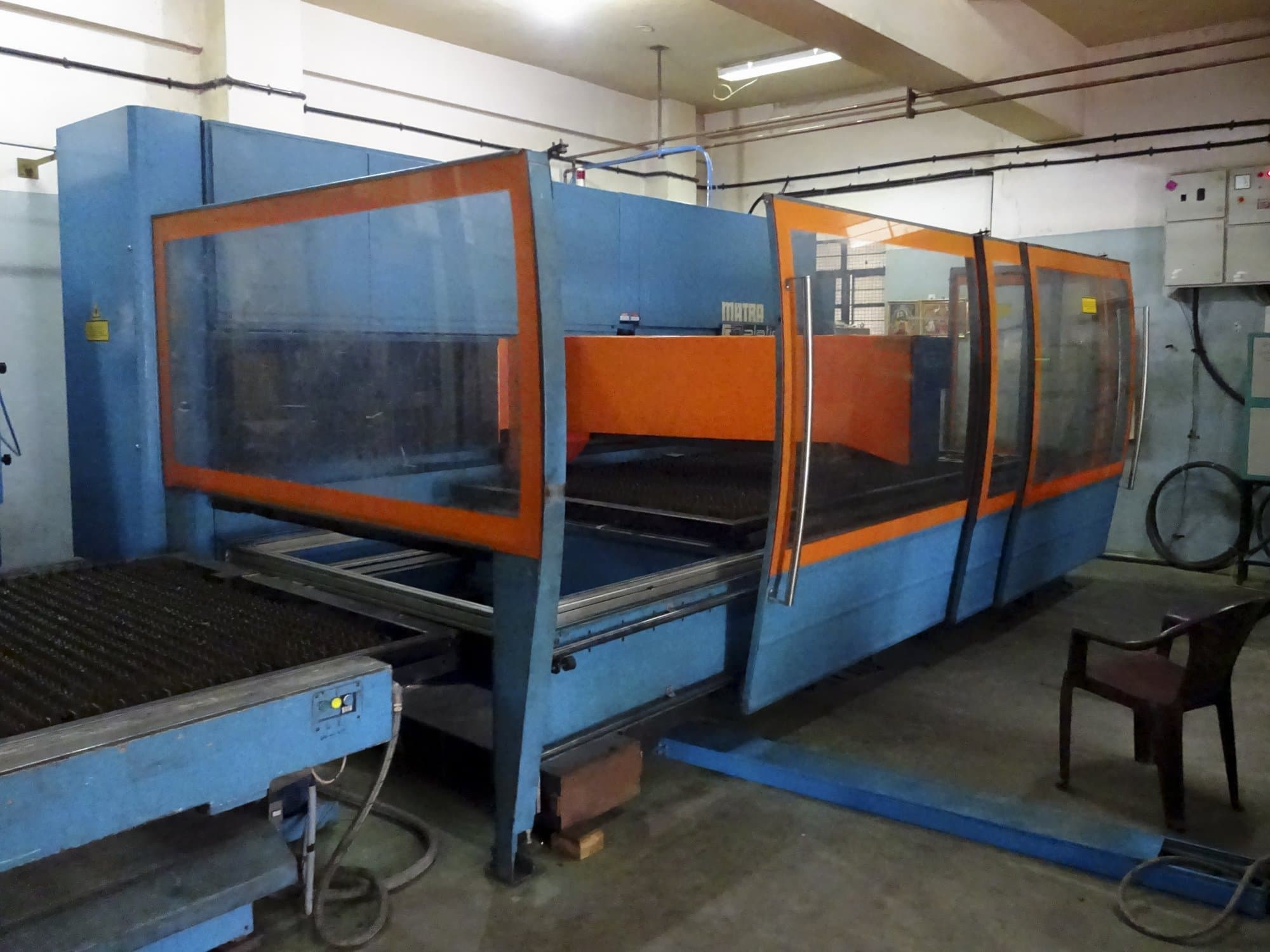

This Prima Power Platino 1530 Laser Cutting Machine was manufactured in the year 2000 and has gathered a working record of 56046 production hours since then. This machine operates its Prima Power Co2 Laser through a Primech 9000 L Control unit, and though it can handle thicker sheets than most of its competitors (up to 30 mm in steel sheets), this machine has worked mostly on up to 16 mm thick mild steel and up to 8 mm stainless steel. This Platino 1530 stands out through its two clamps and the ability to access the work piece from three different sides.
Overview
- brand: Prima Power
- year: 2000
- MODEL: Platino 1530
- production hours: 56046
- application type: Cutting
- Location: India
- machine type: CO2 Laser Cutting Machine
- availability: Sold
Technical Information - Prima Power Platino 1530
General Data
- Measurements width: 3050 mm
- Measurements depth: 8400 mm
- Measurements height: 2800 mm
- Machine weight: 10000 kg
Control Unit
- Model: 9000 L
Main drive
- Laserpower: 3 kW
- Laser type: Co2
- Laser brand: Prima Power
Movement
- X-AXIS Movement: 3000 mm
- Y-AXIS Movement: 1500 mm
- Z-AXIS Movement: 150 mm
Workpiece
- Workpiece x: 3000 mm
- Workpiece y: 1500 mm
- Workpiece z: 150 mm
Max Material thickness
- Steel: 30 mm
- Stainless steel: 12 mm
- Aluminum: 10 mm
Media
- Main electronic connection: 400 V
- Air pressure: 5.2 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
