Prima Power - Platino 1530

2001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

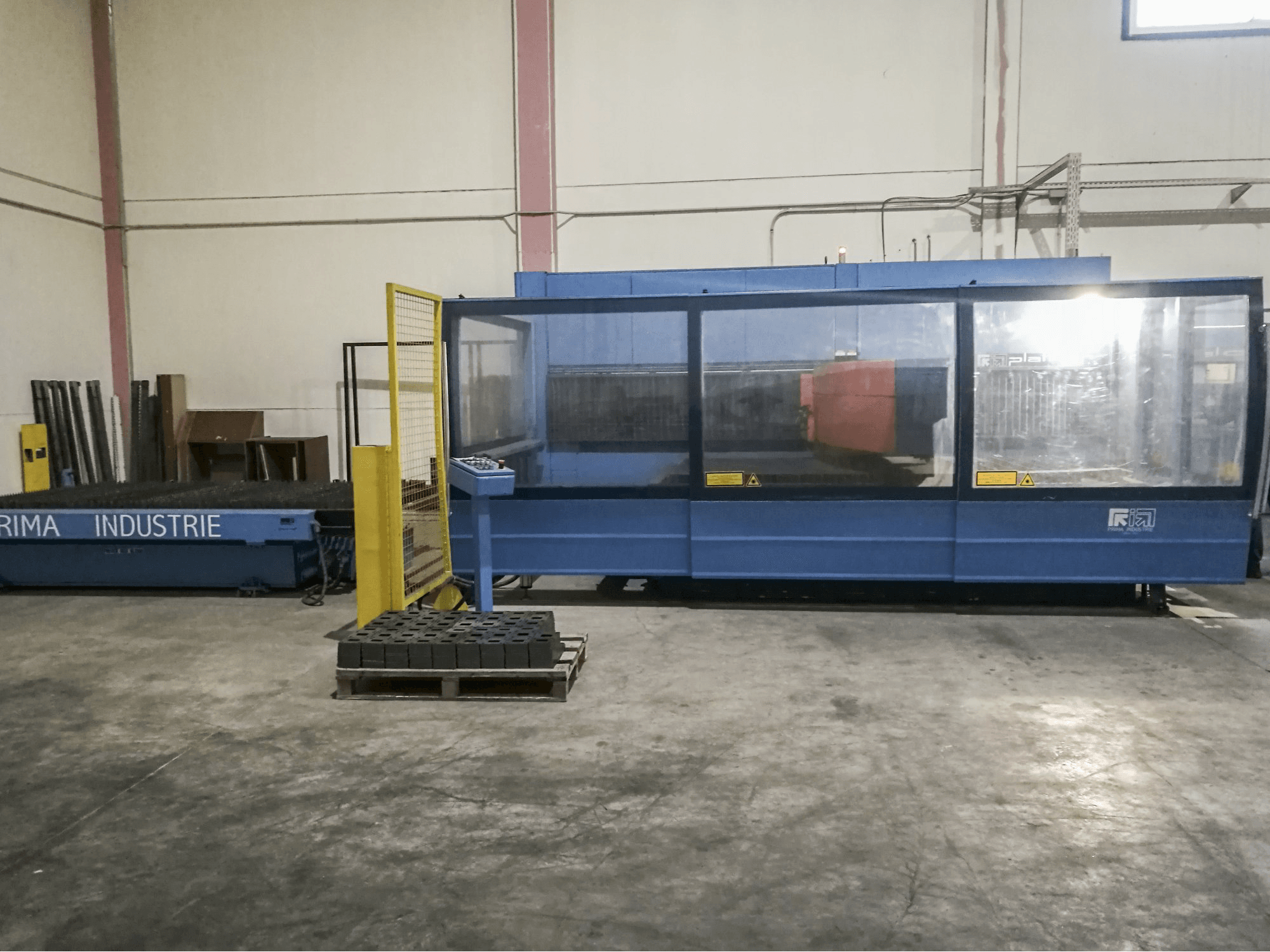

Prima Power Platino 1530 Laser Cutting Machine

Show in original language

This Italian-made Laser Cutting Machine Prima Power Platino 1530 has been operative for 32681 production hours. With a Primach 9000-L Control unit and a laser power of 3 kW, the machine comes in very good working conditions as it was frequently inspected by Prima Power.

Overview

brand: Prima Power
year: 2001
MODEL: Platino 1530
production hours: 32681
application type: Laser Cutting
Location: Spain
machine type: Laser Cutting Machines (CO2)
availability: Sold
control unit brand: Primach
GINDUMAC ID: ES-LAS-PRI-2001-00001

Technical Information

General Data

Measurements width: 6200 mm
Measurements depth: 3800 mm
Measurements height: 2500 mm
Machine weight: 13000 kg

Control Unit

Brand: Primach
Model: 9000-L

Main drive

Laserpower: 3 kW
Laser type: CO2
Laser brand: PLS 3000

Movement

X-AXIS Movement: 3000 mm
X-AXIS Rapid traverse: 50 m/min
Y-AXIS Movement: 1500 mm
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Movement: 150 mm
Z-AXIS Rapid traverse: 40 m/min

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm
Workpiece z: 15 mm

Max Material thickness

Steel: 15 mm
Stainless steel: 8 mm

Machine specific data

Size of cutting head 1: 5"
Size of cutting head 2: 7.5"

Media

Main electronic connection: 400 V
Power consumption: 63.3 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
