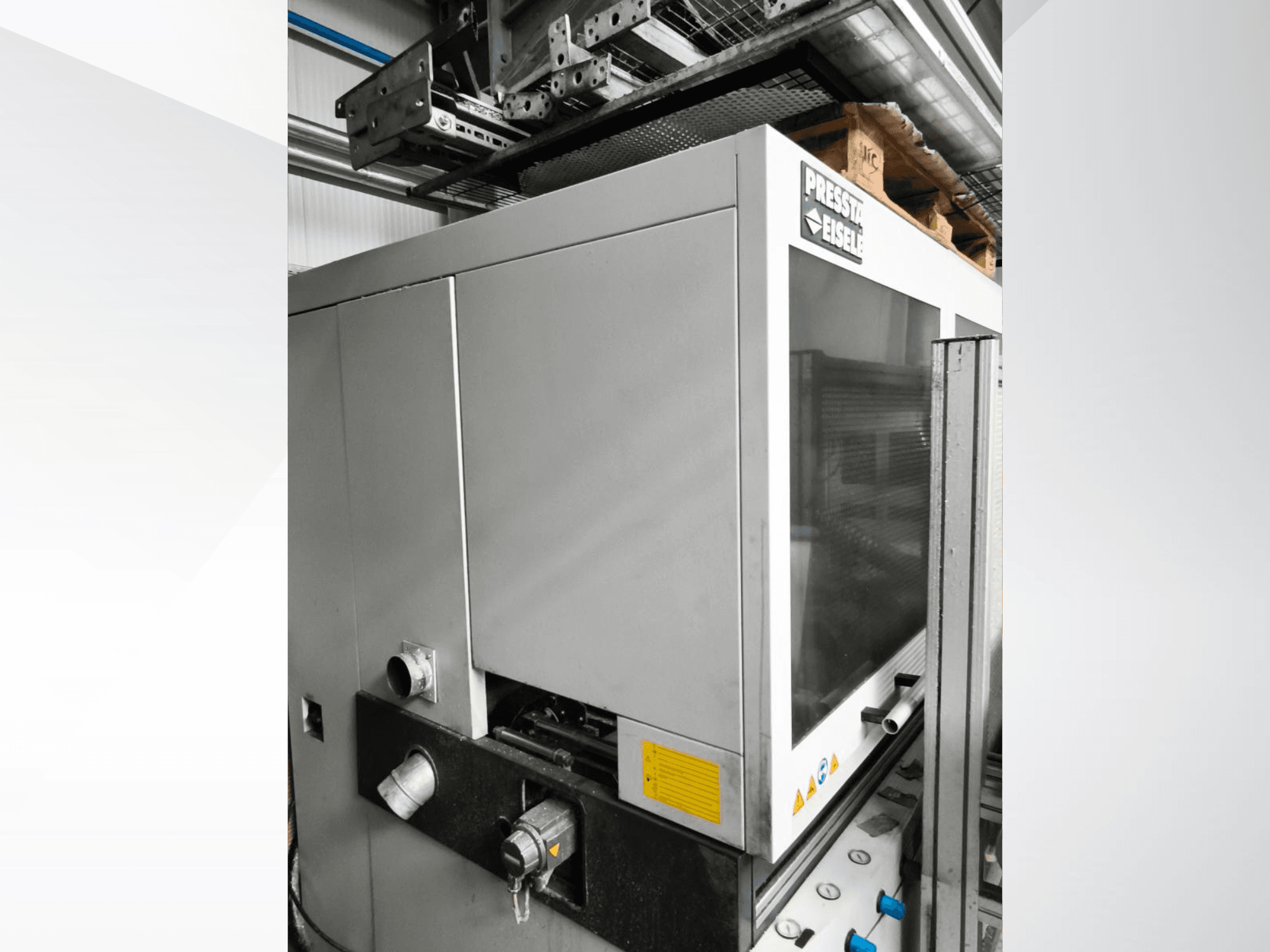

Circular Metal Saw manufactured in 2013. This PRESSTA EISELE Profilma 400 V features a saw blade diameter of Ø400 mm and a powerful motor with approximately 12 kW. It offers automatic material feeding and a pneumatic clamping system for efficient operation. If you are looking to get high-quality cutting capabilities, consider the PRESSTA EISELE Profilma 400 V machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: PRESSTA EISELE
- year: 2013
- MODEL: Profilma 400 V
- application type: Sawing
- Location: Germany
- machine type: Circular Metal Saw
Additional Information
Design: Integrated material feed/loading magazine; floating feed to compensate for profile deviations
Power supply: 400 V / 50 Hz
Materials: Aluminum and non-ferrous metal profiles
Saw blade diameter: Ø400 mm
Motor power: approx. 12 kW
Saw blade speed: adjustable approx. 3,500–5,800 rpm
Saw movement drive: Servo motor with ball screw drive
Sawing direction: Linear feed from top to bottom
Cutting principle: Crosscut
Material feed: Automatic servo feed with repeat strokes for longer cutting lengths
Material separation: Before the saw blade retracts (no recutting)
Clamping system: Pneumatic, vertical and horizontal, on both sides of the saw blade; clamping force separately adjustable; replaceable plastic/PVC pads
Control: PLC-based; operation via control panel with display
Functions: Profile database; piece counter (incl. bundle cutting); cycle time display; diagnostics and error messages; machine status indicator
Saw blade lubrication: Minimum quantity lubrication (spray mist), programmable lubrication control
Extraction connections: Ø100 mm and Ø160 mm
Pre-installation: Prepared for external chip extraction
Additional equipment
External chip extraction unit (to connect to Ø100/Ø160 mm ports)
