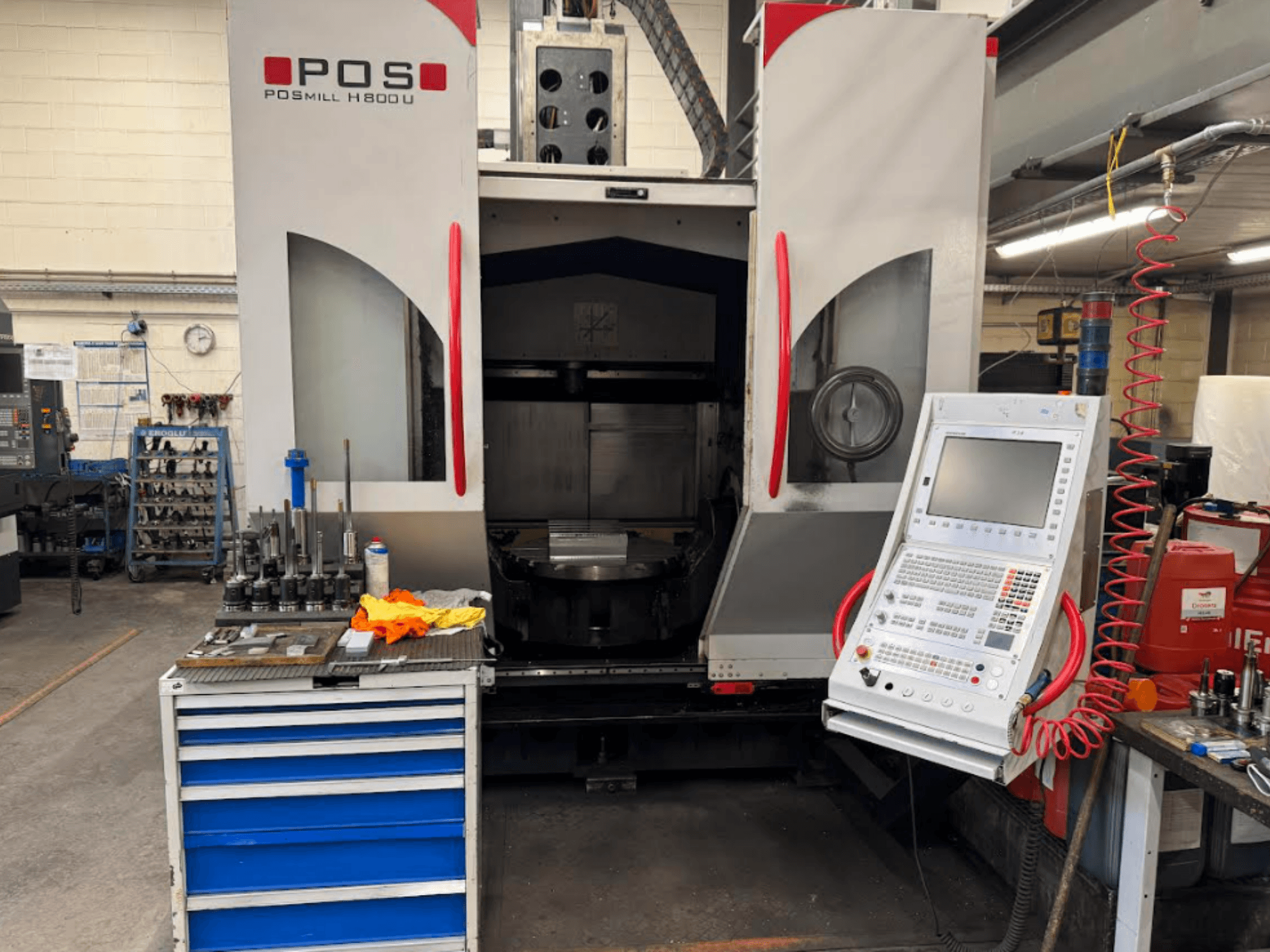

This 5-axis POSmill H 800 U was manufactured in 2018. It features a 670x830x600 mm travel range, a swivel range of -120 to 120 degrees, and a continuous 360-degree rotary table. Equipped with an 18,000 rpm milling spindle, 96-position tool changer, and Heidenhain iTNC530 control, this universal machining centre is ideal for complex machining tasks. Consider the opportunity to buy this POSmill H 800 U universal machining centre. Contact us for more information about this machine.
Overview
- brand: POSmill
- year: 2018
- MODEL: H 800 U
- production hours: 12971
- application type: Milling
- Location: Luxembourg
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - POSmill H 800 U
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Movement
- Number of Axes: 5
- X-axis Travel: 670 mm
- Y-axis Travel: 830 mm
- Z-axis Travel: 600 mm
Technical Specification
- Spindle Speed: 18000 RPM
- Taper Size: HSK 63
Additional Information
Swivel range (B): -120° to +120°
Rotary table (C): 360° continuous
Tool changer: 96 positions, HSK-A63, rear-mounted with display
Measuring systems: Heidenhain linear scales (X/Y/Z) with purge air; Heidenhain rotary measuring system
POS kinematic module incl. reference ball
POS contour protection
Control cabinet cooling: active air-to-air
Spindle cooler: controlled
Oil cooling for 4th/5th axes: controlled
Network and USB connections
Automatically controlled crane loading hatch
Coolant pump at the head via M-functions
Tool change safety door
Table media interfaces: 3 hydraulic connections and 1 air connection in the table center
Mobile electronic handwheel
Operating hours: 22,996 total; 12,971 program runtime
Additional equipment
External chip agitator / swarf (chip) conveyor
Chip removal device with dedicated pump
Water gun (washdown)
Air at the spindle
Electromechanical oil/coolant separator
Automatic coolant level monitoring
Operating status indicator light (stack light)
Hydraulic power unit, incl. control via M-function
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
