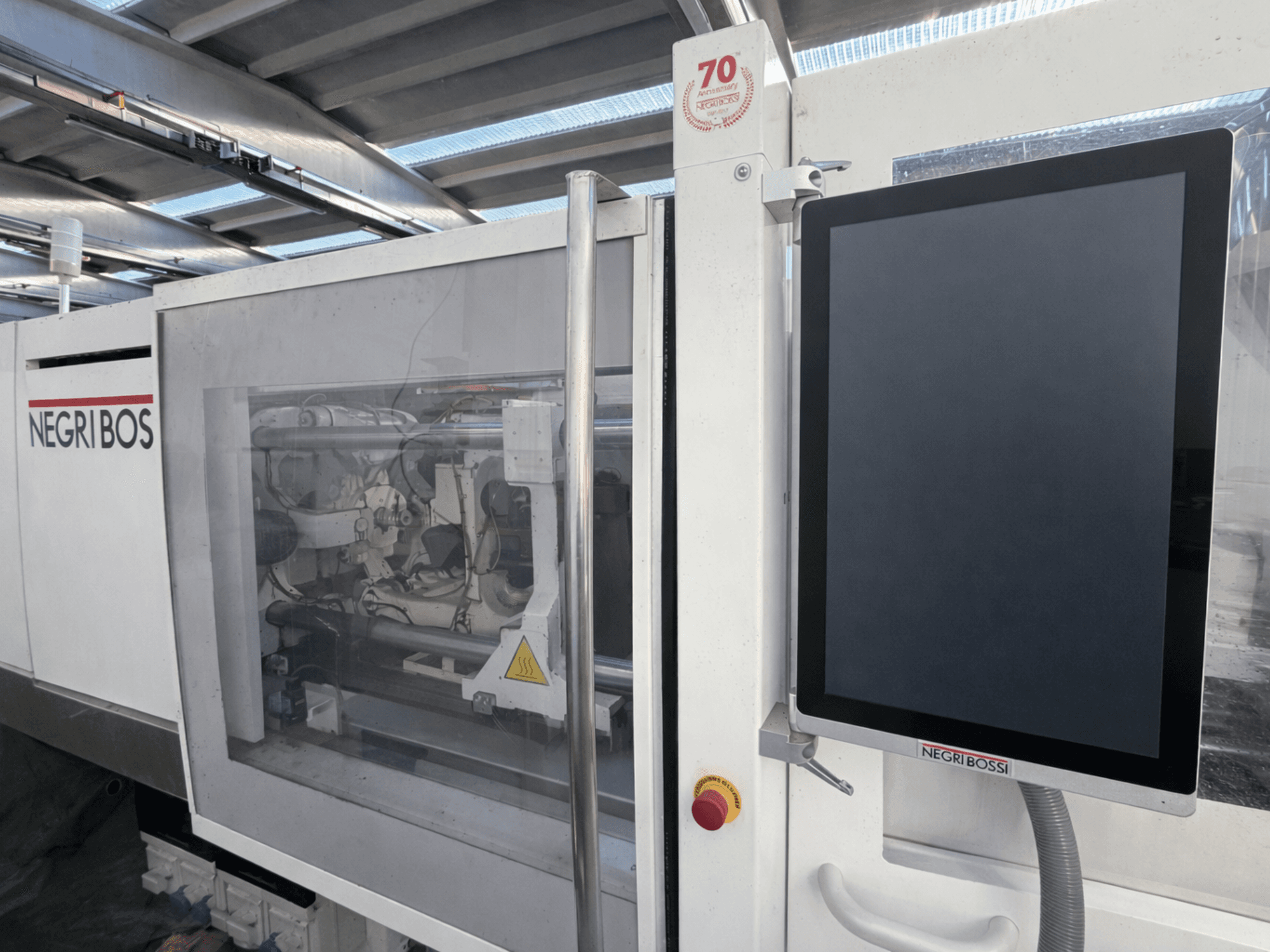

Negri Bossi - ELE 80IT-INJ-NEG-2017-00001

Tie bar distance (H × V): 420 × 420 mm

Platen size (H × V): 595 × 595 mm

Mould height (min–max): 180–515 mm

Max opening stroke: 515 mm

Max daylight: 515 mm + mould height (depending on configuration)

Injection unit options:

• Screw diameters: 18 / 25 / 30 / 35 mm

• Shot volume: 22–116 cm³ (depending on screw)

• Max injection pressure: up to 3000 bar (depending on screw diameter)

• Max injection speed: 300 mm/s

Machine category: Fully electric (no hydraulics for main movements)
