MORI SEIKI - MV 40B/40DE-MIL-MOR-1995-00001
Sold
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- ➤ Used MORI SEIKI MV 40B/40 For Sale | gindumac.com
Show in original language

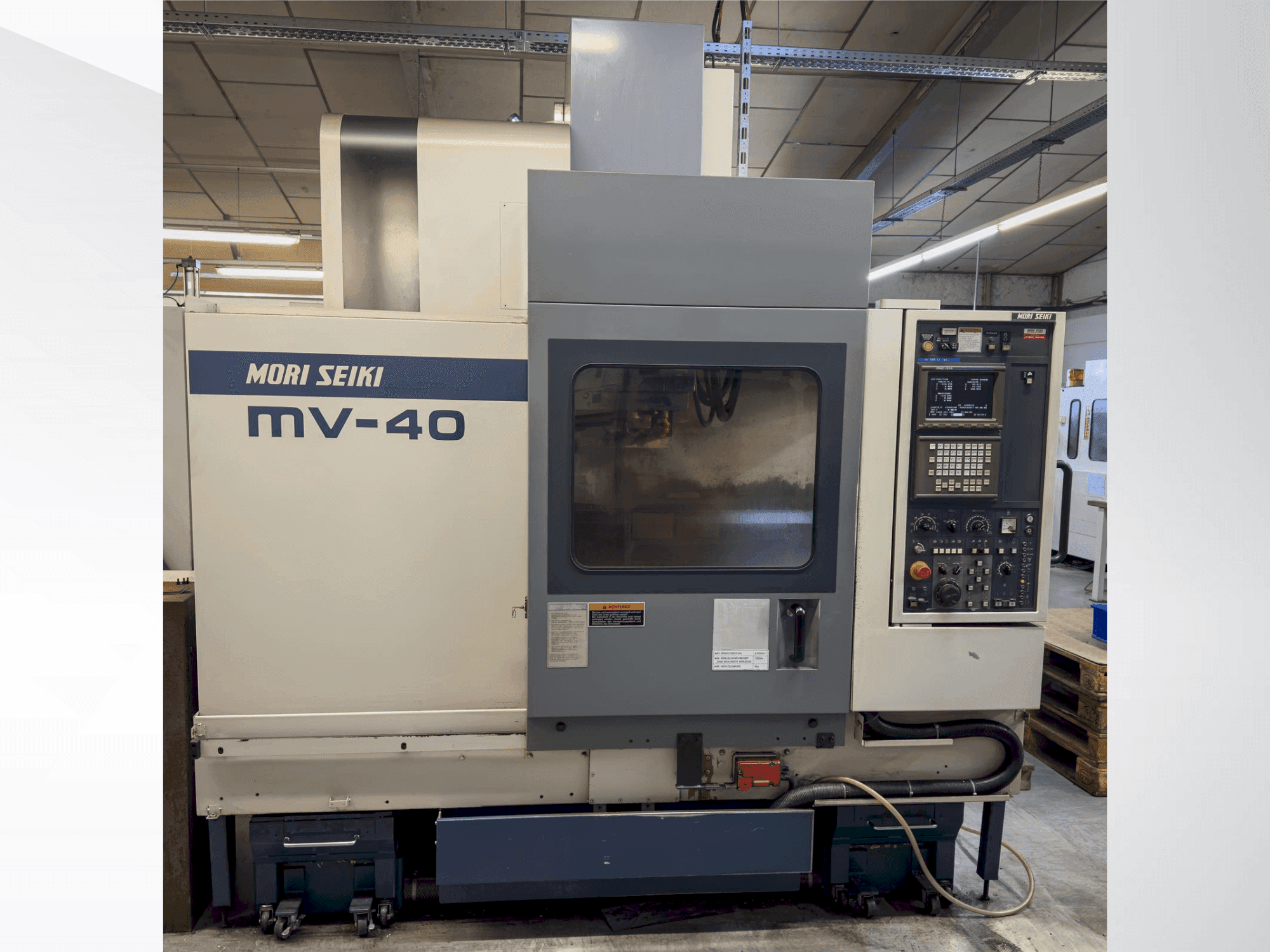

This 3-axis MORI SEIKI MV 40B/40 vertical machining centre was manufactured in 1995. Consider the opportunity to buy this MORI SEIKI MV 40B/40 vertical machining centre. Contact us for more information.
Overview
- brand: MORI SEIKI
- year: 1995
- MODEL: MV 40B/40
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - MORI SEIKI MV 40B/40
Dimensions
- Machine Depth: 2583 mm
- Machine Height: 2770 mm
- Machine Weight: 6300 kg
- Table Length: 1100 mm
- Table Width: 450 mm
Movement
- X-axis Travel: 800 mm
- Y-axis Travel: 410 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Number of Tools: 20
- Spindle Speed: 8000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Feed motor: x, y: 0. 9 kw, z: 2. 8 kw
- Power supply: 19. 6
33. 7 kva - Air pressure connection: 0. 5 mpa, l/min
Technical Machine Benefits
- Frequency: 50 hz
- Control unit: msc-516
- Fine feed rate: 0-1260 mm/min in 15 steps
- Table form: 18 mm, 4 t-slots
- Tool shank type: mas bt-40
- Pull stud type: for 90° version of mori seiki [mas i-ii/iso]
- Tool change time (tool-tool)
: 1. 5 sec - Tool change time (chip-chip)
: 5. 2 sec - Diameter of front bearing: 65 mm
- Spindle motor (30 min/continuous): 7. 5/5. 5 kw
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
