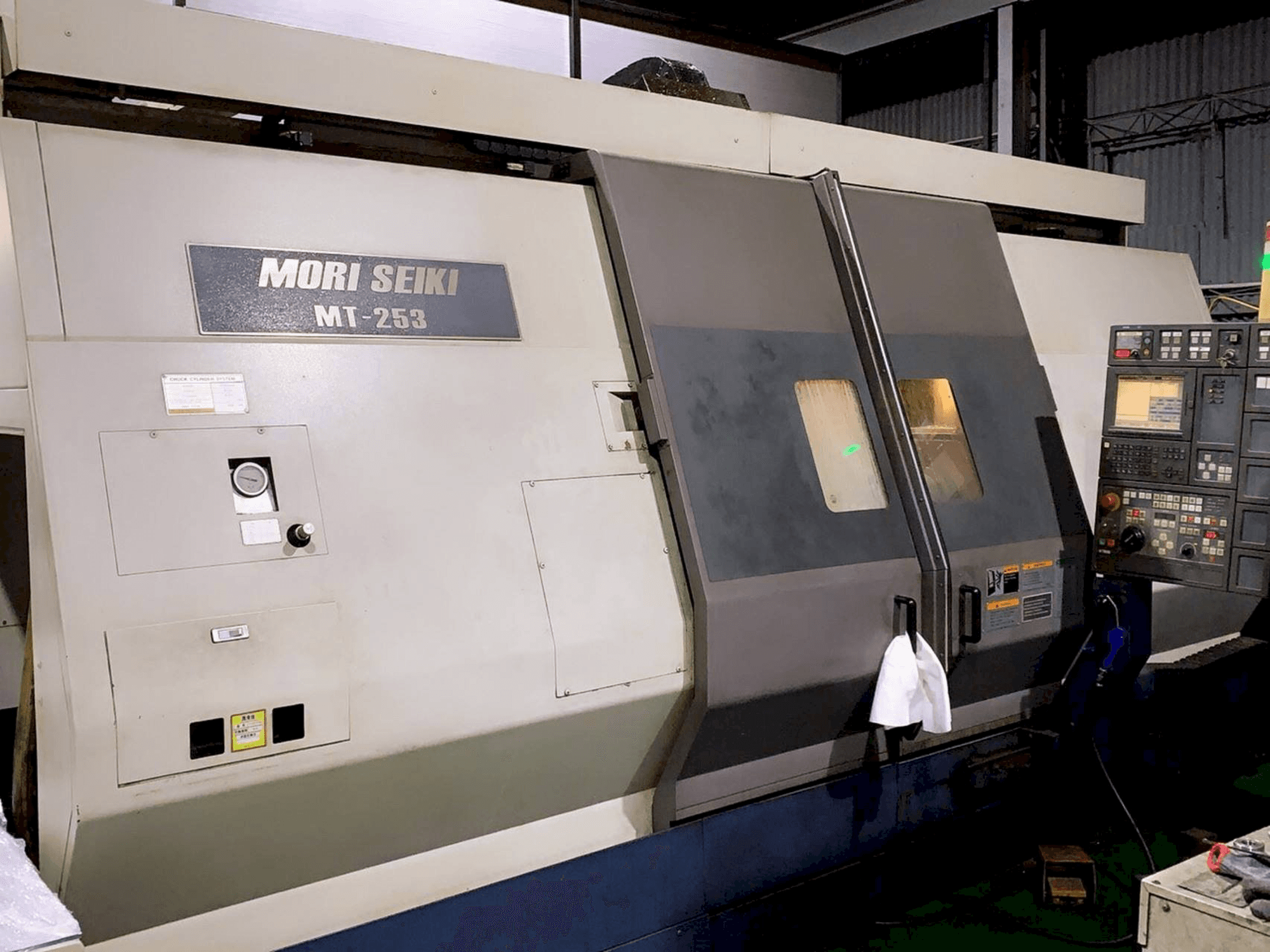

Front view of MORI SEIKI MT 253 S machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MORI SEIKI MT-253S/1000

Photo Gallery

MORI SEIKI - MT-253S/1000TW-TUR-MOR-2000-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MORI SEIKI MT 253 S Lathe

Show in original language

This MORI SEIKI MT-253S/1000 Lathe from Japan was manufactured in the year 2000. It is operated through a Mori Seiki MSX 501 III control unit. This 6 axis CNC lathe with milling head and counterspindle incorporates a spindle speed up to 3500 rpm. It includes a mechanical tool presetter, a swarf conveyor, a renishaw touch probe, and other accesories. It presents very good conditions.

Overview

brand: MORI SEIKI
year: 2000
MODEL: MT-253S/1000
application type: Turning
Location: Taiwan
machine type: Turn-Mill Centre

Technical Information - MORI SEIKI MT-253S/1000

General Data

Measurements width: 5130 mm
Measurements depth: 3194 mm
Measurements height: 2646 mm
Machine weight: 15000 kg

Control Unit

Model: MSX 501 III

Main drive

Spindle speed range: 3500 1/MIN
Spindle motor power: 22-15 kW

Movement

X-AXIS Movement: 635 mm
Y-AXIS Movement: ± 110 mm
B-AXIS Movement: ±120 ° MM

Additional equipment

- Mechanical tool presetter
- High-pressure coolant
- Swarf conveyor
- Rs 232 serial port
- Usb port

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 6-axis cnc lathe with milling head and counterspindle
- - Max rotating diameter: 910 mm
- - Max turning length: 1020 mm
- - Bar capacity: 75-50 mm
- - Counter spindle: 3500 rpm; 15-11 kw; 210 mm; asa 6"
- - Head: continuous; capto c6; 12000 rpm; 11-7,5 kw
- - Rapid feeds: x-y-z: 24 - 16 – 24
- - Tool magazine: 60 pos
Qualitative Machine Benefits:
- - The machine is in excellent shape and includes all systems for operation
- - All service manuals and books included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
