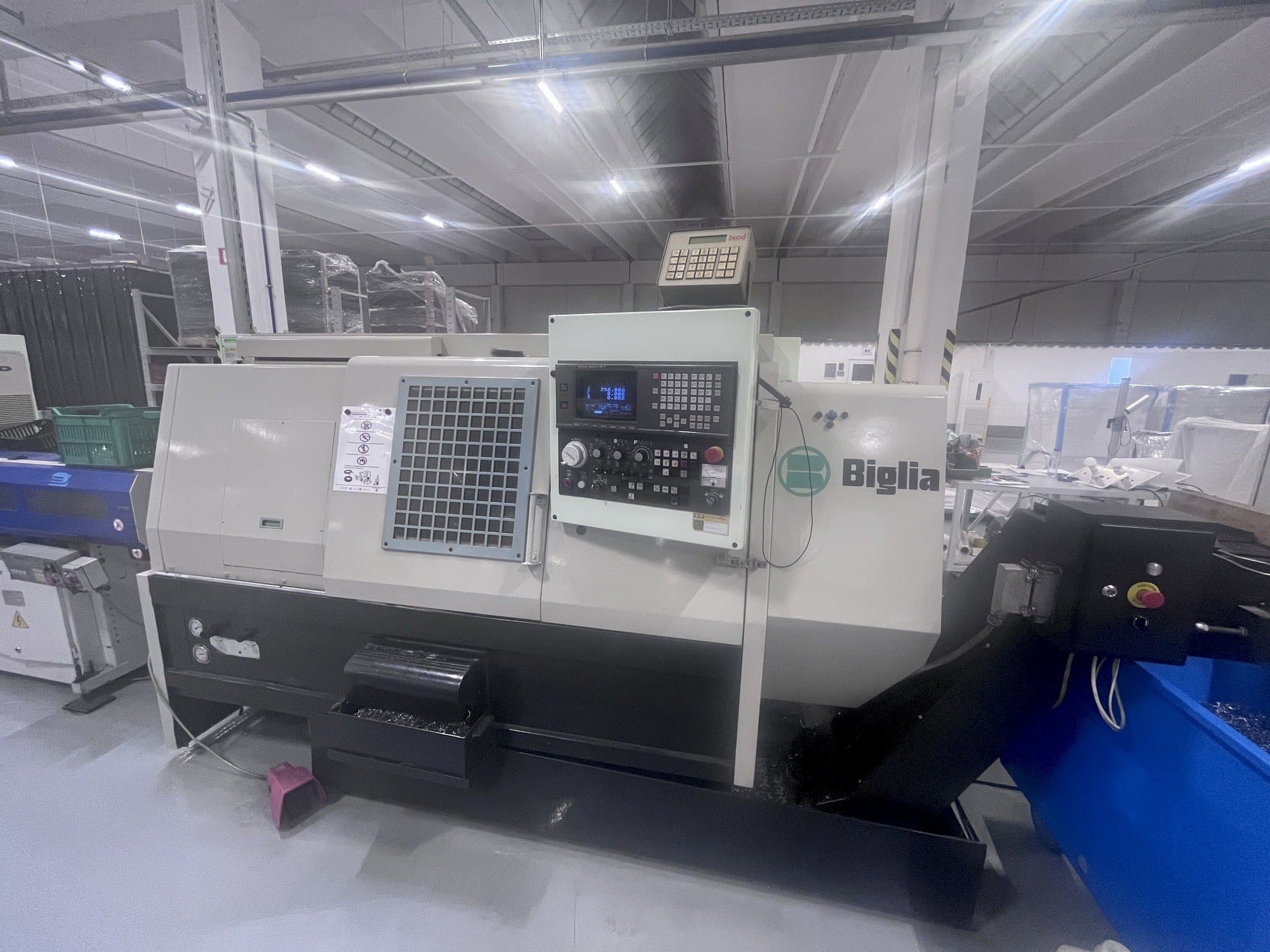

Front view of Biglia B 501 MB  machine

Biglia B 501 MB

Biglia - B 501 MB

1997

Rs. 1,537,400
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This BIGLIA B 501 MB (1997) Lathe machine was manufactured in 1997. This machine has a tank capacity of 200 liters and a pump flow rate of 100 liters per minute, driven by a pump motor with 0.5 kW power. Regarding its axis specifications, the x-axis has a travel distance of 210+5 mm and moves at a speed of 20 meters per minute, while the z-axis travels a distance of 500+10 mm at the same speed. Contact us anytime for further information.

Overview

  • brand: Biglia
  • year: 1997
  • MODEL: B 501 MB
  • application type: Turning
  • Location: Bulgaria
  • machine type: Lathe
  • availability: Immediately
  • GINDUMAC ID: BG-TUR-BIG-1997-00001

Technical Information

General Data

  • Measurements width: 1940 MM
  • Measurements depth: 4000 MM
  • Measurements height: 1660 MM
  • Machine weight: 4700 KG

Main drive

  • Spindle speed range: 40-4000 1/MIN

Movement

  • X-AXIS Movement: 210+5mm
  • Z-AXIS Movement: 500+10mm

Turret

  • Number of turrets: 12

Tools

  • Slots in storage: 6

Media

  • Chip conveyor: Yes

    Additional equipment

    • - The bar feeder is not included and not for sale.

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Spindle nose: asa 6''
        • - Spindle hole: 80mm
        • - Maximum bar workable diameter: 54-68mm
        • - Maximum workable diameter for shooting: 250mm
        • - Maximum workable length: 500mm
        • - Maximum rotating diameter: 520mm
        • - Front bearing internal diameter: 110mm
        • - Self-centering diameter: 210-250mm
        • - Caliper group: din 6343
        • - Engine power: kw 11-15(50%)-22-26(50%)

      Extra information

      • - - Turret type: bidirectional - External tool shank: 25 x 25 mm - Reamer tool shank: 32mm - Rotation time (1 position): 0.7sec - Powered tools: variable rotation range 50-3000rpm, engine power Kw 3.7(50%) - C axis controlled: type CS(direct), minimum programmable value 0.001°, fast speed 80rpm -Hydraulic tailstock: automatic quill travel 100mm, quill diameter 85mm, tip holder cone CM.4, automatic/manual positioning mm 510-440 - Tank capacity: 200l - Pump flow rate: 100 l/min - Pump motor power: 0.5Kw - Main spindle center height 1000mm

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
