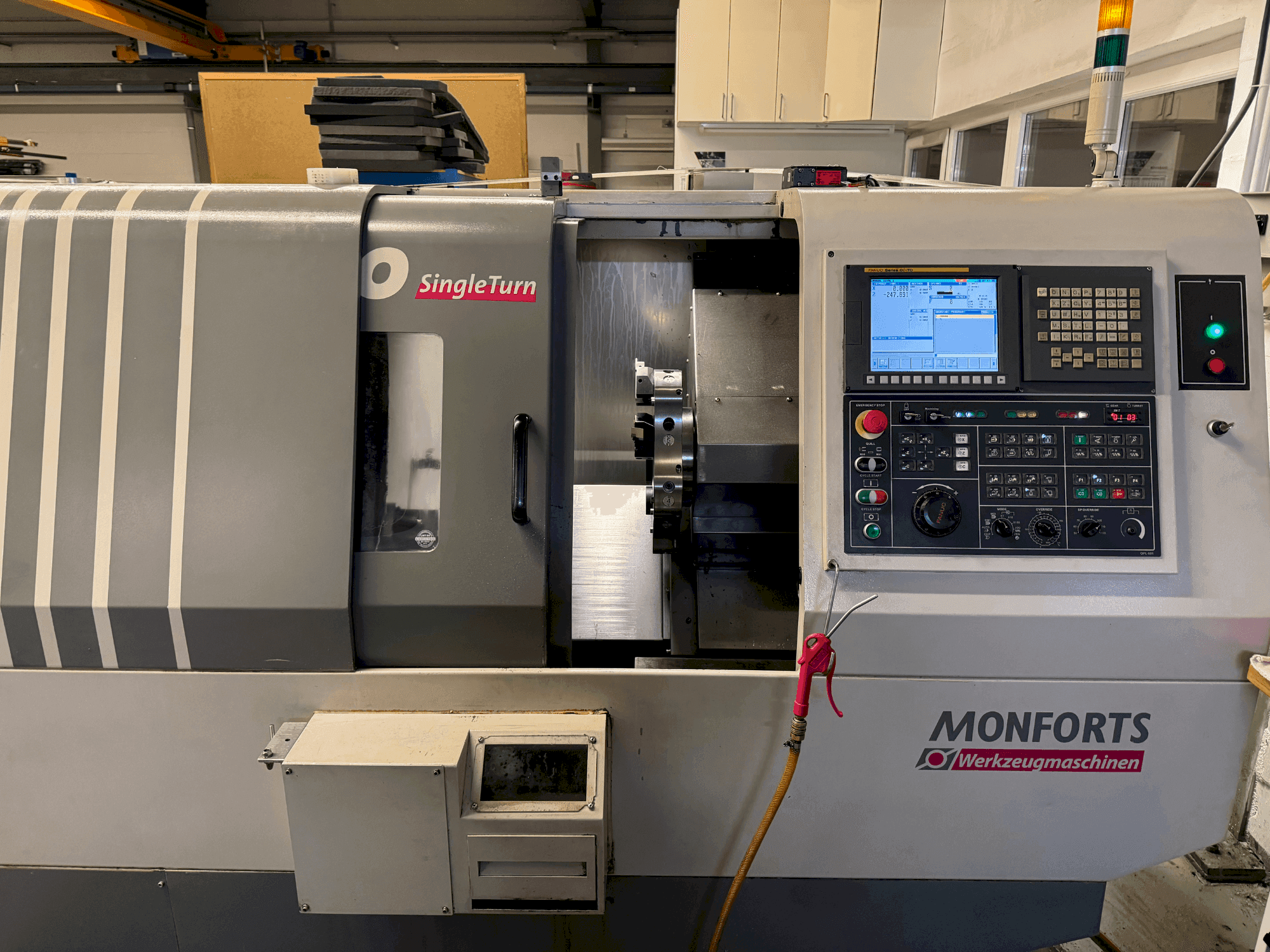

Monforts - TNC 300 SingleTurnDE-TUR-MON-2009-00001

Additional equipment

• - Three-jaw power chuck Kitagawa 8'' (200 mm)
• - Hydraulic hollow clamping device (diameter 52 mm)
• - Chip conveyor chain hinge belt
• - Coolant system: 10 bar
• - One hadwheel
• - Collet chuck CRL-42-A6 (diameter 42 mm)
• - Automatic tool measurement
• - Short bar loader for bar length: 1200 mm

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max. Torque: 124 nm
  • - Rapid traverse x-axis: 30 m/min / rapid traverse z-axis: 30 m/min
  • - Position accuracy: ±0. 005 mm / repeatability: ±0. 002 mm
  • - Rotating diameter over bed: 480 mm / rotating diameter over cross slide: 320 mm / turning length: 500 mm
  • - Number of tool stations: 10 / vdi size: 30 / shank diameter: 30 mm
  • - Pinole diameter: 65 mm / quill stroke: 50 mm / tailstock travel: 425 mm / quill inner taper: mk4
  • - Quill inner taper: mk4 / max. Material passage: 52 mm
  • - Spindle diameter in front bearing: 100 mm / spindle height: 900 mm
