Monforts - RNC 5DE-TUR-MON-1992-00001

Name: Monforts RNC 5
Brand: Monforts
SKU: DE-TUR-MON-1992-00001
Price: 1302511 INR
Availability: InStock

Rs. 1,302,511

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Monforts RNC 5 For Sale | gindumac.com

Show in original language

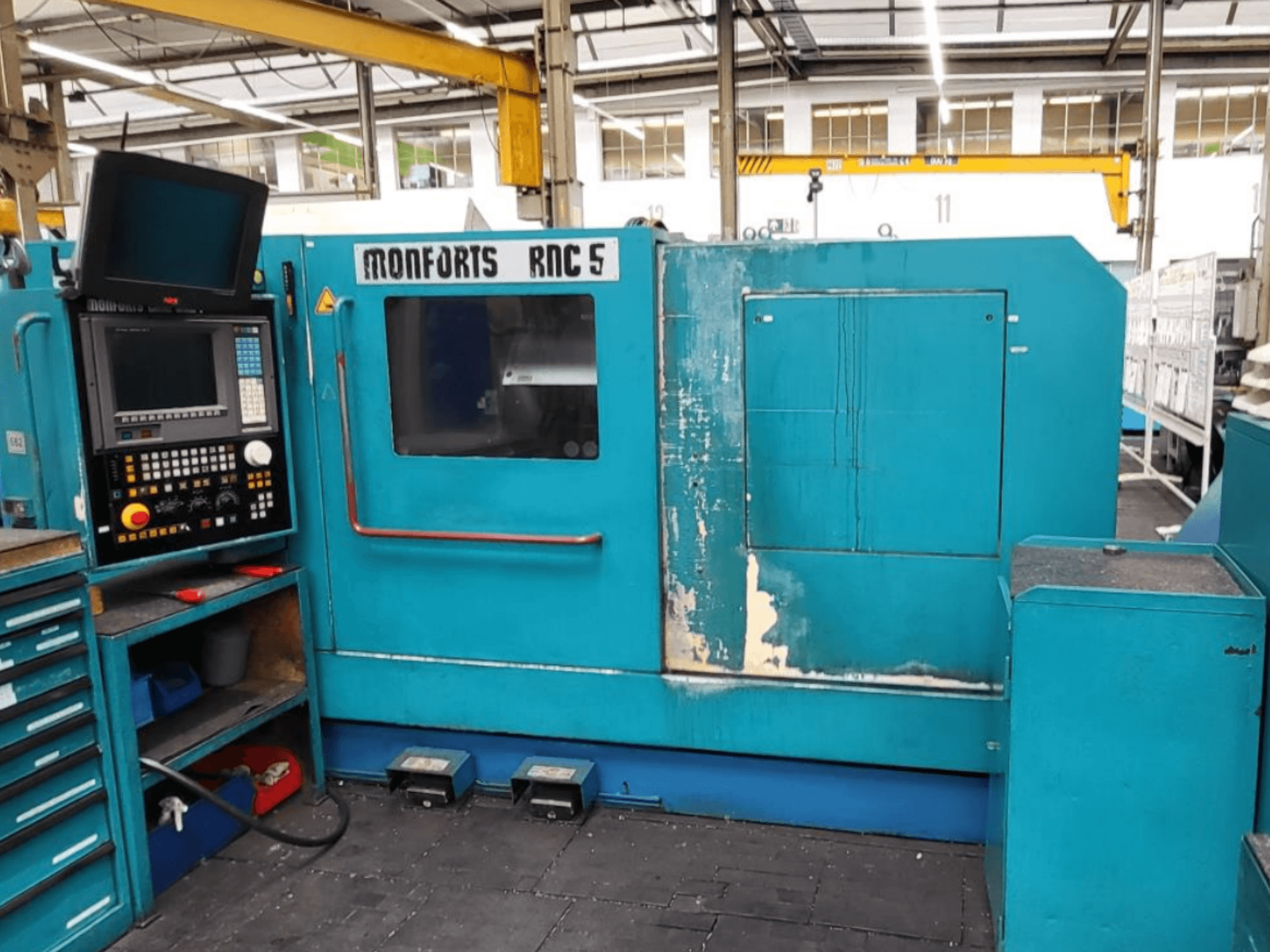

Horizontal turning machine manufactured in 1992. This Monforts RNC 5 features a maximum turning diameter of 340 mm and a turning length of 1000 mm. It is equipped with a control system from Fanuc Series 15 T and offers 12 tool positions for enhanced versatility. If you are looking to get high-quality turning capabilities, consider the Monforts RNC 5 machine we have for sale. Contact us for further details.

Overview

brand: Monforts
year: 1992
MODEL: RNC 5
production hours: 60000
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Monforts RNC 5

Control Unit

Control Brand: FANUC
Control Model: Series 15 T

Movement

Number of Axes: 2
X-axis Travel: 340 mm
Z-axis Travel: 1000 mm

Technical Specification

Counter Spindle: No
Driven Tools: Yes
Spindle Speed: 3000 RPM
Tool Stations: 12

Additional Information

- Typical Workpiece Materials: Case-hardening steel

- Typical Workpiece Components: Shafts, gears

- Production Environment: Single parts and small series

- Max. Swing Diameter over Bed: 600 mm

- Swing Diameter over Bed Slide: 450 mm

- Max. Turning Diameter: 340 mm

- Max. Turning Length: 1000 mm

- Turning Diameter Range: 50 - 250 mm

- Number of Tool Positions: 12 tools

- Driven Tools Power: 4.5 kW

- Driven Tools Speed: 3000 rpm

- Counter Spindle: No (Single main spindle machine)

- Material Clearance / Spindle Bore: 85 mm

- Bar Capacity Max.: 78 mm

- Chuck Work Max Weight: 25 kg

- Center Work Max Weight: 35 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
