➤ Miyano LZ-01RY2 Lathe Machine - Used

Show in original language

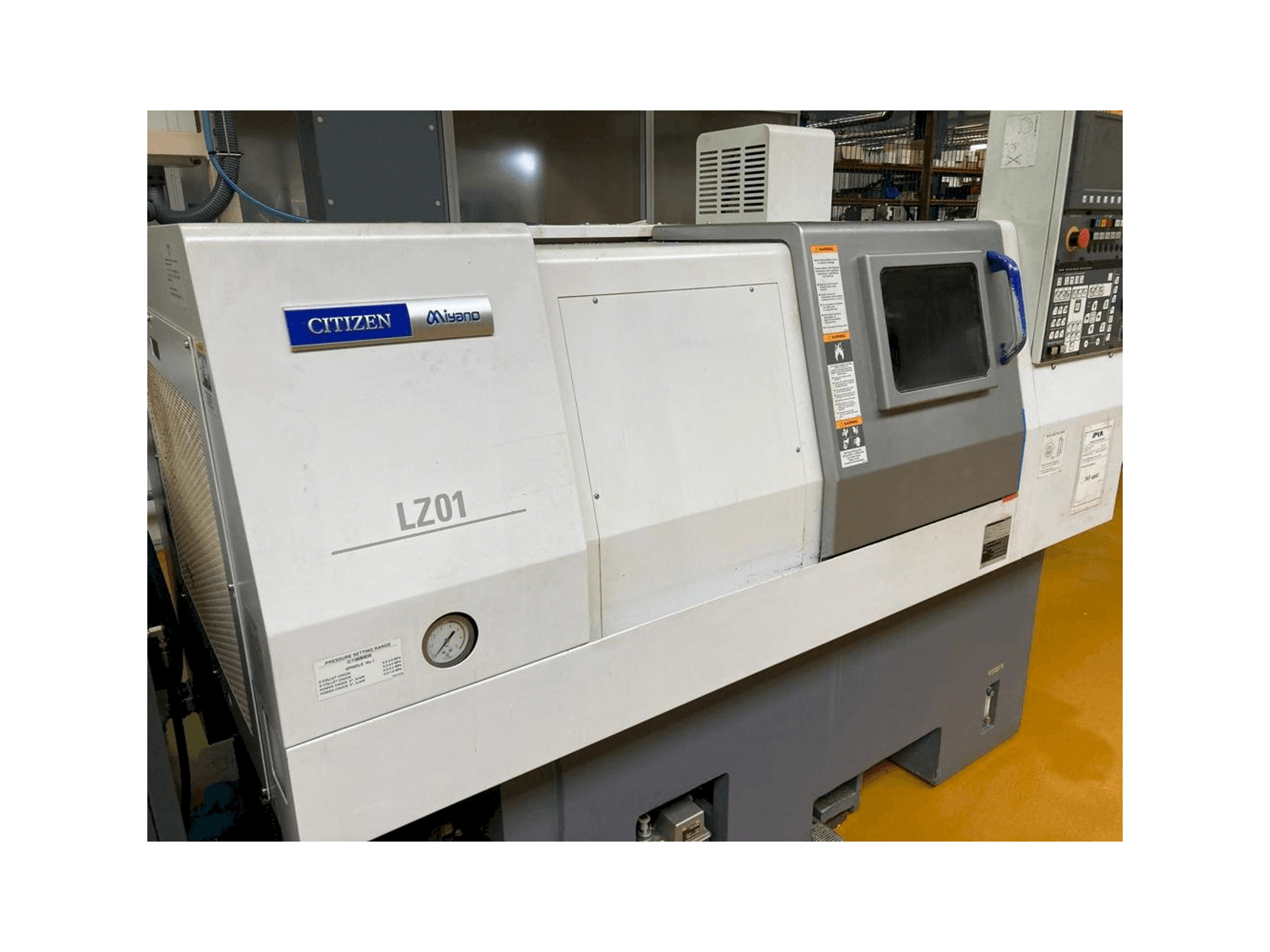

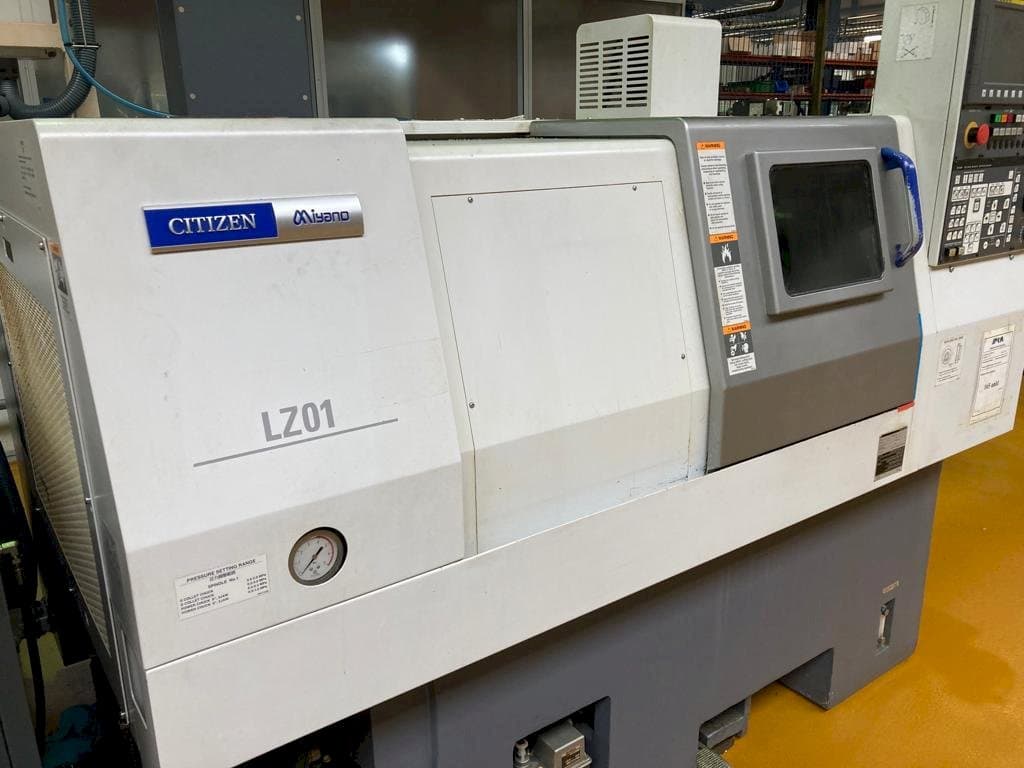

This Miyano LZ-01RY2 Lathe machine was built in 2018 in Japan and has been operative for 5511 hours. It’s equipped with a FANUC Series Oi-TD Control unit. This 4 axis machine works with a spindle speed between 60 - 6000 and a universal automatic parts feeder. This machine comes with a high pressure equipment Müller Combiloop CL4-400.

Overview

brand: Miyano
year: 2018
MODEL: LZ-01RY2
production hours: 5511
application type: Turning
Location: Spain
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - Miyano LZ-01RY2

Control Unit

Control Brand: FANUC
Control Model: Series Oi-TD

Dimensions

Machine Depth: 1555 mm
Machine Height: 1680 mm
Machine Weight: 4000 kg

Movement

X-axis Travel: 245 mm
Y-axis Travel: -35 mm
Z-axis Travel: 240 mm

Technical Specification

Number of Tools: 12
Spindle Speed: 6000 RPM

Additional Information

Additional equipment

High Pressure Equipment Müller Combiloop CL4-400

Machine Benefits

Qualitative Machine Benefits

Machine in perfect condition

Technical Machine Benefits

Max. Bar diameter on main spindle 70 mm
Max. Bar diameter on main subspindle 80 mm
Inner diameter of spindle 46 mm
Number of motorized stations on turret 6
Maximum workpiece size in the feeder Ø70x80 mm
Minimum workpiece size in the feeder Ø10x10 mm
Maximum workpiece weight in the feeder 0,7x2 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
