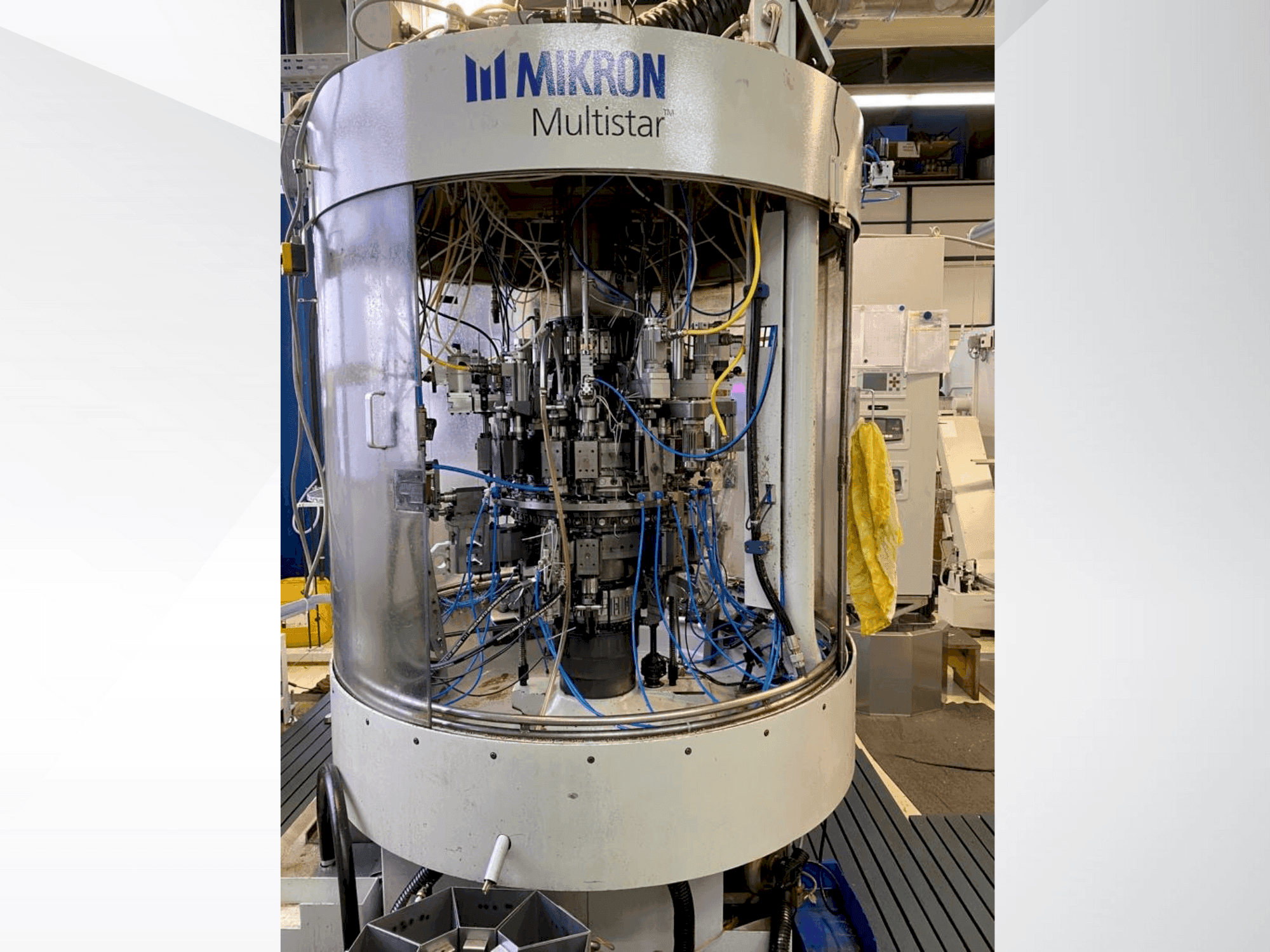

Front view of MIKRON Multistar CX 24 (2003)  machine

MIKRON Multistar CX 24

MIKRON - Multistar CX 24

2003

Rs. 12,431,550

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This MIKRON Multistar CX 24 Rotary Transfer Machine was manufactured in the year 2003 in Switzerland. It excels in accurately producing part families and intricate workpieces in large quantities. Its table index offers exceptional repeatability of ± 2.5 µm. With 24 stations equipped with up to 44 machining units, it ensures incredibly high output rates. This Rotary Transfer Machine located in Germany comes with loading station (brass D= 3.9mm), unloading station, part selector (8 compartment, see picture), lateral drilling unit, rotating straightener (October 2023 completely new in stock), feed / sawing unit (control and inverter overhauled in 2021), pneumatic loading (via feed pipe), chip conveyor with waste water pump, KNOLL coolant system (2,000 liters) with drum screen filter, flushing pump and vacuum pump including low-pressure pump (5 bar) and high-pressure pump (60 bar). Tailored for industries such as electrical, automotive, gas, medical, and watchmaking, the Mikron Multistar CX-24 is renowned for its precision, speed, adaptability, and ability to be tailored to specific needs – making it a standout performer in its class. Several modifications have been made for this machine, from cables replacement to complete overhaul of the saw (see extra information below for full description of all modifications). Product brochures (DE/EN) attached for more details information on technical specifications. Contact us anytime for further questions.

Overview

  • brand: MIKRON
  • year: 2003
  • MODEL: Multistar CX 24
  • application type: Milling
  • Location: Germany
  • machine type: Milling Machine
  • availability: Immediately
  • GINDUMAC ID: DE-MIL-MIK-2003-00002

Technical Information

General Data

  • Measurements width: 1950 mm
  • Measurements depth: 5200 mm
  • Measurements height: 2900 mm
  • Machine weight: 4500 kg

Main drive

  • Spindle speed range: 23000 1/MIN

Tools

  • Number of stations: 24

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - 1 x loading station (brass d= 3. 9mm)
      • - 1 x unloading station
      • - 1 x part selector (8 compartment, see picture)
      • - 1 x lateral drilling unit
      • - 1 x rotating straightener (october 2023 completely new in stock)
      • - 1 x feed / sawing unit (control and inverter overhauled in 2021)
      • - 1 x pneumatic loading (via feed pipe)
      • - 1 x chip conveyor with waste water pump
      • - 1 x knoll coolant system (2,000 liters) with drum screen filter, flushing pump and vacuum pump incl. Low-pressure pump (5 bar) and high-pressure pump (60 bar)
    • Qualitative Machine Benefits:
      • - Several modifications made from motor and sensor cables replacement to complete overhaul of the saw (see extra information for full description of the modifications)

    Extra information

    • - The following modifications were made to the system: Machine (All motor cables replaced / All sensor cables replaced / PLC program was adapted to show and hide collets / Conversion to Knoll coolant system / Circuit diagram was changed by hand / Frequency converter was replaced / Parts selector was attached to the machine together with oil pump for oil return. /// Saw: The saw control system was converted to a Mitsubishi i-QR control system // The complete electronics of the saw were renewed // The saw was completely overhauled mechanically.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
