MIKRON HSM 600 U Prodmod
MIKRON - HSM 600 U Prodmod
2005
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- MIKRON HSM 600 U Prodmod Vertical Machining Center

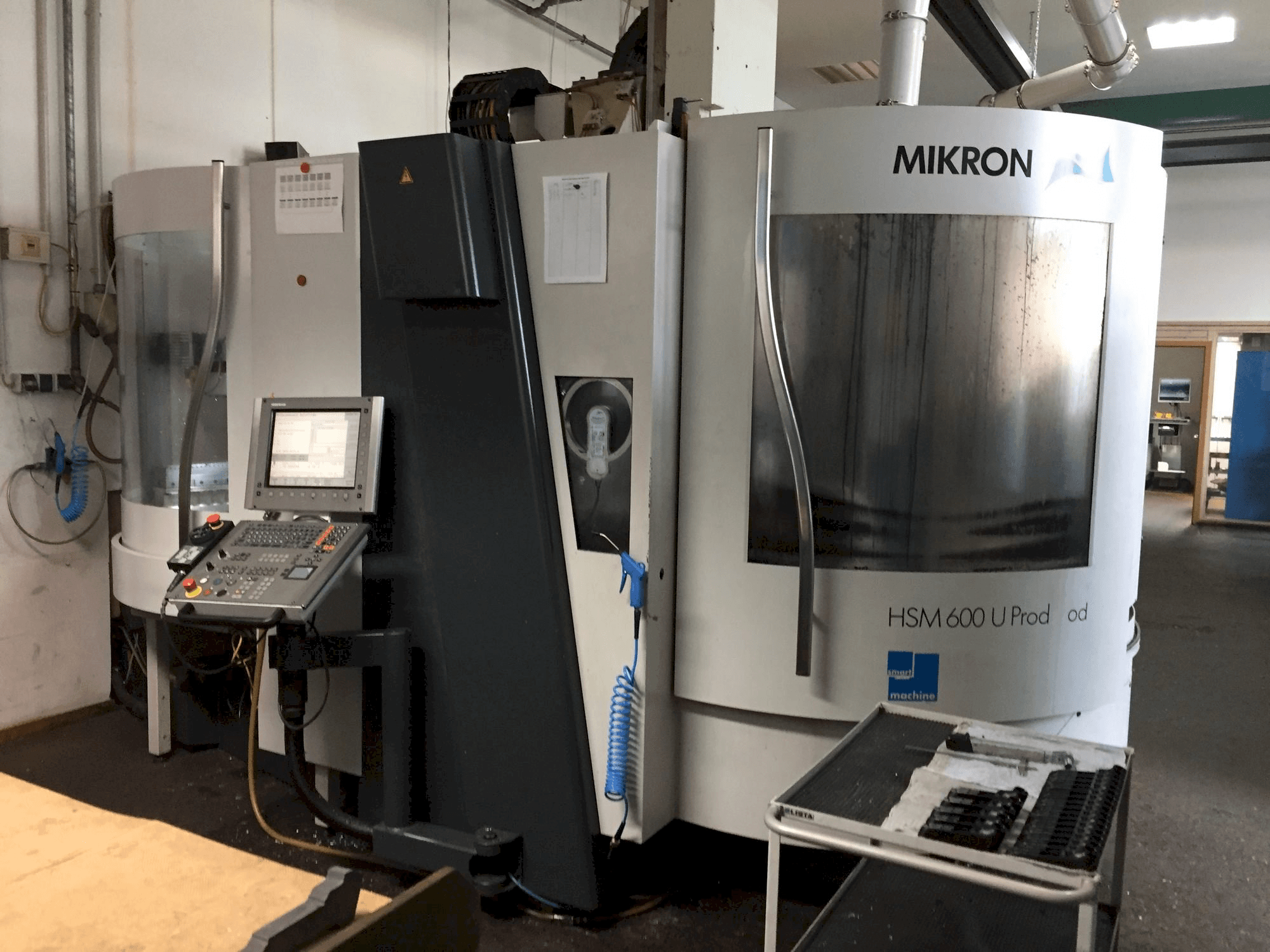

This MIKRON HSM 600 U Prodmod Vertical Machining Center was built in the year 2005 in Switzerland. It is equipped with a Heidenhain iTNC 530 control unit. This machine incorporates a spindle speed range 36 - 24,000 rpm.
Overview
- brand: MIKRON
- year: 2005
- MODEL: HSM 600 U Prodmod
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Heidenhain
- GINDUMAC ID: DE-MIL-MIK-2005-00001
Technical Information
General Data
- Measurements width: 6500 mm
- Measurements depth: 5500 mm
- Measurements height: 3000 mm
- Machine weight: 8300 kg
Control Unit
- Brand: Heidenhain
- Model: iTNC 530
Main drive
- Spindle speed range: 36 - 24000 1/MIN
Movement
- X-AXIS Movement: 800 mm
- Y-AXIS Movement: 600 mm
- Z-AXIS Movement: 500 mm
Workpiece
- Workpiece weight: 150 kg
Tools
- Type of tool holder: HSK 63
Additional Information
- Technical Machine Benefits:
- - Tool magazine: 170
- - 5-axis
- - Table clamping surface 280 x 280 mm
- - Clamping system: upc zero point clamping system
- - Feed rates (x/y/z) 20 / 20 / 40 m/min
- - Feed rapid traverse: 50 m/min
- - High-speed machining center for production use. The basis is the proven HSM basic machine, which is characterised by high dynamics, compactness, variety of variants and ergonomics is designed. The ProdMod expansion stage also has a tool storage tower that can hold 220 tools offers space. A work area cladding with chip flushing nozzles and various Expansion stages on chip conveyors and coolant treatment systems complete the system. Besides the Mikron pallet changers also provide an interface for connecting a third-party robot available.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
