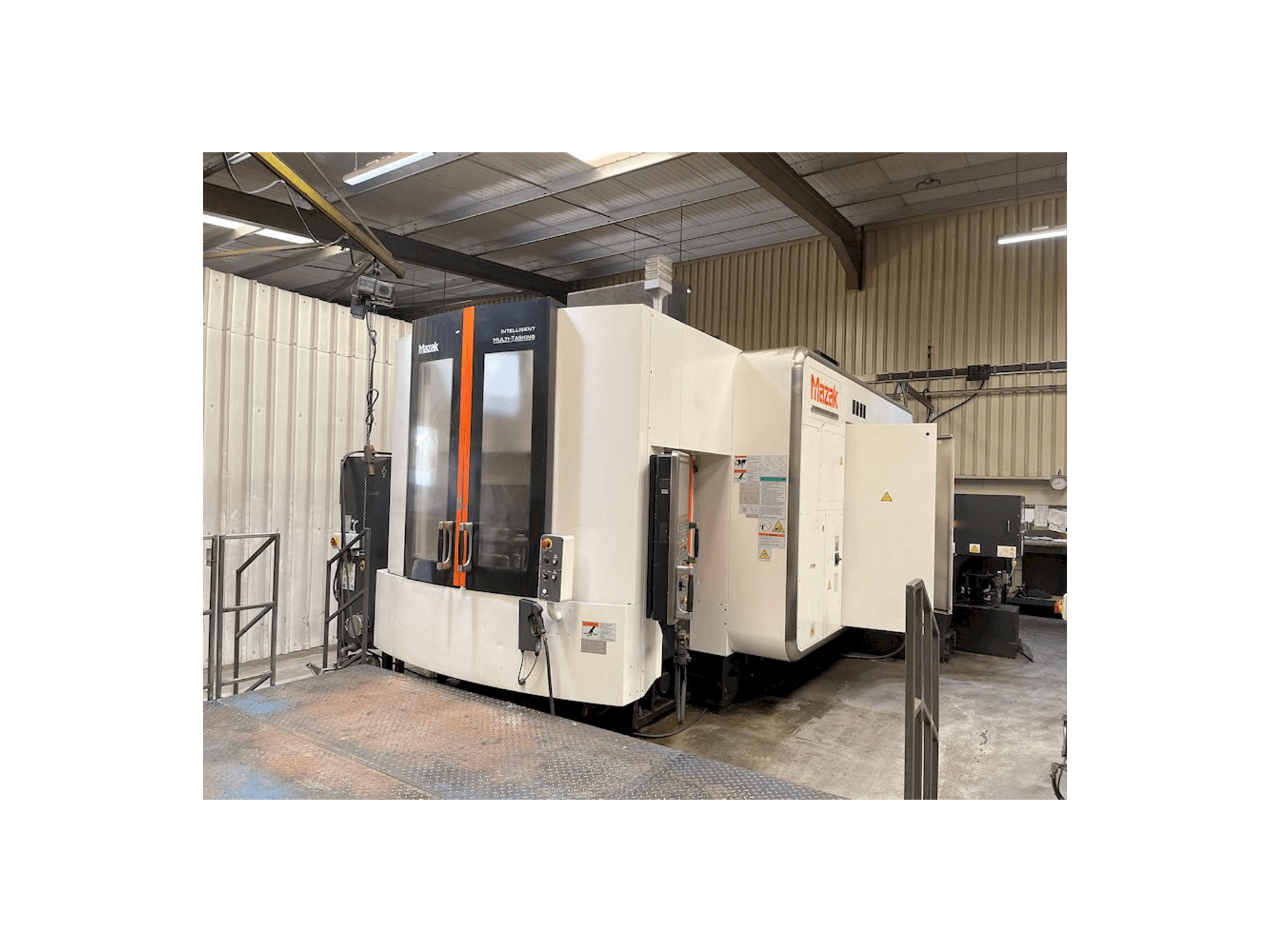

Front view of Mazak VARIAXIS i-800 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak VARIAXIS i-800

Photo Gallery

Mazak - VARIAXIS i-800GB-MIL-MAZ-2015-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak VARIAXIS i-800 Vertical Machining center

Show in original language

This Mazak VARIAXIS i-800 Vertical Machining center was made in Japan in 2015. It has 38723 hours of which 20364 are cutting hours. This 5 axis machine is operated through a Mazatrol Matrix 2 control unit. It works with a spindle speed up to 10000 rpm. It comes with a tool setter and a spindle probe. Very good condition.

Overview

brand: Mazak
year: 2015
MODEL: VARIAXIS i-800
production hours: 20364
application type: Milling
Location: United Kingdom
machine type: Universal Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak VARIAXIS i-800

General Data

Measurements width: 5580 mm
Measurements depth: 2695 mm
Measurements height: 3494 mm
Machine weight: 21000 KG

Control Unit

Model: Matrix 2
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Spindle motor power: 37 kW
Number of axis: 5

Movement

X-AXIS Movement: 730 mm
Y-AXIS Movement: 850 mm
Z-AXIS Movement: 560 mm

Workpiece

Workpiece drm: 800 mm
Workpiece weight: 1000 KG

Table

Outer length: 800 mm
Outer width: 800 mm
Number of tslots: 5
Distance between: 18 mm
Min distance between vertical spindle and table: 230 mm
Max distance between vertical spindle and table: 790 mm

Tools

Slots in storage: 30
Max weight: 20 KG
Max tool diameter: 125 / 210 mm
Max tool length: 400 mm
Type of tool holder: BT 50

Media

Main electronic connection: 400V / 60Hz
Power consumption: 78.3 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - A-axis: −120° ~ +30°
- - C-axis: ±360°
- - Rapid feedrates x/y/z-axis: 42 m/min (a/x/c 18000 °/min)
- - Cutting feedrate x/y/z-axis: 42 m/min (a/x/c 9000 °/min)
- - Tool setter
- - Coolant
- - Spindle probe
Qualitative Machine Benefits:
- - Includes machine manual
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
