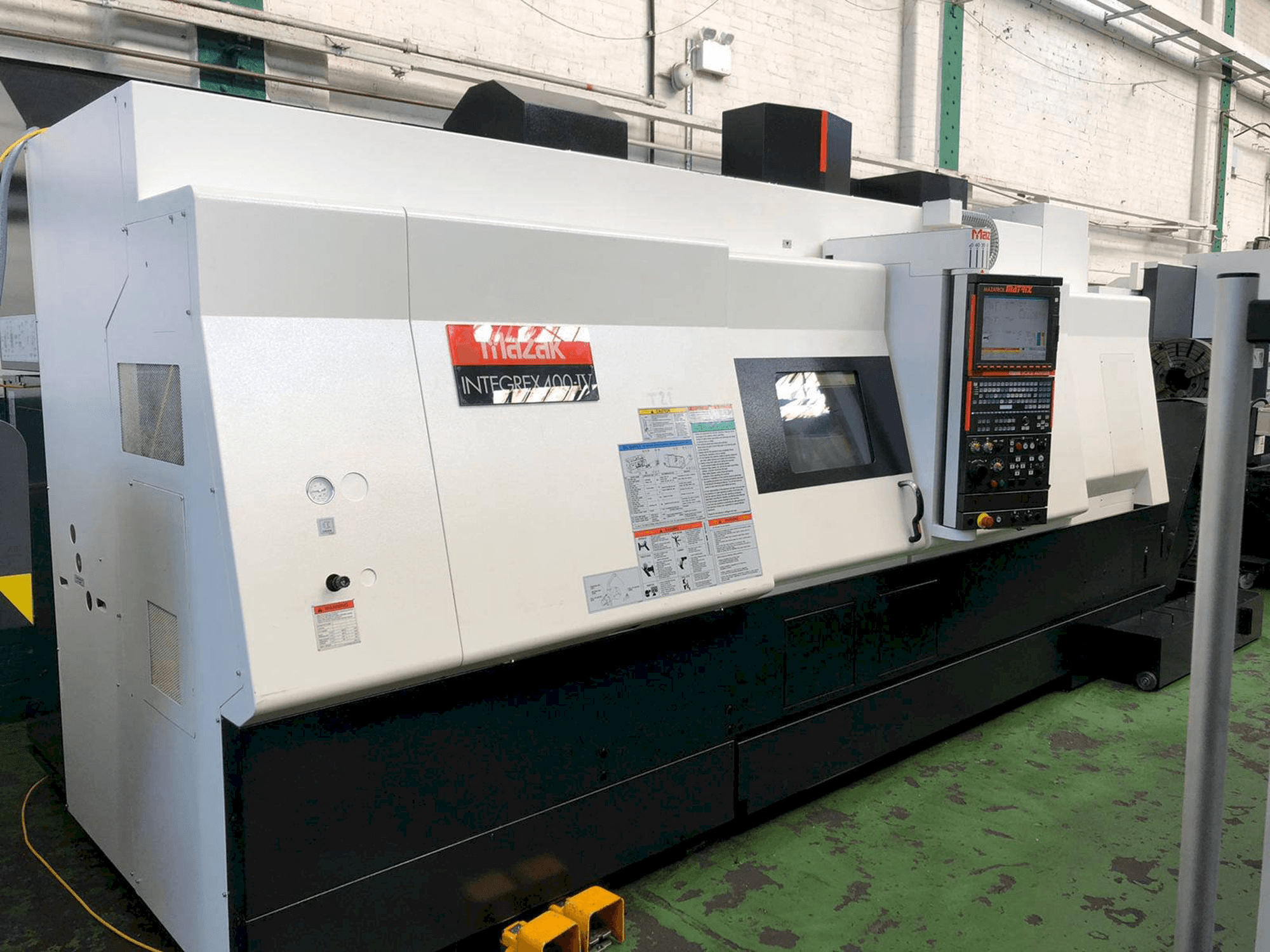

Front view of Mazak Integrex 400-IV machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Integrex 400-IV

Photo Gallery

Mazak - Integrex 400-IVGB-TUR-MAZ-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak Integrex 400-IV Lathe

Show in original language

This Mazak Integrex 400-IV Lathe was built in 2011 in Japan. Equipped with a Mazatrol Matrix Control unit, this machine can work with a spindle speed range of 35 – 3300 rpm.

Overview

brand: Mazak
year: 2011
MODEL: Integrex 400-IV
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
control unit brand: MAZATROL

Technical Information - Mazak Integrex 400-IV

Control Unit

Model: Mazatrol Matrix
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 35 – 3300 1/MIN
Spindle motor power: 30 kW

Movement

X-AXIS Movement: 630 mm
X-AXIS Rapid traverse: 38m/min
Y-AXIS Movement: 230 mm
Y-AXIS Rapid traverse: 26m/min
Z-AXIS Movement: 1585 mm
Z-AXIS Rapid traverse: 38m/min
W-Axis Rapid traverse: 6m/min

Workpiece

Workpiece weight: 1000 kg

Tools

Slots in storage: 40

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Swing over bed 760 mm
Maximum cutting length 1524 mm
Maximum weight in chuck 650 kgs
Milling head: single spindle to accommodate capto tooling
Milling speeds 15-12,000 rpm
Spindle thru hole dia. 112mm
Kitagawa b-21215x 15” dia. 3 jaw powered chuck
Coolant tank capacity 444 litres

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
