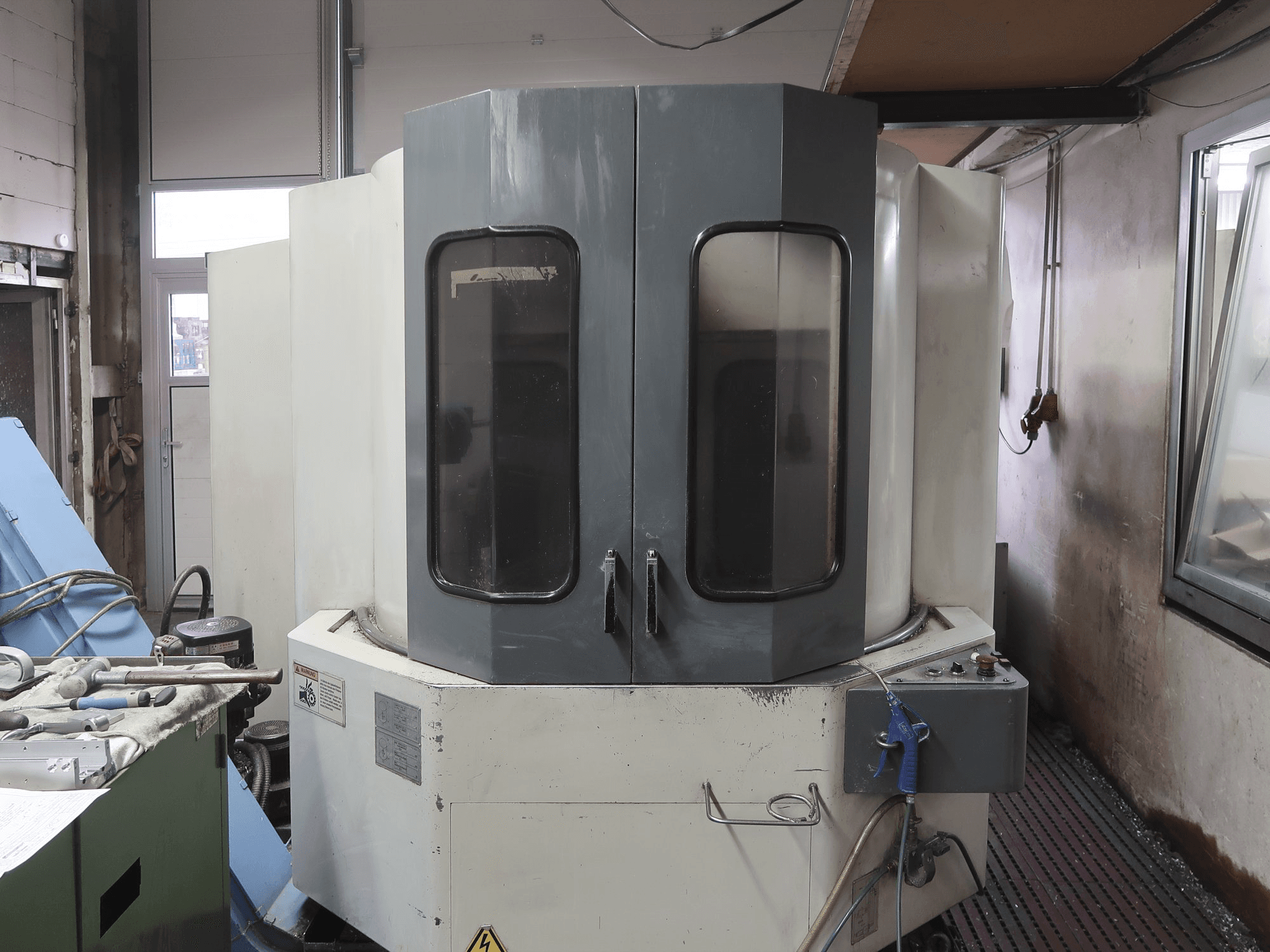

Mazak HTC-400 Milling Machine

Show in original language

This Mazak HTC-400 is a Milling Machine which has been manufactured in 1998 in Japan and is equipped with a Mazak Mazatrol M20 control unit. This product stands out due to its good range of movement as well as its good table load. Furthermore this horizontal machine has a 2x palette changer and a chip conveyor available.

Overview

brand: Mazak
year: 1998
MODEL: HTC-400
production hours: 50000
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak HTC-400

General Data

Measurements width: 3555 mm
Measurements depth: 2260 mm
Measurements height: 2280 mm
Machine weight: 6700 kg

Control Unit

Model: Mazatrol M20
Interface: serial
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/min
Spindle motor power: 5.5 kW
Tool taper: ISO 40

Movement

X-AXIS Movement: 580 mm
X-AXIS Working Feed: 0 - 8000 mm/min
X-AXIS Rapid traverse: 30000 mm/min
X-AXIS Backlash: 0.02 mm
Y-AXIS Movement: 510 mm
Y-AXIS Working Feed: 0 - 8000 mm/min
Y-AXIS Rapid traverse: 30000 mm/min
Z-AXIS Movement: 510 mm
Z-AXIS Working Feed: 0 - 8000 mm/min
Z-AXIS Rapid traverse: 30000 mm/min
Z-AXIS Backlash: 0.01 mm

Workpiece

Workpiece drm: 560 mm
Workpiece z: 630 mm
Workpiece weight: 300 kg

Table

Outer length: 400 mm
Outer width: 400 mm

Tools

Slots in storage: 24
Max weight: 8 kg
Max tool diameter: 95 / 115 mm
Max tool length: 380 mm

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 28 kVA
Air pressure: 6 bar
Lubrication tank: 300 L
Oil tank: 3 L
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
