Matec 30 HV

Matec - 30 HVBE-MIL-MAT-2005-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Matec 30 HV Vertical Machining Center

Show in original language

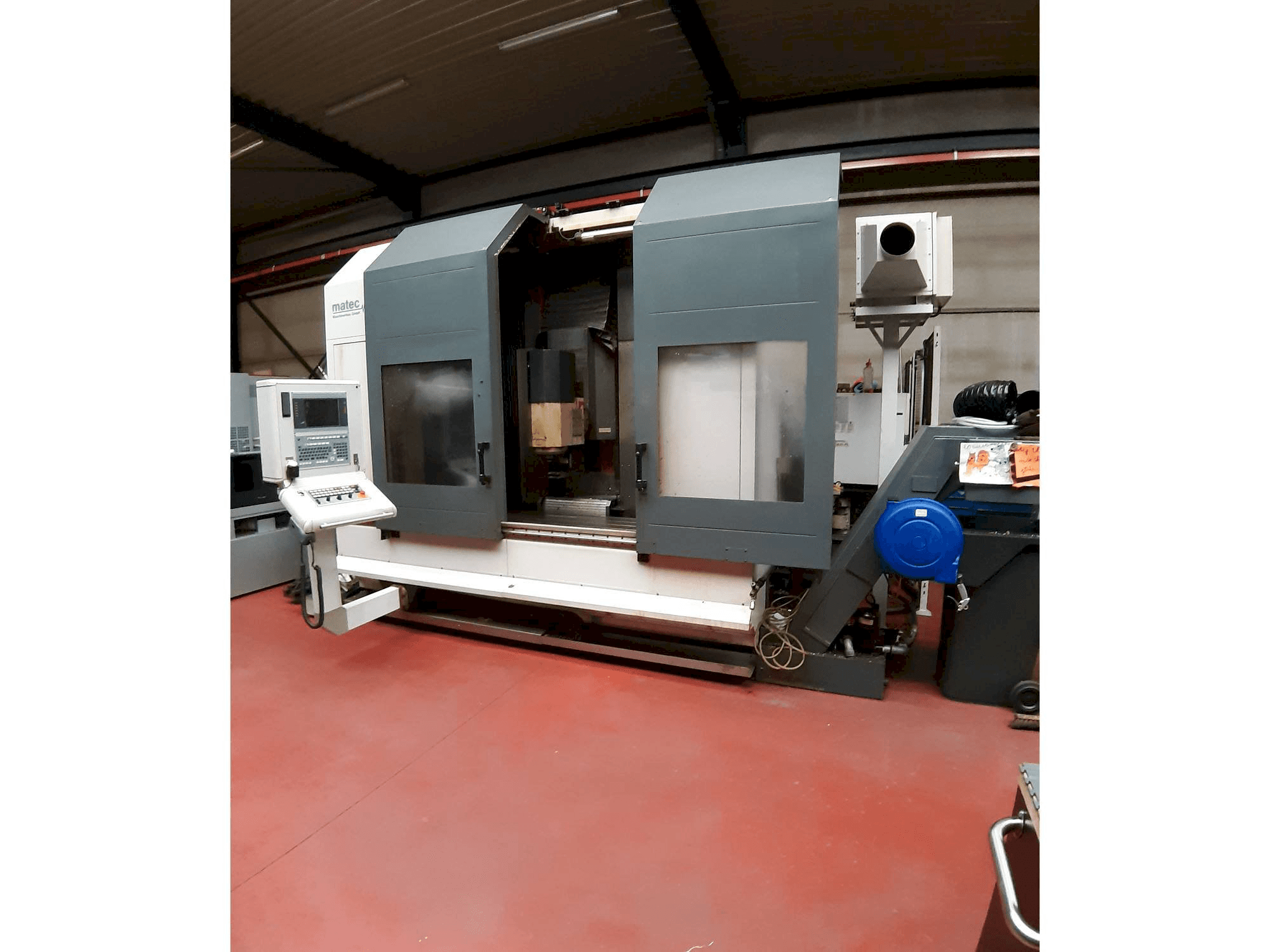

This Matec 30 HV Vertical Machining center was manufactured in the year 2005 in Germany. It is equipped with a Bosch Osa 3 control unit and has 4 + 1 axis. The machine has a spindle speed of 18000 rpm.

Overview

brand: Matec
year: 2005
MODEL: 30 HV
application type: Milling
Location: Belgium
machine type: Vertical Machining Centre
availability: Sold
control unit brand: BOSCH

Technical Information - Matec 30 HV

Control Unit

Model: Osa 3
Brand: BOSCH

Main drive

Spindle speed range: 18000 1/MIN
Spindle motor power: 30 KW
Tool taper: SK40
Number of axis: 4 + 1

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 700 mm
B-AXIS Movement: +/-110Gr MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Extra wharehouse: 80 tool positions
- - Wharehouse in machine: 48 tool positions
- - Extra axis is a dividing head that is cnc controlled that can be positioned horizontally and vertically with a diameter of 250mm and a boring of 80mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
