➤ Used HAAS VF5-HE For Sale | gindumac.com

Show in original language

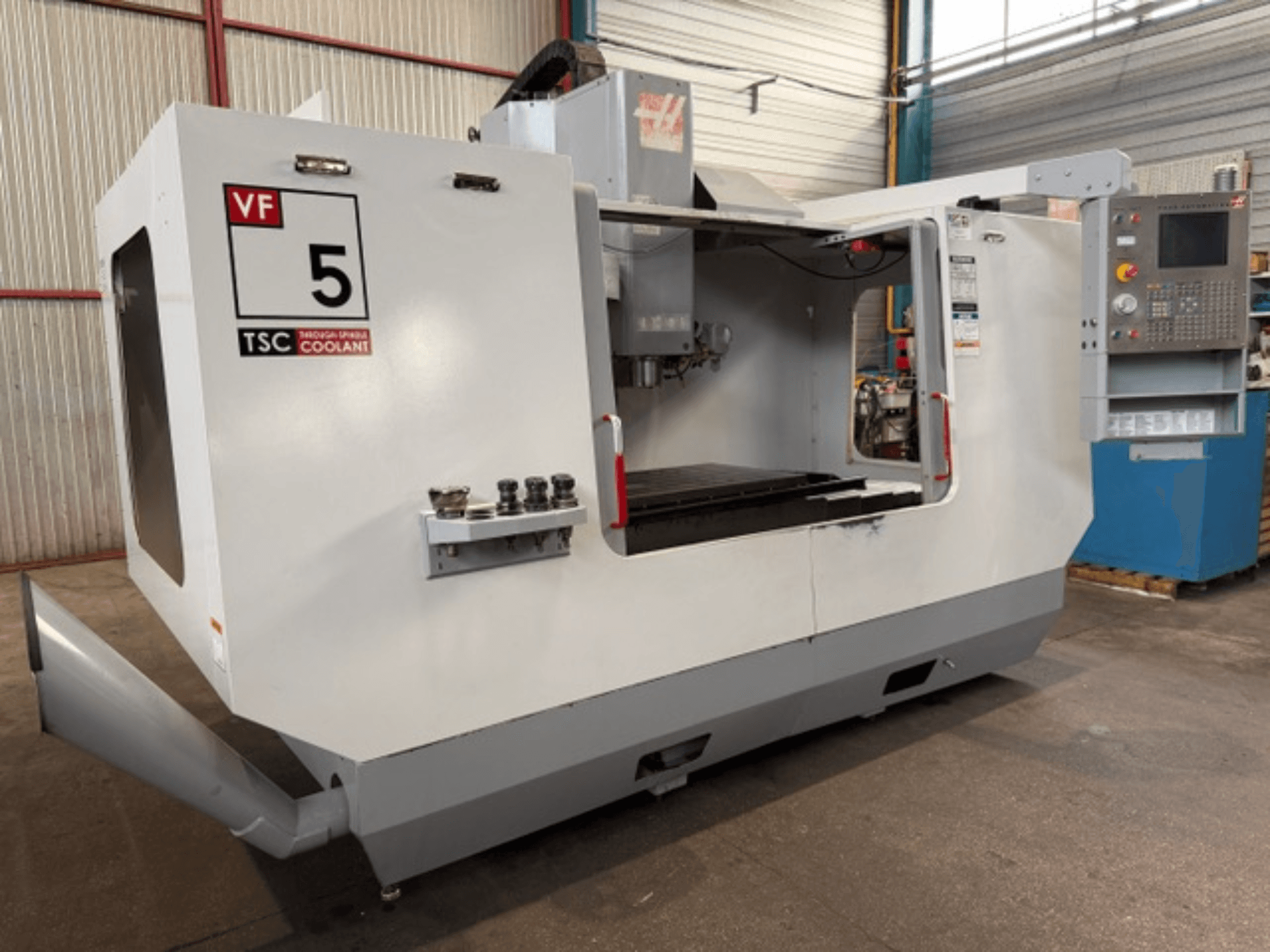

This 3-axis HAAS VF5-HE vertical machining centre was manufactured in 2005. It features a spacious table size of 1372 x 610 mm and a maximum table load of 1800 kg. The machine offers impressive X-axis travel of 1270 mm, Y-axis travel of 660 mm, and Z-axis travel of 635 mm. If you are looking to get high-quality machining capabilities, consider the HAAS VF5-HE machine we have for sale. Contact us for further details.

Overview

brand: HAAS
year: 2005
MODEL: VF5-HE
application type: Milling
Location: France
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF5-HE

Control Unit

Control Brand: HAAS

Dimensions

Table Load: 1800 kg

Movement

Number of Axes: 3
X-axis Travel: 1270 mm
Y-axis Travel: 660 mm
Z-axis Travel: 635 mm

Technical Specification

Spindle Speed: 18000 RPM
Taper Size: BT 40
Tool Stations: 20

Additional Information

Table dimensions: 1372 x 610 mm
Rapid traverse speed: 18,000 mm/min
Spindle motor power: 30 hp
Tool magazine capacity: 20 positions
Tool change time: 4.2 sec
USB port
3-color status light
Through-spindle coolant

Additional equipment

Tool probe
Renishaw wireless workpiece probe
Chip conveyor
Set of tool holders
Documentation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
