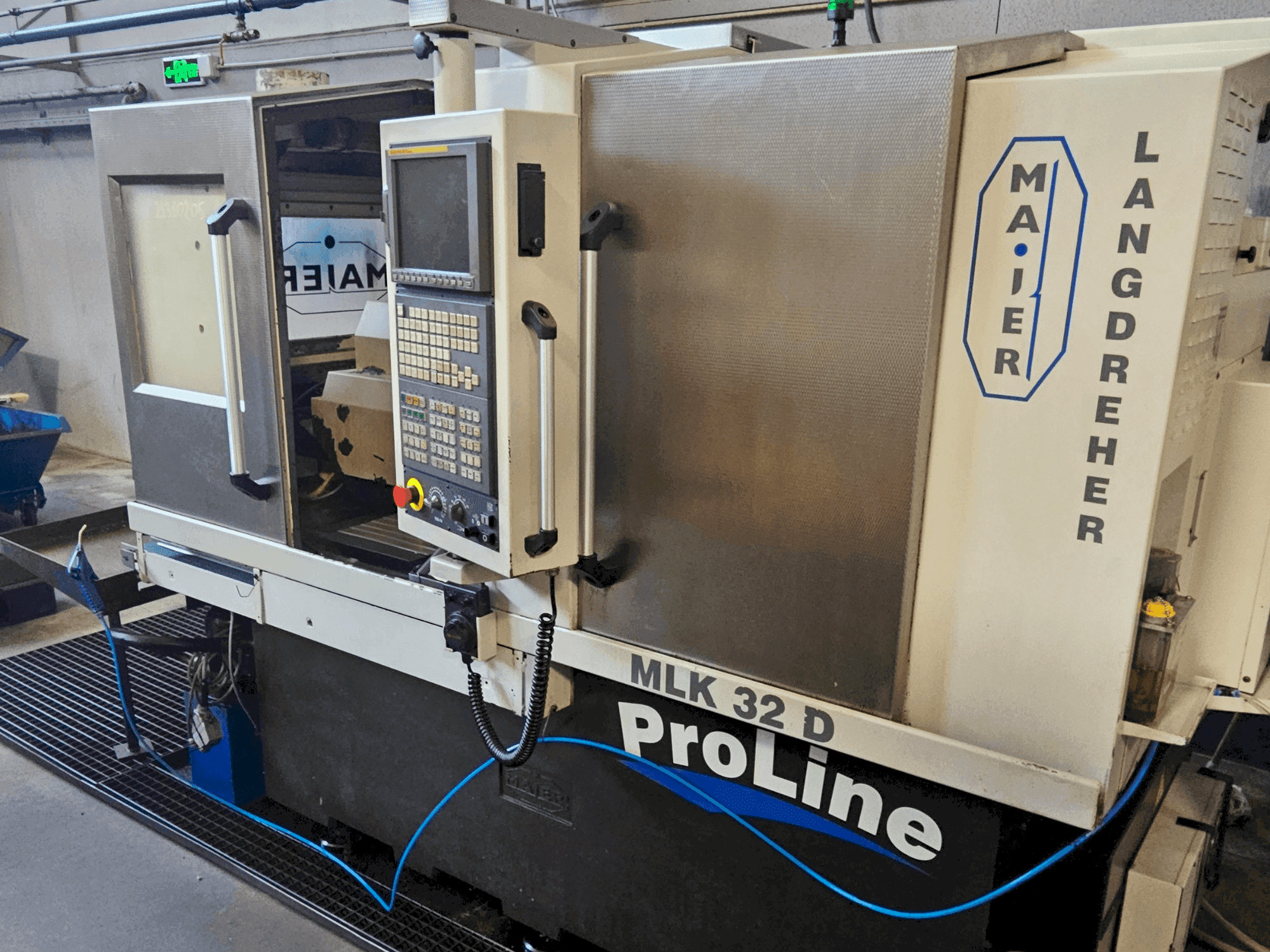

Maier MLK 32D

Photo Gallery

Maier - MLK 32DRO-TUR-MAI-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Maier MLK 32D For Sale | gindumac.com

Show in original language

This Maier MLK 32D was manufactured in 2007. It features a maximum bar diameter of Ø 32 mm, machining length per clamping of 310 mm, and a sub-spindle re-machining length of 200 mm. The machine includes a main spindle with a max speed of 8,000 rpm and a power of 5.5 kW. It also has a tooling system with up to 23 tool stations and approximately 14 live tools. Contact us for more information about this machine.

Overview

brand: Maier
year: 2007
MODEL: MLK 32D
application type: Turning
Location: Romania
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Maier MLK 32D

Control Unit

Control Brand: FANUC
Control Model: 16i-TB

Technical Specification

Spindle Power: 5.5 kW
Spindle Speed: 8000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Max bar diameter: 32 mm
Max machining length per clamping: 310 mm
Sub-spindle re-machining length: 200 mm
Axes configuration: up to 9 axes (x1, z1, y1, c1, x2, z2, c2, x3, z3) // c-axis indexing resolution: 0. 001°
Coolant delivery through tools and external nozzles
Optional high-pressure system (up to 80 bar)
Voltage: 220 v ac / 50 hz
Control voltage: 24 v dc
Total installed power: 16 kw
Max current: 60 a

Extra Information

Control Unit Type: MAIER PRO-GE Fanuc Fanuc 16i-TB Color LCD display with full keyboard Supports G-code, macros, tool offsets, synchronization Workpiece Synchronized sub-spindle (backworking) Tools Up to 23 tool stations Approx. 14 live tools (powered) Tool holders: ER16 / ER20 collets Rear tool block included Media Bar Feeder: FMB Turbo (servo-controlled) Bar diameter capacity: 5–42 mm Bar length capacity: up to 3.2 meters Fully CNC-synchronized

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
