KNUTH - Turnado 280/1500RO-TUR-KNU-2018-00001

Rs. 1,839,172
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

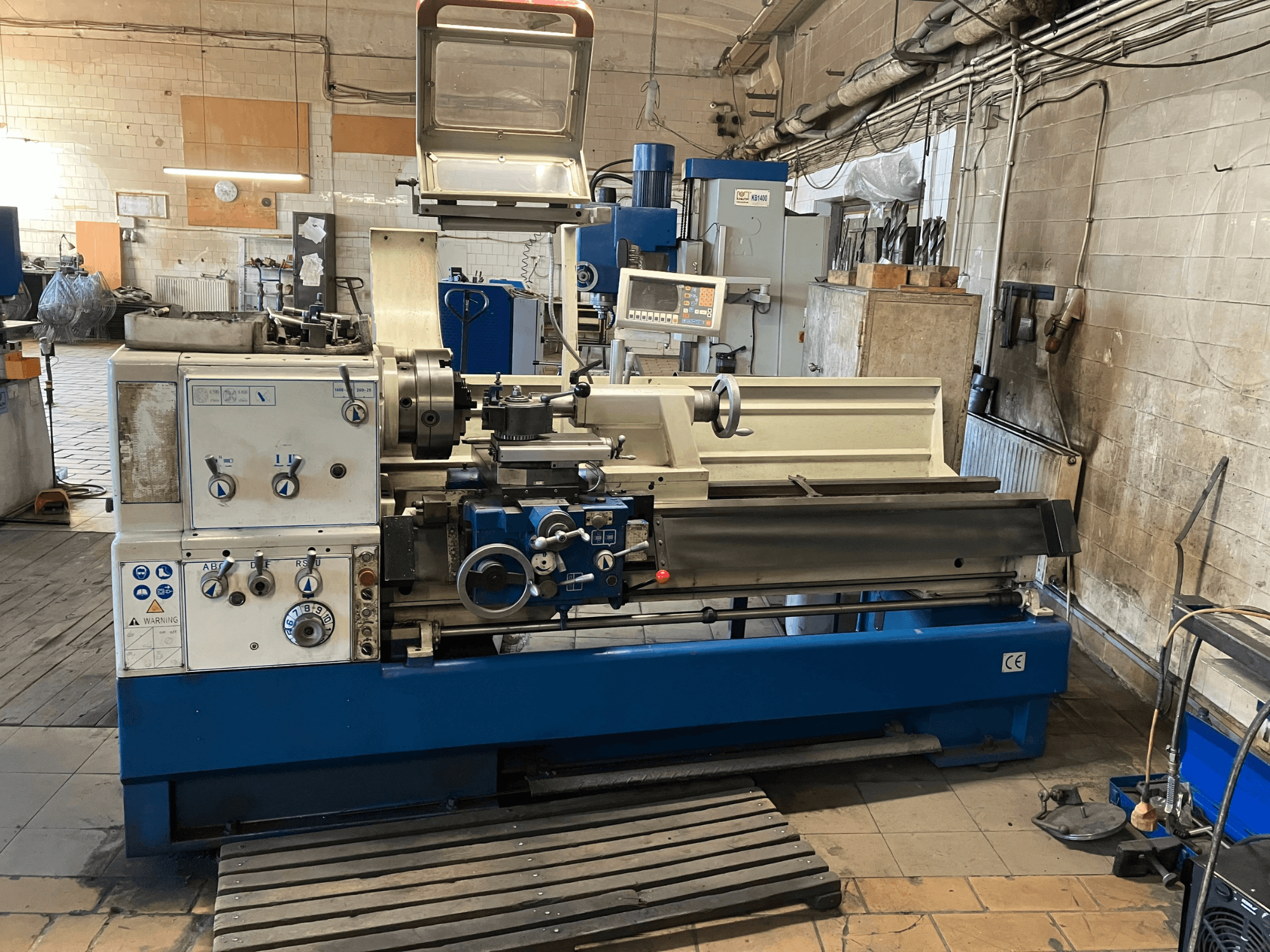

This 3-axis KNUTH Turnado 280/1500 was manufactured in 2018. It features a distance between centers of 1,420 mm and a swing over bed of 560 mm. The machine is equipped with a spindle speed range of 25 – 1,600 rpm and includes a 3-axis Digital Readout (DRO) and a quick change tool post. If you are looking to get high-quality turning capabilities, consider the KNUTH Turnado 280/1500 horizontal turning machine we have for sale. Contact us for further details.

Overview

  • brand: KNUTH
  • year: 2018
  • MODEL: Turnado 280/1500
  • application type: Turning
  • Location: Romania
  • machine type: Horizontal Turning Machine

Technical Information - KNUTH Turnado 280/1500

Movement

  • Number of Axes: 3
  • X-axis Travel: 315 mm
  • Z-axis Travel: 127 mm

Technical Specification

  • Counter Spindle: Yes
  • Driven Tools: No
  • Spindle Speed: 1600 RPM

Additional Information

Technical specifications

  • Distance between centers: 1,420 mm

  • Swing over bed: 560 mm

  • Swing over cross slide: 360 mm

  • Swing in gap: 790 mm

  • Gap length: 180 mm

  • Bed width: 350 mm

Travels

  • Compound slide swivel: ±52°

Spindle

  • Spindle nose: Camlock D1-8

  • Spindle bore: 80 mm

  • Spindle taper: MT7

  • Number of spindle speeds: 12

Feed rates

  • Longitudinal feed: 0.059–1.646 mm/rev

  • Cross feed: 0.020–0.573 mm/rev

Thread cutting

  • Metric threads: 0.2–14 mm (47 ranges)

  • Module threads: 0.1–7 mm (39 ranges)

  • Whitworth threads: 2–112 TPI (60 ranges)

  • Diametral pitch threads: 4–112 DP (50 ranges)

Tailstock

  • Tailstock taper: MT5

  • Tailstock quill diameter: 76 mm

  • Tailstock quill stroke: 180 mm

  • Tailstock offset adjustment: ±12 mm

Machine data

  • Main motor power: 7.8 kW

  • Voltage: 400 V

  • Frequency: 50/60 Hz

Additional equipment

  • 3-axis Digital Readout (DRO)

  • Quick Change Tool Post

  • Chip conveyor

  • Extensive standard tooling package

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
