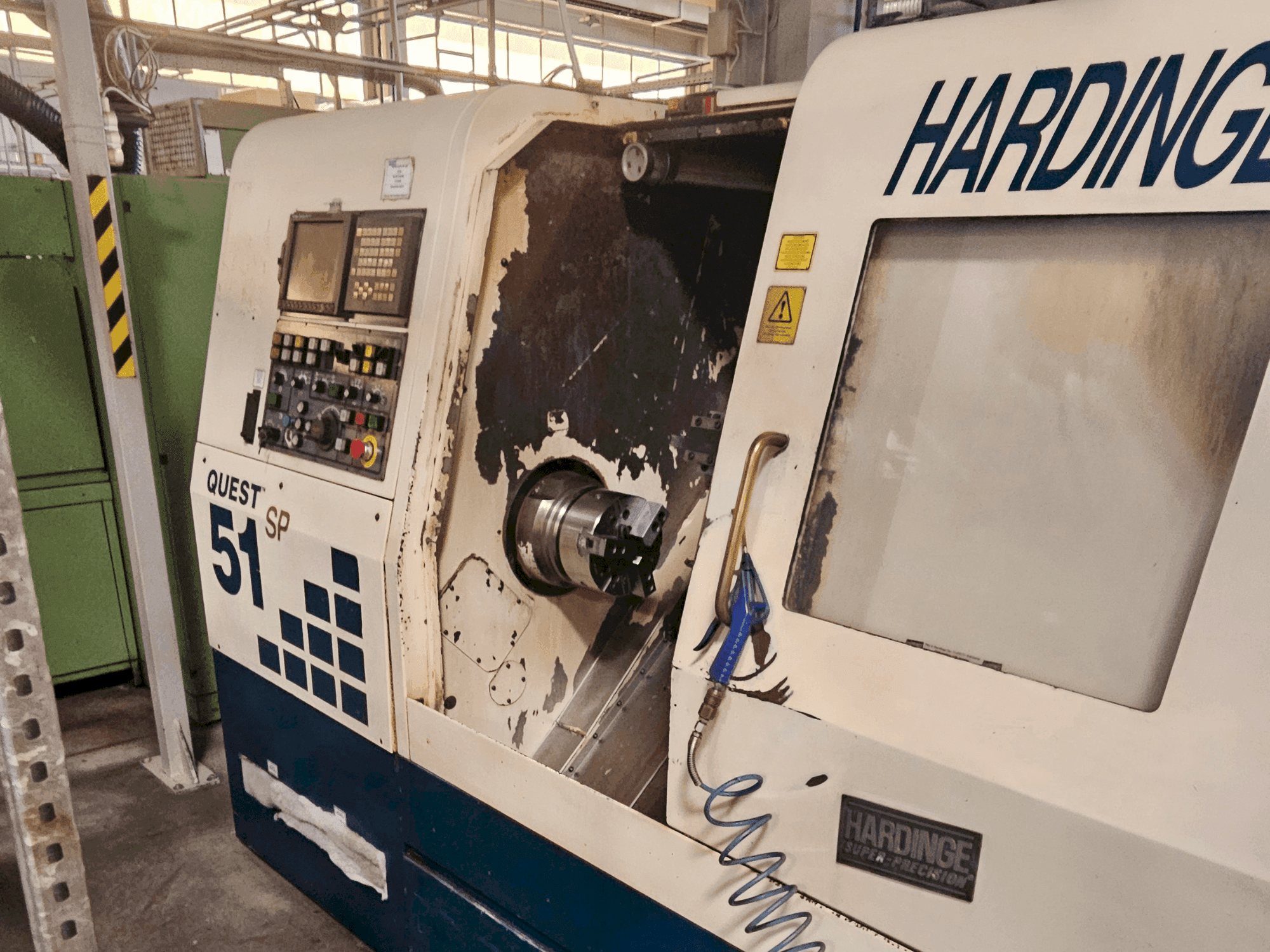

HARDINGE - Quest 51 SPRO-TUR-HAR-2001-00001

Additional equipment

• - High-speed tailstock
• - Parts catcher
• - Bar feed interface

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max turning diameter: 356 mm
  • - Bar-through hole (round collet): 51 mm, spindle bore 60 mm
  • - Distance between centers (z travel): 610 mm
  • - Live-tool motor: 3. 7 kw
  • - Rapid traverse: x = 1100 ipm / z = 1500 ipm
  • - Turret type: vdi30, 12-station live tooling turret
  • - C-axis & y-axis: integrated on main spindle turret, enabling multi-axis machining
  • - Collet system: 20c collets included
  • - 43750 power hours

Extra information

• - Machine still under power / Basic equipment: for VDI 30 tools, 12 stations/ Chisel cross-section, square, max. 25 mm/ Chisel shank diameter, max. 40 mm/ Switching time (from station to station) 0.1 s/ Equipped with 30 tools/ Chisel shank diameter with ER25 collet 2-6 mm/ Drive power at the tool tip: 3.7 kW/ Torque at the tool tip_: 21.7 Nm/ Speed range (in increments of 1 rpm) 80-80,000/ Optionally: VDI 40 tools, 10 stations/ Chisel cross-section. Square, max. 25 mm/ Tool shank diameter max. 40 mm/ Switching time (from station to station) 0.35 s/ Optional: driven VDI 40 tools in all stations -/ Tool shank diameter with ER32 collet 3 - 20 mm/ Drive power at the tool tip: 5.6 kW/ Torque at the tool tip: 35.3 Nm/ Speed range (in steps of | rpm) 60-6000/ Conventional Hardinge/ Turret head type T_ (inch or millimeter) with directional logic, 10 or 12 stations/ Tool shank cross-section, square, max. 25 mm/ Tool diameter, max. 40 mm/ Switching time (from station to station) 0.35 s/ Counter spindle - with belt drive or integral drive/ Spindle head (ANSI)/ 16C collet Round (opening) 42 mm/ Jaw chuck size 150 mm/ Step chuck (clamping width) 152.4 mm/ Drive power at 1500 rpm | Base speed 7.5 kW/ Torque 47.7 Nm/ Speed range (in increments of | rpm) with belt drive and integral antenna 60-6000/ Travel, max. 603.3 mm/ Path speed max. 38 rpm/ Hydraulic tailstock with encoder feedback/ Path speed max. 7.6 m/min/ Connected loads/ Machine dimensions: Length (with tailstock) 2758.5 mm/ Length (with counter spindle) 3008.7 mm/ Length with optional chip conveyor 3844.3 mm/ Depth 1943.1 mm/ Height 1905 mm/ Weight (approx.) 5552 kg
