Muratec MT 25 MC Lathe

Show in original language

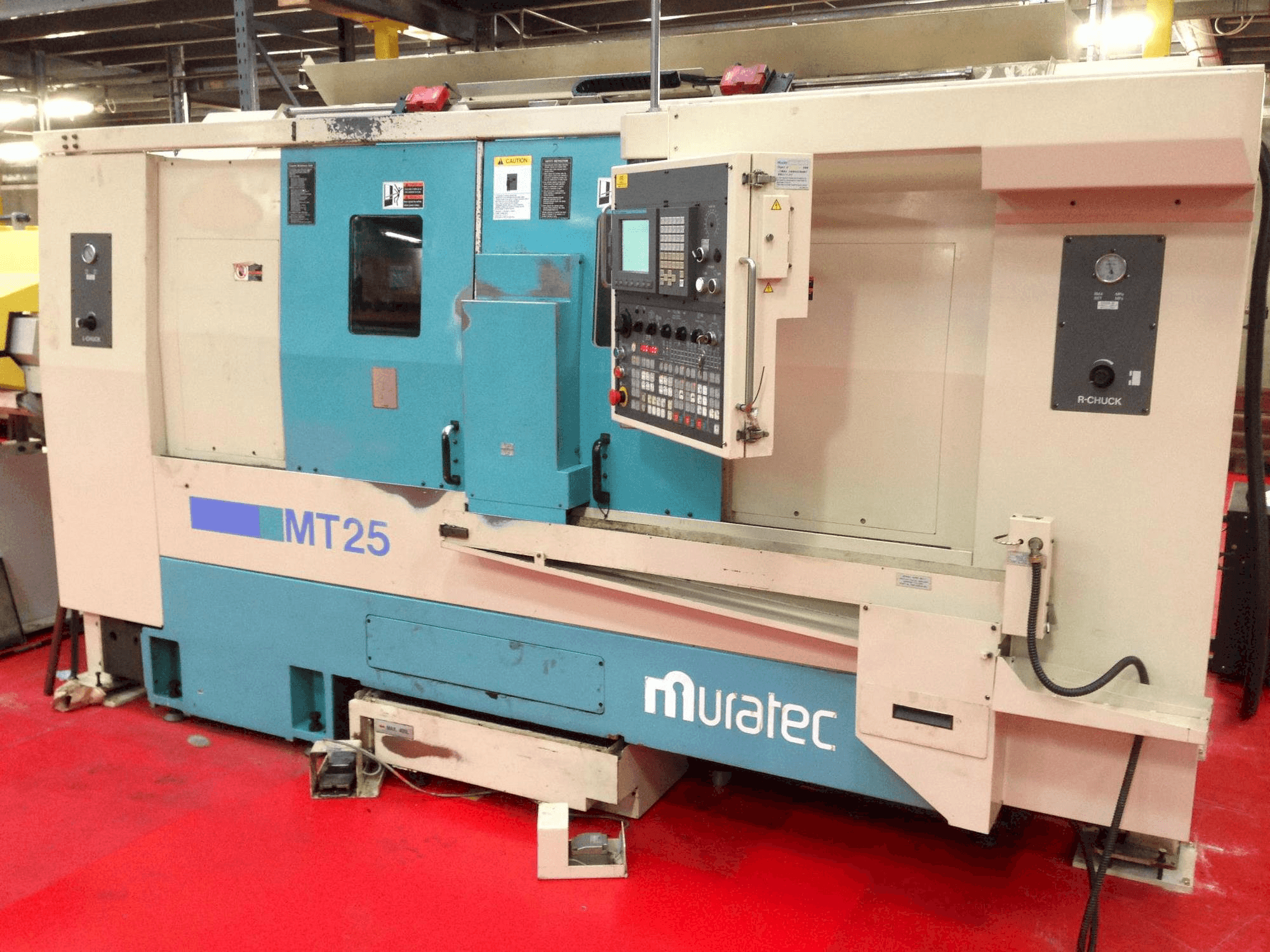

This Muratec MT 25 MC Lathe was manufactured in the year 2001 in Japan. It is equipped with a Fanuc 18i CNC control unit and has 7 axis. The machine has a spindle speed of 40-4000 rpm.

Overview

brand: Muratec
year: 2001
MODEL: MT 25 MC
application type: Turning
Location: Spain
machine type: Lathe
availability: IMMEDIATELY
control unit brand: Fanuc
GINDUMAC ID: ES-TUR-MUR-2001-00001

Technical Information

General Data

Measurements width: 4000 mm + 2000 mm bar loader
Measurements depth: 2300 mm
Measurements height: 2100 mm
Machine weight: 10400 kg

Control Unit

Brand: Fanuc
Model: 18i

Main drive

Number of spindles: 2
Spindle speed range: 40 - 4000 1/MIN
Spindle motor power: 15 kW
Number of axis: 7

Movement

X-AXIS Movement: 180 mm
Z-AXIS Movement: 930 mm

Turret

Number of turrets: 2
Number of tool slots: 15

Additional equipment

- Bar loader multifeed, maximum bar length 1.5 meters.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum chuck size: 254 mm
- - Max. Turning length 300 mm
- - Max. Turning diameter 380 mm
- - Length between centers 920 mm
- - Spindle nose a2-6
- - Spindle inside diameter 67 mm
- - Max. Turning diameter x in manual 340 mm
- - Max. Turning length z in manual 920 mm
- - Max. Turning diameter x in automatic 340 mm
- - Max. Latheable length z in auto 920 mm
Qualitative Machine Benefits:
- - Tailstock does not have but the second spindle has torque control and can perform the torque control and can perform tailstock function.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
