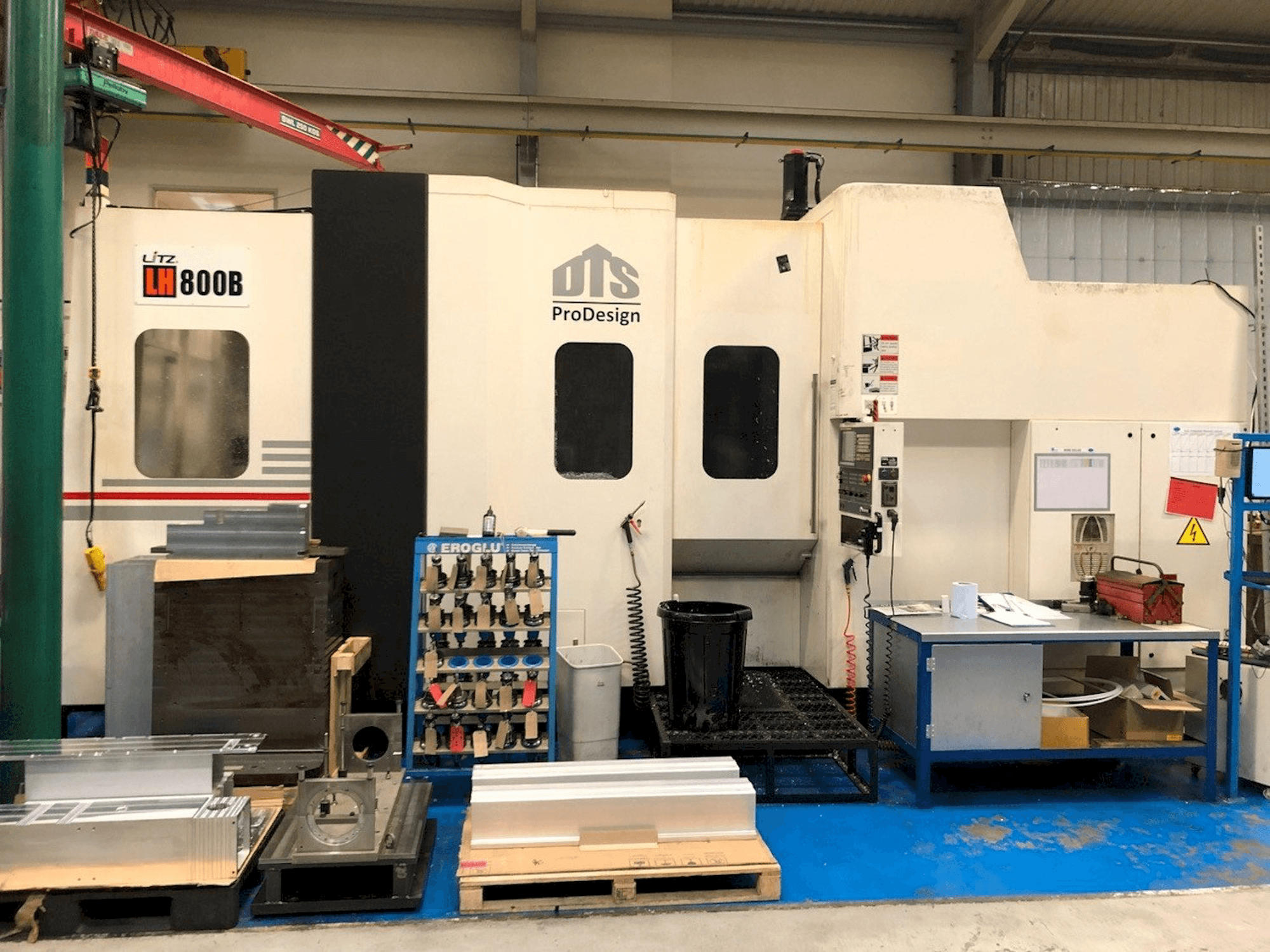

This Litz LH-800B Horizontal Machining Center was built in Taiwan in the year 2013. It has 11159 cutting hours. It is operated through a FANUC Series 31i-MODEL B series control unit . This machine perform with a spindle speed up to 8000 rpm. It presents very good conditions.

Overview

  • brand: Litz
  • year: 2013
  • MODEL: LH-800B
  • production hours: 11159
  • application type: Milling
  • Location: United Kingdom
  • machine type: Horizontal Machining Centre
  • control unit brand: FANUC

Technical Information - Litz LH-800B

Control Unit

  • Control Brand: FANUC
  • Control Model: Series 31i-Model B

Dimensions

  • Machine Depth: 4326 mm
  • Machine Height: 3948 mm
  • Machine Weight: 28000 kg
  • Table Length: 800 mm
  • Table Width: 800 mm

Movement

  • X-axis Travel: 1300 mm
  • Y-axis Travel: 1200 mm
  • Z-axis Travel: 1200 mm

Technical Specification

  • Number of Tools: 60
  • Spindle Speed: 8000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

  • Very good condition

Technical Machine Benefits

  • Coolant through spindle
  • Swarf conveyor
  • Full b axis 0. 001 deg
  • No. Of pallets 2
  • Spindle motor power 22/26 kw
  • Spindle center to pallet 135 - 1335 mm
  • Spindle nose to pallet center 200 - 1400 mm
  • Rapid feedrates 32m/min
  • Linear scales
  • Laser tool measurement/breakage detector

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
