Kitamura Mycenter H250 Horizontal Machining Center

Show in original language

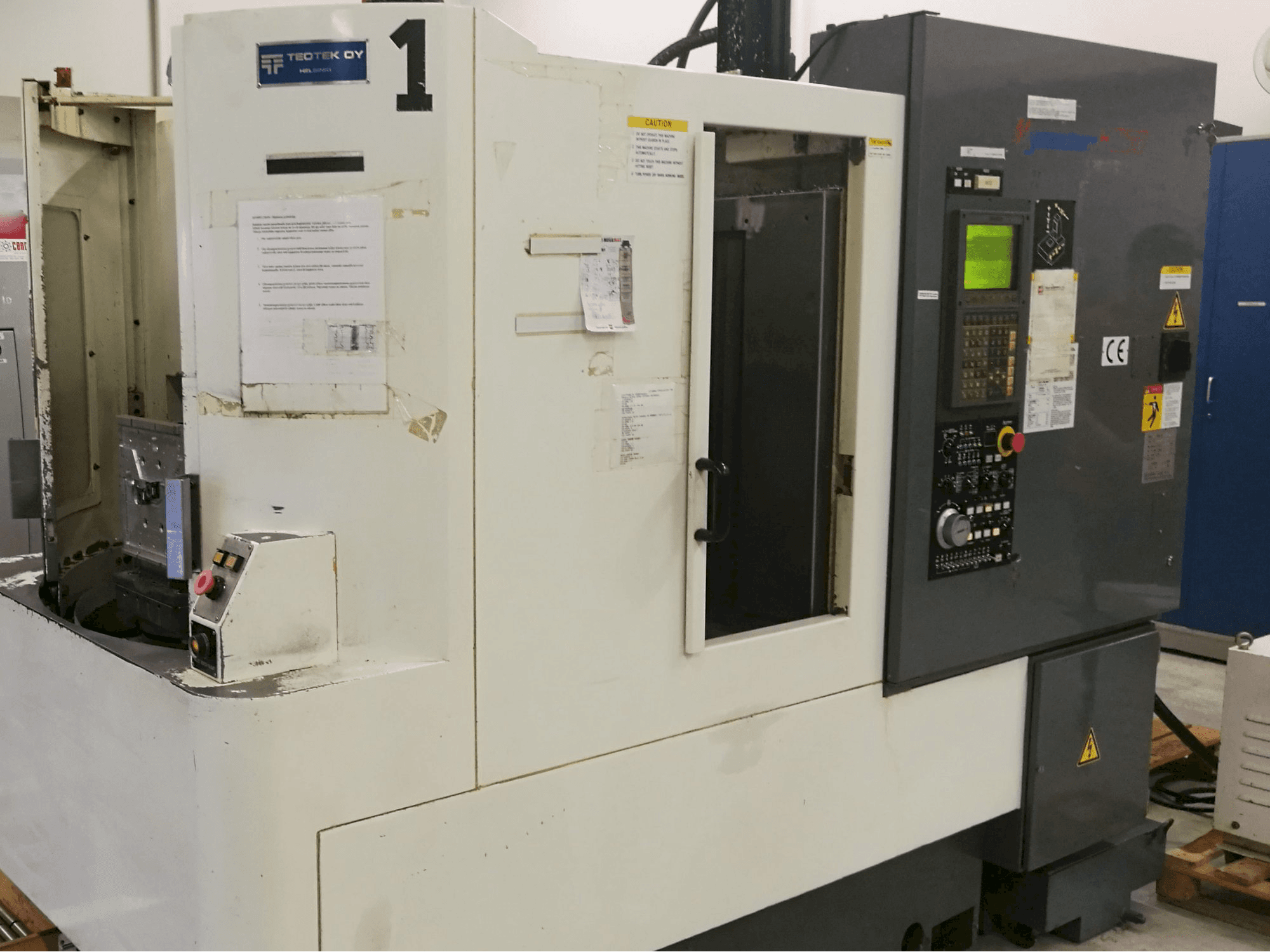

This Kitamura Mycenter H250 Horizontal Machining Center from 1997 was made in Japan and is controlled through a YASNAC i80M Control unit. During the past, this machine has mainly worked with aluminium, producing pieces for electrical network cabins.

Overview

brand: Kitamura
year: 1997
MODEL: Mycenter H250
application type: Milling
Location: Finland
machine type: Horizontal Machining Centre
availability: Sold

Technical Information - Kitamura Mycenter H250

General Data

Measurements width: 1550 mm
Measurements depth: 2850 mm
Measurements height: 2284 mm
Machine weight: 3250 kg

Control Unit

Model: i80M

Main drive

Number of spindles: 1
Spindle speed range: 8000 rpm 1/MIN
Spindle motor power: 3.7 kW

Movement

X-AXIS Movement: 305 mm
Y-AXIS Movement: 305 mm
Z-AXIS Movement: 330 mm
B-AXIS Movement: 360 mm

Table

Outer length: 254 mm
Outer width: 254 mm

Tools

Max weight: 2 kg
Max tool diameter: 50 mm
Max tool length: 20 mm

Media

Main electronic connection: 220 V
Power consumption: 8 kVA
Chip conveyor: Yes

Additional equipment

- Toolholders

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
