Hyundai Wia L200Y

Photo Gallery

Hyundai Wia - L200YPL-TUR-HYU-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Hyundai Wia L200Y Lathe

Show in original language

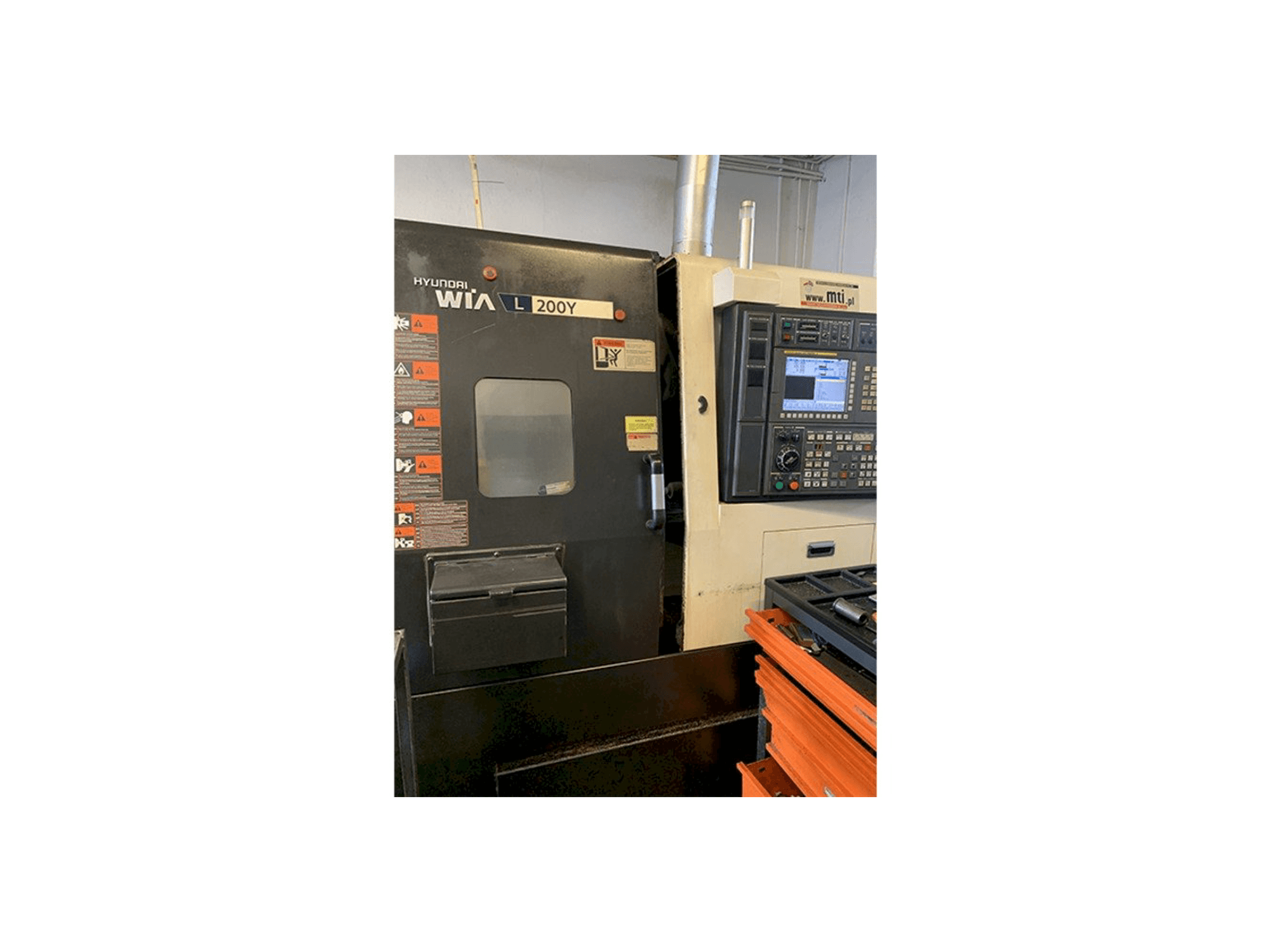

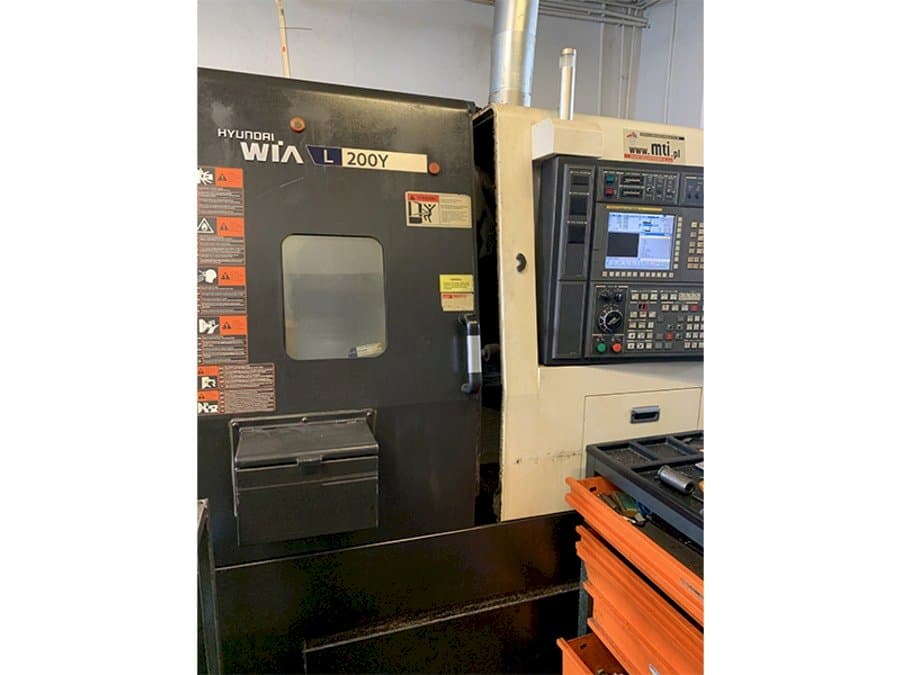

This Hyundai Wia L200Y Lathe was manufactured in the year 2013 in Korea. It is operated through a FANUC Series 32i-Model A control unit. This 4 axis machine works with a spindle speed up to 4000 rpm. This machine is in very good working condition and ready for tests.

Overview

brand: Hyundai Wia
year: 2013
MODEL: L200Y
application type: Turning
Location: Poland
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - Hyundai Wia L200Y

General Data

Measurements width: 3045 mm
Measurements depth: 1705 mm
Measurements height: 2020 mm
Machine weight: 4500 kg

Control Unit

Model: Series 32i-Model A
Brand: FANUC

Main drive

Spindle speed range: 4000 1/MIN
Number of axis: 4

Turret

Number of tool slots: 12 pcs

Media

Main electronic connection: 380V / 50Hz
Power consumption: 22 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Some standard and driven tools included
Machine in very good working condition, ready for tests

Technical Machine Benefits

Max. Turning dia. : 240 mm
Max. Turning length: 530 mm
Swing over the bed: 550 mm
Swing over the carriage: 350 mm
Max bar capacity dia. : 65 mm
Chuck: kitagawa 210 mm
Probe included
Tailstock included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

specyfikacja HYUNDAI WIA L200Y.pdf
