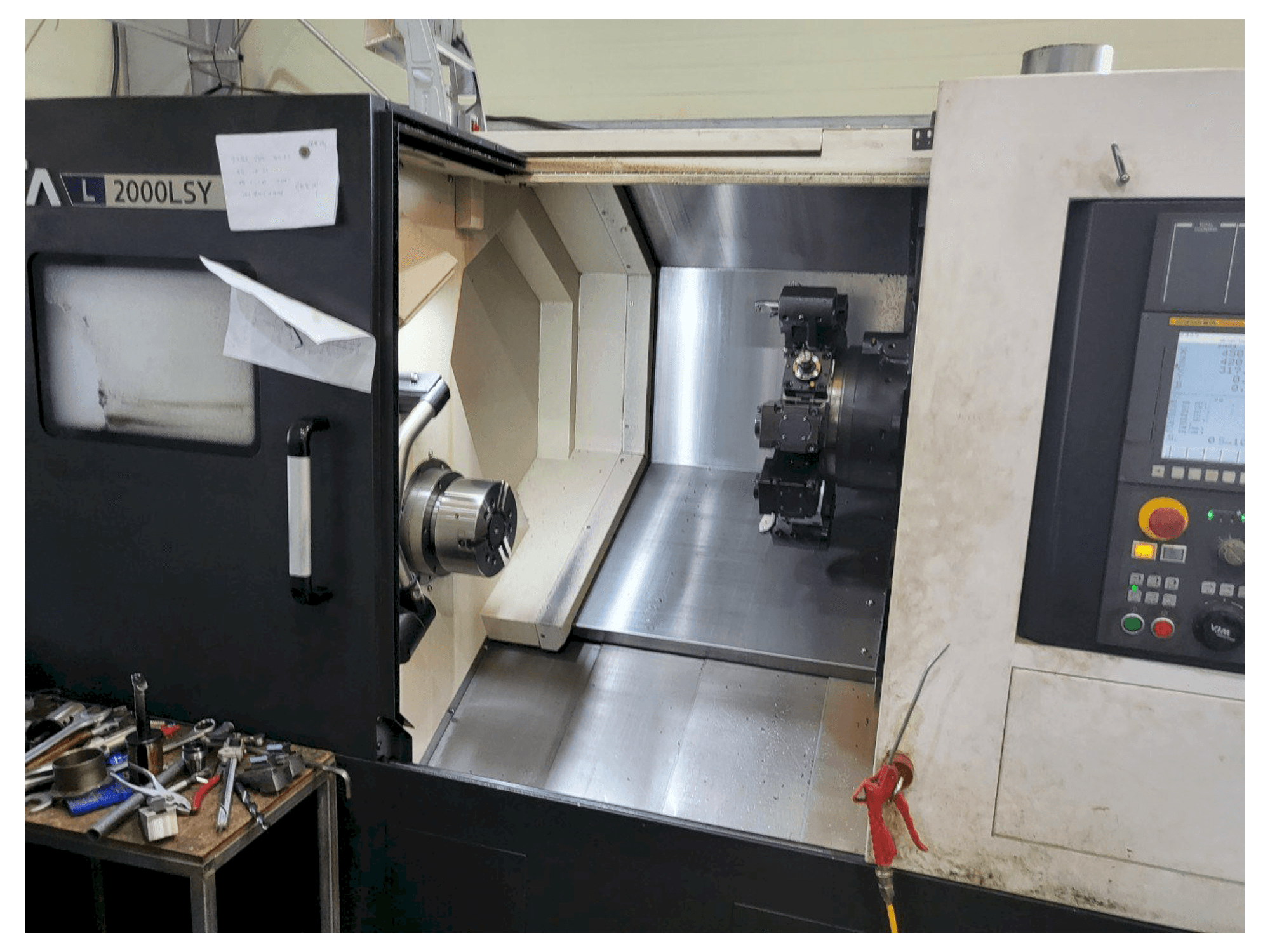

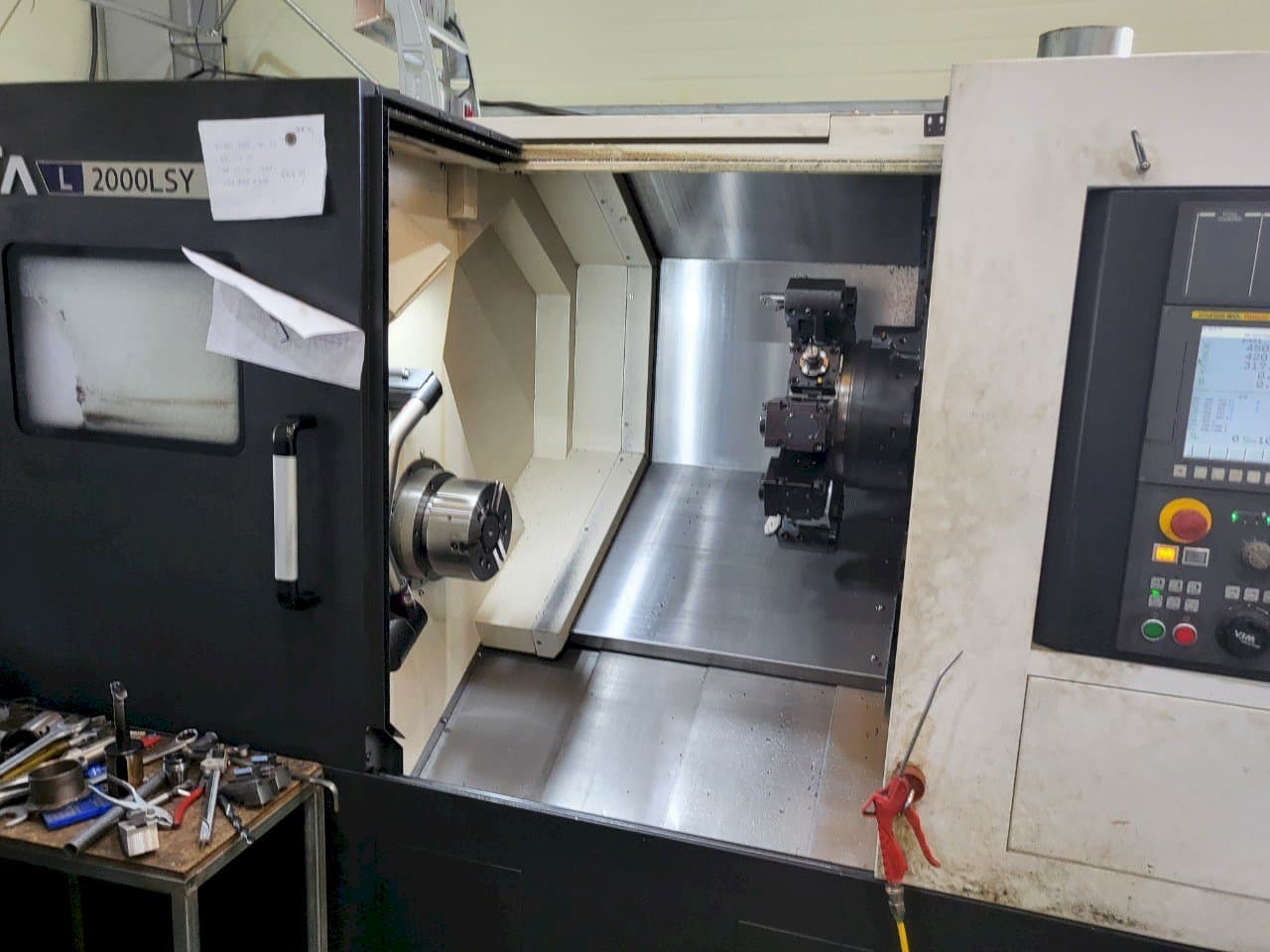

Front view of Hyundai Wia L2000LSY machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Hyundai Wia L2000LSY

Photo Gallery

Hyundai Wia - L2000LSYKR-TUR-HYU-2021-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Hyundai Wia L2000LSY Lathe

Show in original language

This Hyundai Wia L2000LSY Lathe machine was manufactured in the year 2021. This machine is operated by a FANUC i-Series control unit. It works with a main spindle speed up to 4000 rpm and sub spindle speed up to 5000 rpm. The machine also works with live tools 2 Angular and 2 Straight.

Overview

brand: Hyundai Wia
year: 2021
MODEL: L2000LSY
application type: Turning
Location: South Korea
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - Hyundai Wia L2000LSY

Control Unit

Model: i-Series
Brand: FANUC

Main drive

Spindle speed range: 4500 1/MIN

Movement

X-AXIS Movement: 265 mm
Y-AXIS Movement: 120 (±60) mm
Z-AXIS Movement: 830 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Zb axis : 830 mm
- - C1 & c2 axis : 0. 001 degree
- - Maximum turning length : 760 mm
- - Main bar capacity : 65 mm
- - Main chuck size : 8 inch
- - Sub chuck size : 6 inch
- - Turret capacity : 12ea (bmt65 type)
- - Live tools (2 angular, 2 straight)
- - Sub spindle rpm: 5000 rpm
- - Q-setter
Qualitative Machine Benefits:
- - Chip conveyer
- - Chip bucket
- - Call right (led 3 step)
- - Mpg handle
- - Manual books
- - Ce mark

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
