HOMAG - Optimat BHX200/DDE-CNC-HOM-2017-00002
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Wood Working
- ➤ Used HOMAG Optimat BHX200/D For Sale | gindumac.com

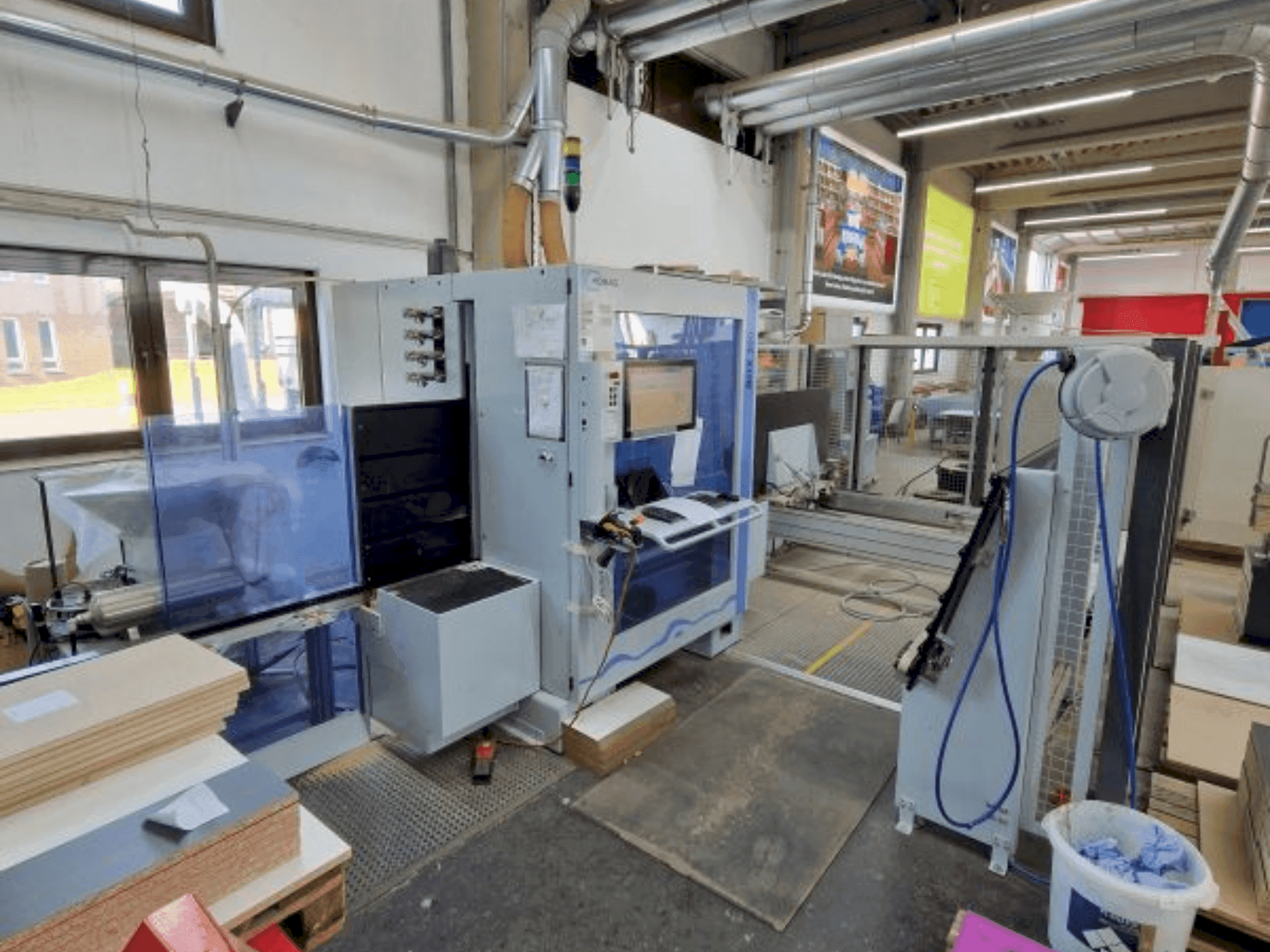

This 3-axis HOMAG Optimat BHX200/D was manufactured in 2017. It features a vertical CNC machining center with a maximum drilling depth of 38 mm and a tool change spindle that supports up to 24,000 rpm. The machine includes a 4-position pick-up changer for HSK63 tools and a dowel insertion station with a low-pressure glue pump. Ideal for detailed woodworking, it offers advanced control with Powercontrol and Woodwop software. Contact us for more information about this machine.
Overview
- brand: HOMAG
- year: 2017
- MODEL: Optimat BHX200/D
- application type: CNC Wood Machining
- Location: Germany
- machine type: CNC Processing Center
Technical Information - HOMAG Optimat BHX200/D
Movement
- Number of Axes: 3
Additional Information
Additional equipment
- Stop Cylinder: For workpiece positioning
- BHX 200 Workpiece Clamping System: 2 movable workpiece clamps
Machine Benefits
Technical Machine Benefits
- Workpiece length: 200 to 3050 mm
- Workpiece width: 50 to 1250 mm
- Workpiece thickness: 8 to 80 mm
Extra Information
Tools Drilling Gear V15 High Speed: Feed Stroke Z-direction: 60 mm Drilling Depth: Max. 38 mm Speed: 1500 - 1700 rpm, frequency-controlled Drive: 2.3 kW Horizontal Drilling Gear with 6 Spindles X-direction: 6 Drilling Spindles: 32 mm pitch, 3 each in X - direction Drilling Depth: Max. 38 mm Speed: 1500 - 1700 rpm, frequency-controlled Horizontal Drilling Gear with 4 Spindles Y-direction: 4 Drilling Spindles: 32 mm pitch, 2 each in Y - direction Drilling Depth: Max. 38 mm Speed: 1500 - 1700 rpm, frequency-controlled Vertical Fitting Drilling Gear, 3 Spindles: Number of Spindles: 3 Drilling Depth: Max. 38 mm Speed: Max 3000 rpm Automatic 90° Tilting Grooving Saw: Cutting Depth: 30 mm Speed: 1500 - 7500 rpm, frequency-controlled Dowel Insertion Station (White Glue): Includes dowel insertion tools, glue pump, flow monitors, cleaning brushes. Tool Change Spindle: Tool Holder: HSK63 Speed: 1500 - 24000 rpm, infinite programming Max Power at the Tool: Up to 10 kW 4-Position Pick-up Changer for HSK63: Magazine Positions: 4 tool positions Control Unit Powercontrol with Powertouch Powercontrol Software BHX 050-200 Woodwop
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
