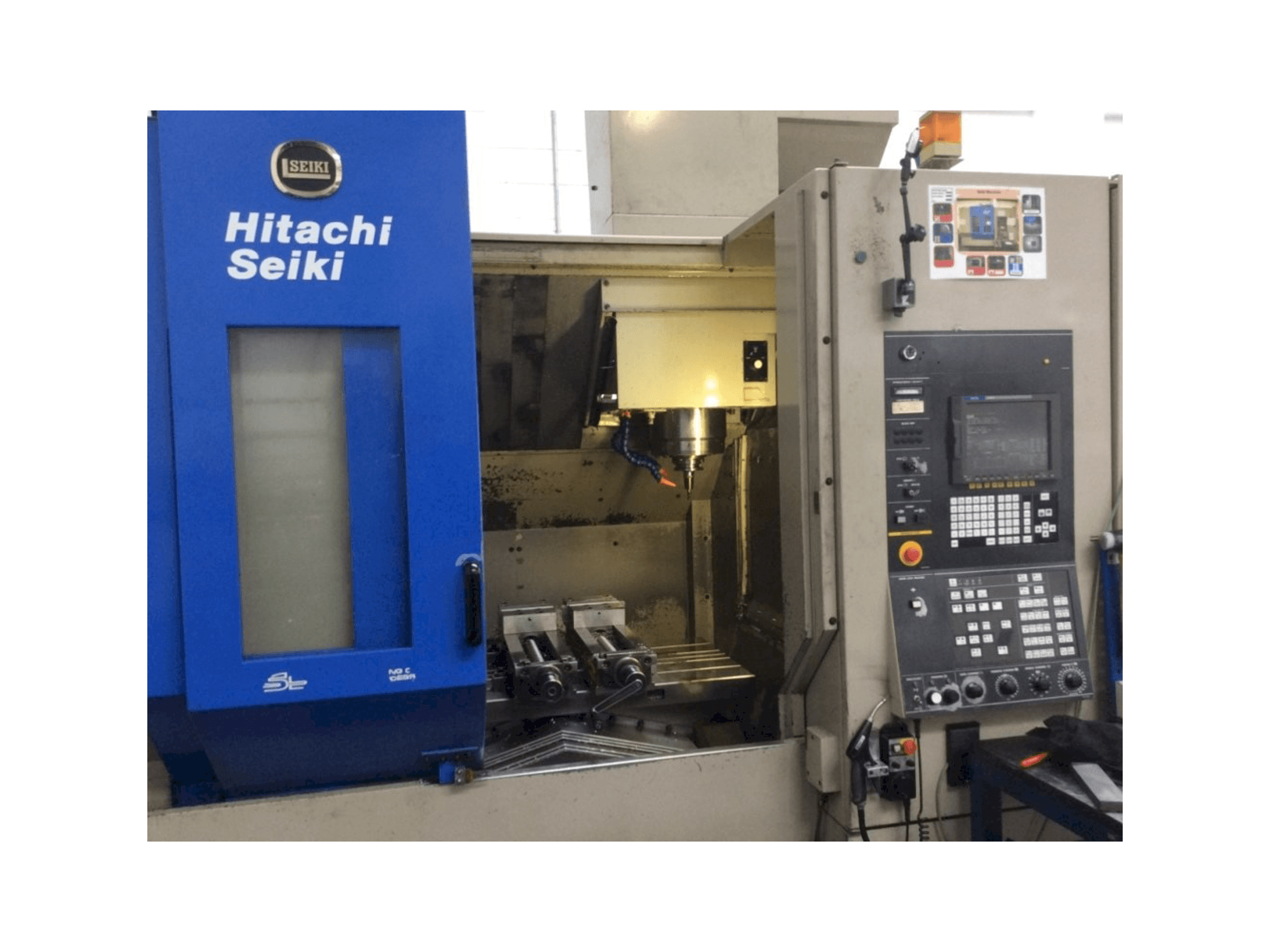

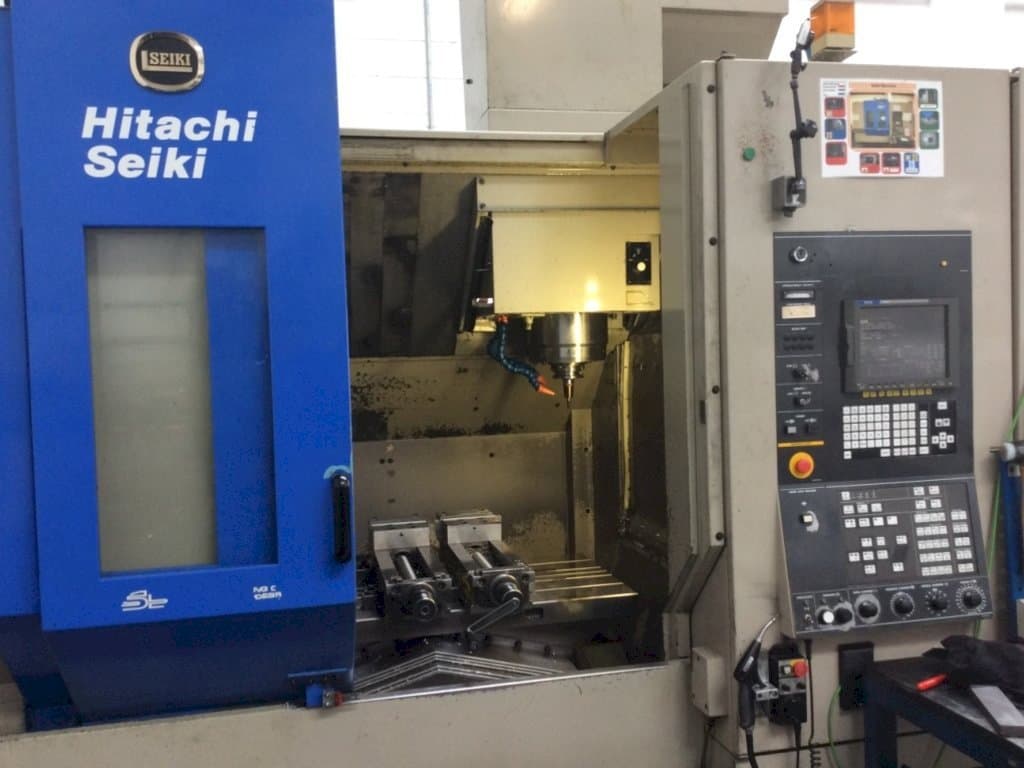

Front view of HITACHI SEIKI VS50 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HITACHI SEIKI VS50

Photo Gallery

HITACHI SEIKI - VS50IE-MIL-HIT-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
HITACHI SEIKI VS50 Vertical Machining Center

Show in original language

This HITACHI SEIKI VS50 Vertical Machining Center was made in Japan in 2001. It is operated through a Seicos E18M control unit. This model counts with a spindle speed of 10000 rpm. It includes a selection of fit tooling, a 70 bar high pressure coolant, a transformer and a chiller.

Overview

brand: HITACHI SEIKI
year: 2001
MODEL: VS50
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre

Technical Information - HITACHI SEIKI VS50

General Data

Measurements width: 3500 mm
Measurements depth: 3000 mm
Measurements height: 2800 mm
Machine weight: 8200 kg

Control Unit

Model: E18M
CNC main language: English
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 450 mm

Workpiece

Workpiece weight: 750 kg

Table

Outer length: 1120 mm
Outer width: 510 mm
Number of tslots: 4
Distance between: 18 mm

Tools

Slots in storage: 30
Max weight: 15 kg
Max tool diameter: 180 mm
Max tool length: 300 mm
Type of tool holder: ISO 50

Media

Main electronic connection: 415 V
Internal cooling: Yes

Additional Information

Additional equipment

Selection of haimer shrink fit tooling
Machine probe
70 bar high pressure coolant
Transformer
Chiller

Machine Benefits

Qualitative Machine Benefits

Annually serviced
Very good condition

Technical Machine Benefits

Very powerful machine

Machine History

Industries

Pharmaceutical

End product

Pharma parts

Material type

Mild steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
