FAMUP - MCP70 E IT-MIL-FAM-2001-00002

Rs. 1,439,281
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

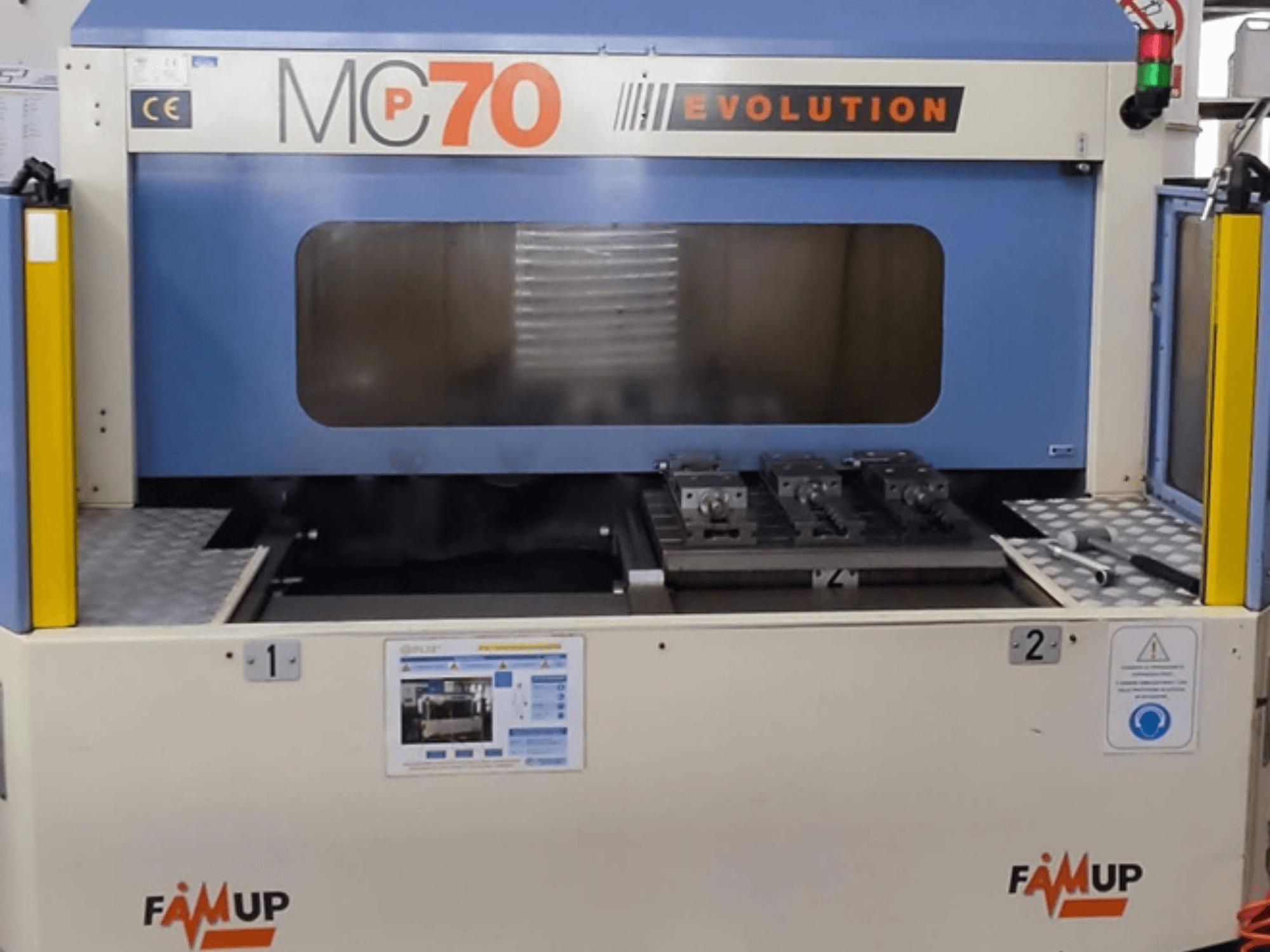

This 3-axis FAMUP MCP70 E was manufactured in 2001. It features an X-axis travel of 700 mm, Y-axis travel of 480 mm, and Z-axis travel of 640 mm. The machine includes a table size of 600 x 450 mm and a maximum table load of 300 kg. If you are looking to get high-quality machining capabilities, consider the FAMUP MCP70 E vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: FAMUP
  • year: 2001
  • MODEL: MCP70 E
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre
  • control unit brand: SIEMENS

Technical Information - FAMUP MCP70 E

Control Unit

  • Control Brand: SIEMENS
  • Control Model: Sinumerik 840D

Dimensions

  • Machine Height: 3260 mm
  • Machine Length: 3320 mm
  • Machine Weight: 5500 kg
  • Machine Width: 3360 mm
  • Table Load: 600 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 700 mm
  • Y-axis Travel: 480 mm
  • Z-axis Travel: 640 mm

Technical Specification

  • Max. Tool Weight: 6 kg
  • Spindle Power: 18.5 kW
  • Spindle Speed: 10000 RPM
  • Taper Size: ISO 40
  • Tool Stations: 30

Additional Information

  • Table / Pallet

    • Table size: 600 x 450 mm

    • T-slots: 5 x 14 x 80 mm

    • Central bore: Ø50 H6

    • Pallet change time: 9 sec

  • Axis performance

    • Working feedrate X/Y/Z: 10,000 mm/min

    • Rapid feedrate X/Y/Z: 30,000 mm/min

    • Working thrust S1 X/Y: 4,800 N

    • Working thrust S1 Z: 7,200 N

  • Measurement system

    • Indirect measuring system

  • Accuracy

    • Positioning accuracy X/Y/Z: ±5 µm

    • Repeatability X/Y/Z: ±1.5 µm

    • Reversal accuracy: 3 µm

  • Tool changer

    • Positions: 30

    • Selection: Bidirectional

    • Max. tool diameter: Ø75 mm

    • Max. tool length: 280 mm

    • Tool change time: 1.7 sec

    • Chip-to-chip time: 3.5 sec

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
