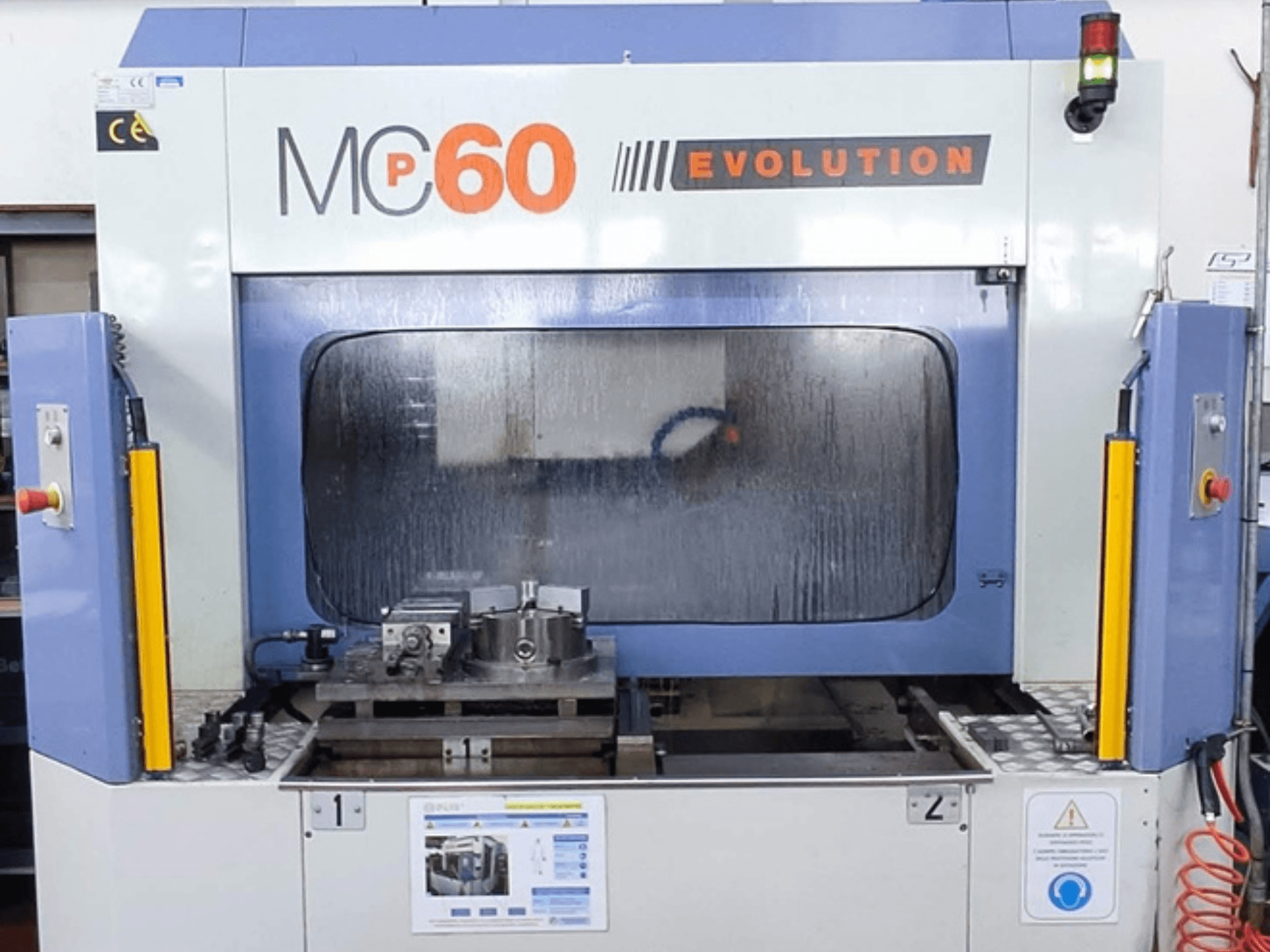

This 3-axis FAMUP MCP 60 E was manufactured in 2002. It features an X-axis travel of 600 mm, Y-axis travel of 400 mm, and Z-axis travel of 570 mm. The machine includes a table size of 500 x 450 mm and a maximum table load of 300 kg. If you are looking to get high-quality machining capabilities, consider the FAMUP MCP 60 E vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: FAMUP
- year: 2002
- MODEL: MCP 60 E
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - FAMUP MCP 60 E
Control Unit
- Control Brand: FANUC
Dimensions
- Machine Height: 2937 mm
- Machine Length: 3216 mm
- Machine Weight: 4100 kg
- Machine Width: 3090 mm
- Table Load: 300 kg
Movement
- Number of Axes: 3
- X-axis Travel: 600 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 570 mm
Technical Specification
- Max. Tool Weight: 6 kg
- Number of Tools: 24
- Spindle Power: 11 kW
- Spindle Speed: 10000 RPM
- Taper Size: ISO 40
Additional Information
Pallet/Table:
Table size: 500 x 450 mm
T-slots: 2 x 14 x 125 mm
Central bore: Ø50 H6
Pallet change time: 9 s
Axis performance:
Working feedrate X/Y/Z: 10,000 mm/min
Rapid feedrate X/Y/Z: 30,000 mm/min
Working thrust S1 X/Y: 3,300 N
Working thrust S1 Z: 7,200 N
Measurement system:
Indirect measuring system
Accuracy:
Positioning accuracy X/Y/Z: ±5 µm
Repeatability X/Y/Z: ±1.5 µm
Reversal accuracy: 3 µm
Tool changer:
Selection: Bidirectional
Max. tool diameter: Ø75 mm
Max. tool length: 250 mm
Tool change time: 1.7 s
Chip-to-chip time: 2.5 s
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
