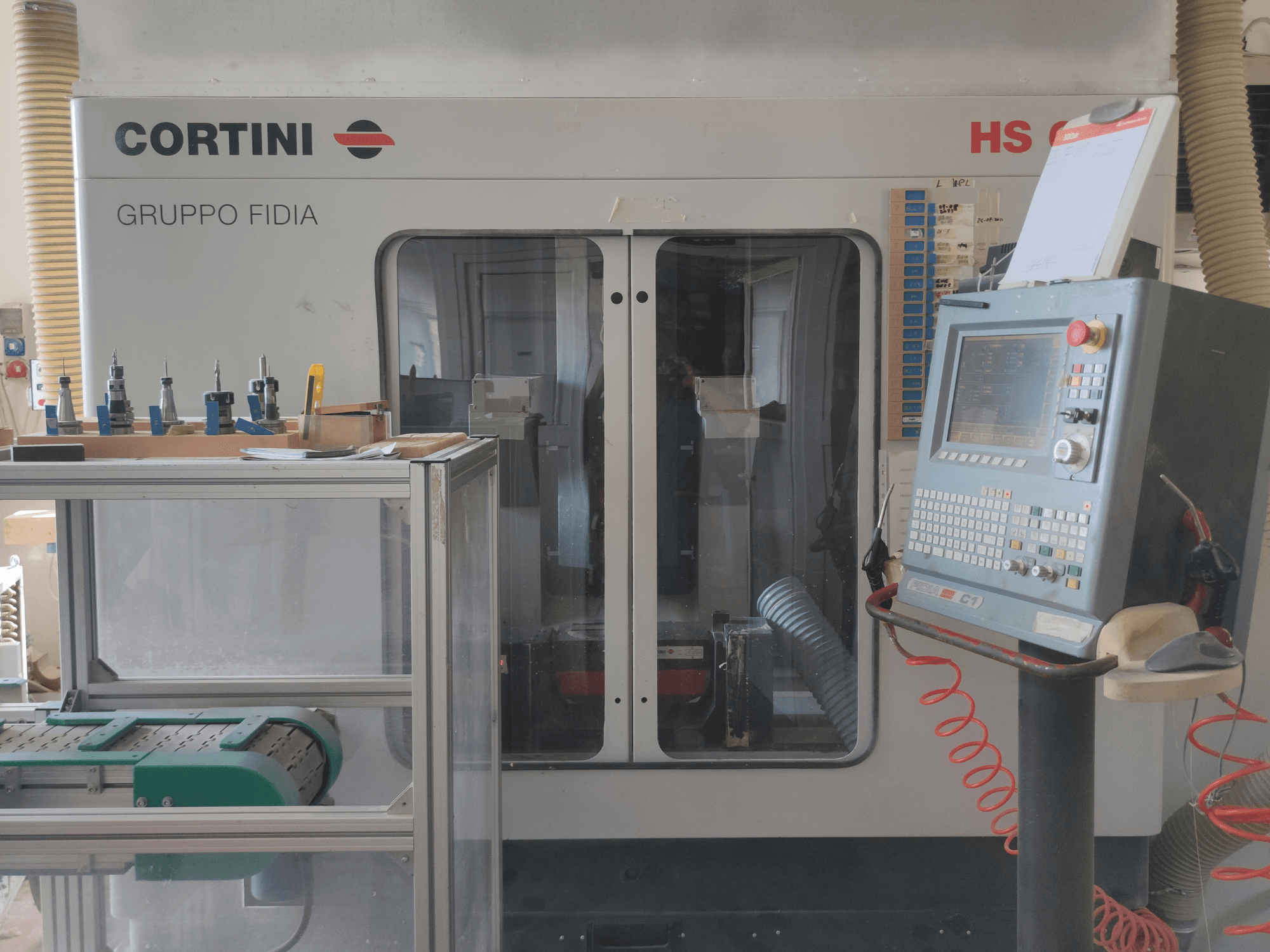

Fidia - CORTINI HS 644IT-MIL-FID-2001-00001

Accuracy:

• Positioning accuracy (ISO 230-2): 0.010 mm

Speeds:

• Max linear axis speed: 30 m/min

• Max acceleration: 3 m/s²

Table:

• Dimensions: 1000 x 500 mm

T-slots:

• Number: 4

• Width: 14 mm

• Pitch: 140 mm

Electrical supply:

• Standard: EN 60204-1

• Voltage: 400 V

• Frequency: 50/60 Hz

Pneumatic supply:

• Standard: PNEUROP 6611

• Pressure: 0.7 MPa ±10% (7 bar ±10%)

Footprint: 2150 x 2450 mm

Environmental conditions:

• Ambient temperature: 10–40 °C

• Relative humidity: 10–80% (non-condensing)
